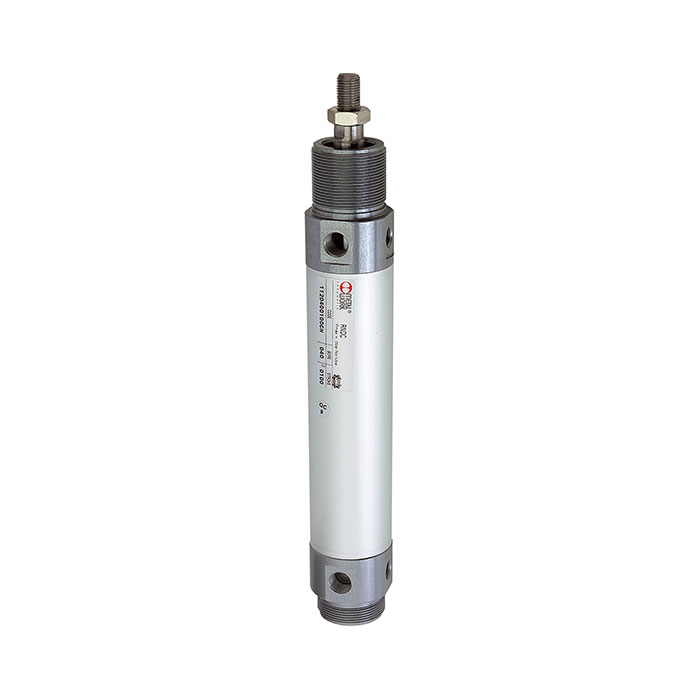

RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 25, G 1/4
Type number: 2.DM.40025
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round cylinder for automation technology, max. 10 bar, G 1/4 - Type 2.DM.40025
The RIEGLER round cylinder, double-acting, solenoid, piston Ø 40, stroke 25, G 1/4 offers compact pneumatic actuator solutions for confined installation spaces. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range extends between -10 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. With piston Ø 40 mm, stroke 25 mm, C45 steel piston rod, hard chrome-plated - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Working pressure max. | 10 bar |
| Pipe | Aluminum, anodized |
| Structure | Connection: stainless steel tube / end cap thread |
| Piston Ø | 40 mm |
| Function | double-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 25 mm |
| Piston rod thread | M12x1.25 |
| Connection | G 1/4 |
| Piston rod | C45 steel, hard chrome-plated |
| Piston | Technopolymer |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105861] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 100, G 1/4](/web/image/product.template/173808/image_128/%5B105861%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20100%2C%20G%201-4?unique=ae630f0)
|
Type number: 2.DM.40100 |
100.19 € | |
![[105862] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 125, G 1/4](/web/image/product.template/173809/image_128/%5B105862%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20125%2C%20G%201-4?unique=9bf8c91)
|
Type number: 2.DM.40125 |
103.52 € | |
![[105863] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 160, G 1/4](/web/image/product.template/173810/image_128/%5B105863%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20160%2C%20G%201-4?unique=165d699)
|
Type number: 2.DM.40160 |
107.93 € | |
![[105864] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 200, G 1/4](/web/image/product.template/173811/image_128/%5B105864%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20200%2C%20G%201-4?unique=53c75a6)
|
Type number: 2.DM.40200 |
112.43 € | |
![[105865] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 250, G 1/4](/web/image/product.template/173812/image_128/%5B105865%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20250%2C%20G%201-4?unique=be91673)
|
Type number: 2.DM.40250 |
117.91 € | |
![[105866] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 320, G 1/4](/web/image/product.template/173813/image_128/%5B105866%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20320%2C%20G%201-4?unique=773d382)
|
Type number: 2.DM.40320 |
126.85 € | |
![[105867] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 400, G 1/4](/web/image/product.template/173814/image_128/%5B105867%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20400%2C%20G%201-4?unique=d1a9e3b)
|
Type number: 2.DM.40400 |
137.94 € | |
![[105868] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 500, G 1/4](/web/image/product.template/173815/image_128/%5B105868%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20500%2C%20G%201-4?unique=2e9a930)
|
Type number: 2.DM.40500 |
146.82 € | |
![[105859] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 50, G 1/4](/web/image/product.template/173806/image_128/%5B105859%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2050%2C%20G%201-4?unique=657cde2)
|
Type number: 2.DM.40050 |
94.61 € | |
![[105860] RIEGLER Round cylinder, double-acting, Piston Ø 40, Stroke 80, G 1/4](/web/image/product.template/173807/image_128/%5B105860%5D%20RIEGLER%20Round%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2080%2C%20G%201-4?unique=53e0a24)
|
Type number: 2.DM.40080 |
97.94 € | |
