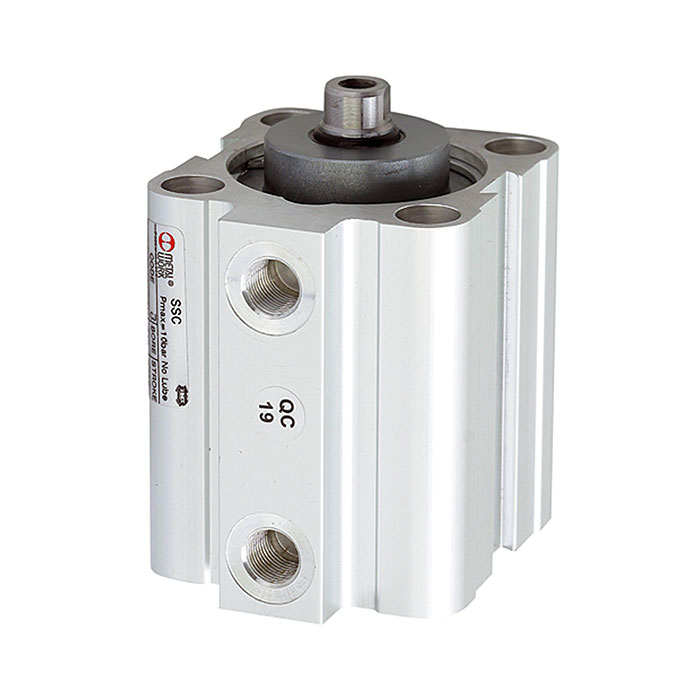

RIEGLER Short stroke cylinder double-acting, Piston Ø 50, Stroke 5, G 1/8
Type number: 3.DM.50005
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Short-stroke cylinder, double-acting, with solenoid, piston Ø 50, stroke 5, G 1/8, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 50 mm |
| Function | double-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 5 mm |
| Piston rods IG | M8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Aluminum |
| Piston | Acetal synthetic resin |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105951] RIEGLER Short stroke cyl. double-acting, Piston Ø 80, Stroke 100, G 1/4](/web/image/product.template/173898/image_128/%5B105951%5D%20RIEGLER%20Short%20stroke%20cyl.%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20100%2C%20G%201-4?unique=6d9b5db)
|
Type number: 3.DM.80100 |
195.86 € | |
![[105897] RIEGLER Short stroke cylinder, double-acting, Piston Ø 12, Stroke 10, M5](/web/image/product.template/173844/image_128/%5B105897%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2010%2C%20M5?unique=d454139)
|
Type number: 3.DM.12010 |
59.06 € | |
![[105898] RIEGLER Short stroke cylinder, double-acting, Piston Ø 12, Stroke 25, M5](/web/image/product.template/173845/image_128/%5B105898%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2025%2C%20M5?unique=c68e454)
|
Type number: 3.DM.12025 |
58.93 € | |
![[105899] RIEGLER Short stroke cylinder, double-acting, Piston Ø 12, Stroke 30, M5](/web/image/product.template/173846/image_128/%5B105899%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2030%2C%20M5?unique=8ca610b)
|
Type number: 3.DM.12030 |
59.12 € | |
![[105900] RIEGLER Short stroke cylinder, double-acting, Piston Ø 12, Stroke 40, M5](/web/image/product.template/173847/image_128/%5B105900%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%2040%2C%20M5?unique=4eec7a7)
|
Type number: 3.DM.12040 |
59.58 € | |
![[105896] RIEGLER Short stroke cylinder, double-acting, Piston Ø 12, Stroke 5, M5](/web/image/product.template/173843/image_128/%5B105896%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2012%2C%20Stroke%205%2C%20M5?unique=2b5556f)
|
Type number: 3.DM.12005 |
58.80 € | |
![[105902] RIEGLER Short stroke cylinder, double-acting, Piston Ø 16, Stroke 10, M5](/web/image/product.template/173849/image_128/%5B105902%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2010%2C%20M5?unique=2cb232d)
|
Type number: 3.DM.16010 |
60.54 € | |
![[105903] RIEGLER Short stroke cylinder, double-acting, Piston Ø 16, Stroke 25, M5](/web/image/product.template/173850/image_128/%5B105903%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2025%2C%20M5?unique=d105387)
|
Type number: 3.DM.16025 |
60.44 € | |
![[105904] RIEGLER Short stroke cylinder, double-acting, Piston Ø 16, Stroke 30, M5](/web/image/product.template/173851/image_128/%5B105904%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2030%2C%20M5?unique=543986c)
|
Type number: 3.DM.16030 |
60.77 € | |
![[105905] RIEGLER Short stroke cylinder, double-acting, Piston Ø 16, Stroke 40, M5](/web/image/product.template/173852/image_128/%5B105905%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%2040%2C%20M5?unique=56bd44e)
|
Type number: 3.DM.16040 |
61.27 € | |
![[105901] RIEGLER Short stroke cylinder, double-acting, Piston Ø 16, Stroke 5, M5](/web/image/product.template/173848/image_128/%5B105901%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2016%2C%20Stroke%205%2C%20M5?unique=ed5d0a6)
|
Type number: 3.DM.16005 |
59.52 € | |
![[105907] RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 10, M5](/web/image/product.template/173854/image_128/%5B105907%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2010%2C%20M5?unique=4224d46)
|
Type number: 3.DM.20010 |
62.65 € | |
![[105908] RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 25, M5](/web/image/product.template/173855/image_128/%5B105908%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2025%2C%20M5?unique=640124e)
|
Type number: 3.DM.20025 |
63.55 € | |
![[105909] RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 30, M5](/web/image/product.template/173856/image_128/%5B105909%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2030%2C%20M5?unique=0349940)
|
Type number: 3.DM.20030 |
63.87 € | |
![[105910] RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 40, M5](/web/image/product.template/173857/image_128/%5B105910%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2040%2C%20M5?unique=1d4a859)
|
Type number: 3.DM.20040 |
64.39 € | |
![[105911] RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 50, M5](/web/image/product.template/173858/image_128/%5B105911%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%2050%2C%20M5?unique=677df08)
|
Type number: 3.DM.20050 |
65.89 € | |
![[105906] RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 5, M5](/web/image/product.template/173853/image_128/%5B105906%5D%20RIEGLER%20Short%20stroke%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2020%2C%20Stroke%205%2C%20M5?unique=8bf06d4)
|
Type number: 3.DM.20005 |
62.65 € | |
![[105913] RIEGLER Short stroke cylinder double-acting, PistonØ 25, Stroke 10, G 1/8](/web/image/product.template/173860/image_128/%5B105913%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2010%2C%20G%201-8?unique=0946cce)
|
Type number: 3.DM.25010 |
66.68 € | |
![[105914] RIEGLER Short stroke cylinder double-acting, PistonØ 25, Stroke 25, G 1/8](/web/image/product.template/173861/image_128/%5B105914%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2025%2C%20G%201-8?unique=186b9a0)
|
Type number: 3.DM.25025 |
66.91 € | |
![[105915] RIEGLER Short stroke cylinder double-acting, PistonØ 25, Stroke 30, G 1/8](/web/image/product.template/173862/image_128/%5B105915%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2030%2C%20G%201-8?unique=a06d952)
|
Type number: 3.DM.25030 |
68.26 € | |
![[105916] RIEGLER Short stroke cylinder double-acting, PistonØ 25, Stroke 40, G 1/8](/web/image/product.template/173863/image_128/%5B105916%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2040%2C%20G%201-8?unique=8289cd9)
|
Type number: 3.DM.25040 |
68.10 € | |
![[105917] RIEGLER Short stroke cylinder double-acting, PistonØ 25, Stroke 50, G 1/8](/web/image/product.template/173864/image_128/%5B105917%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2025%2C%20Stroke%2050%2C%20G%201-8?unique=30721c6)
|
Type number: 3.DM.25050 |
69.82 € | |
![[105912] RIEGLER Short stroke cylinder double-acting, Piston Ø 25, Stroke 5, G 1/8](/web/image/product.template/173859/image_128/%5B105912%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%20%C3%98%2025%2C%20Stroke%205%2C%20G%201-8?unique=b1781ac)
|
Type number: 3.DM.25005 |
66.68 € | |
![[105919] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 10, G 1/8](/web/image/product.template/173866/image_128/%5B105919%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=548c26c)
|
Type number: 3.DM.32010 |
72.51 € | |
![[105920] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 25, G 1/8](/web/image/product.template/173867/image_128/%5B105920%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=cd8db20)
|
Type number: 3.DM.32025 |
73.92 € | |
![[105921] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 30, G 1/8](/web/image/product.template/173868/image_128/%5B105921%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2030%2C%20G%201-8?unique=461dc79)
|
Type number: 3.DM.32030 |
73.34 € | |
![[105922] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 40, G 1/8](/web/image/product.template/173869/image_128/%5B105922%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2040%2C%20G%201-8?unique=6b33c09)
|
Type number: 3.DM.32040 |
74.32 € | |
![[105923] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 50, G 1/8](/web/image/product.template/173870/image_128/%5B105923%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2050%2C%20G%201-8?unique=5765346)
|
Type number: 3.DM.32050 |
75.23 € | |
![[105918] RIEGLER Short stroke cylinder double-acting, Piston Ø 32, Stroke 5, G 1/8](/web/image/product.template/173865/image_128/%5B105918%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%205%2C%20G%201-8?unique=3941d87)
|
Type number: 3.DM.32005 |
72.02 € | |
![[105925] RIEGLER Short stroke cylinder double-acting, PistonØ 40, Stroke 10, G 1/8](/web/image/product.template/173872/image_128/%5B105925%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2010%2C%20G%201-8?unique=91bcec0)
|
Type number: 3.DM.40010 |
75.04 € | |
![[105926] RIEGLER Short stroke cylinder double-acting, PistonØ 40, Stroke 25, G 1/8](/web/image/product.template/173873/image_128/%5B105926%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2025%2C%20G%201-8?unique=c18aba4)
|
Type number: 3.DM.40025 |
77.87 € | |
![[105927] RIEGLER Short stroke cylinder double-acting, PistonØ 40, Stroke 30, G 1/8](/web/image/product.template/173874/image_128/%5B105927%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2030%2C%20G%201-8?unique=36cb4ae)
|
Type number: 3.DM.40030 |
77.37 € | |
![[105928] RIEGLER Short stroke cylinder double-acting, PistonØ 40, Stroke 40, G 1/8](/web/image/product.template/173875/image_128/%5B105928%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2040%2C%20G%201-8?unique=f9c1969)
|
Type number: 3.DM.40040 |
79.59 € | |
![[105929] RIEGLER Short stroke cylinder double-acting, PistonØ 40, Stroke 50, G 1/8](/web/image/product.template/173876/image_128/%5B105929%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2050%2C%20G%201-8?unique=1265880)
|
Type number: 3.DM.40050 |
80.75 € | |
![[105924] RIEGLER Short stroke cylinder double-acting, Piston Ø 40, Stroke 5, G 1/8](/web/image/product.template/173871/image_128/%5B105924%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%205%2C%20G%201-8?unique=96c08e6)
|
Type number: 3.DM.40005 |
75.51 € | |
![[105931] RIEGLER Short stroke cylinder double-acting, PistonØ 50, Stroke 10, G 1/8](/web/image/product.template/173878/image_128/%5B105931%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2050%2C%20Stroke%2010%2C%20G%201-8?unique=0ff8d4e)
|
Type number: 3.DM.50010 |
87.47 € | |
![[105932] RIEGLER Short stroke cylinder double-acting, PistonØ 50, Stroke 25, G 1/8](/web/image/product.template/173879/image_128/%5B105932%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2050%2C%20Stroke%2025%2C%20G%201-8?unique=a0deb43)
|
Type number: 3.DM.50025 |
89.67 € | |
![[105933] RIEGLER Short stroke cylinder double-acting, PistonØ 50, Stroke 30, G 1/8](/web/image/product.template/173880/image_128/%5B105933%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2050%2C%20Stroke%2030%2C%20G%201-8?unique=2e0135a)
|
Type number: 3.DM.50030 |
90.43 € | |
![[105934] RIEGLER Short stroke cylinder double-acting, PistonØ 50, Stroke 40, G 1/8](/web/image/product.template/173881/image_128/%5B105934%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2050%2C%20Stroke%2040%2C%20G%201-8?unique=f232616)
|
Type number: 3.DM.50040 |
91.88 € | |
![[105935] RIEGLER Short stroke cylinder double-acting, PistonØ 50, Stroke 50, G 1/8](/web/image/product.template/173882/image_128/%5B105935%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2050%2C%20Stroke%2050%2C%20G%201-8?unique=8f750be)
|
Type number: 3.DM.50050 |
93.36 € | |
![[105936] RIEGLER Short stroke cylinder double-acting, PistonØ 50, Stroke 70, G 1/8](/web/image/product.template/173883/image_128/%5B105936%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2050%2C%20Stroke%2070%2C%20G%201-8?unique=d131faa)
|
Type number: 3.DM.50070 |
97.12 € | |
![[105938] RIEGLER Short stroke cylinder double-acting, PistonØ 63, Stroke 10, G 1/8](/web/image/product.template/173885/image_128/%5B105938%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2010%2C%20G%201-8?unique=fb396b8)
|
Type number: 3.DM.63010 |
107.29 € | |
![[105939] RIEGLER Short stroke cylinder double-acting, PistonØ 63, Stroke 25, G 1/8](/web/image/product.template/173886/image_128/%5B105939%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2025%2C%20G%201-8?unique=34146d6)
|
Type number: 3.DM.63025 |
108.81 € | |
![[105940] RIEGLER Short stroke cylinder double-acting, PistonØ 63, Stroke 30, G 1/8](/web/image/product.template/173887/image_128/%5B105940%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2030%2C%20G%201-8?unique=20b6988)
|
Type number: 3.DM.63030 |
111.35 € | |
![[105941] RIEGLER Short stroke cylinder double-acting, PistonØ 63, Stroke 40, G 1/8](/web/image/product.template/173888/image_128/%5B105941%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2040%2C%20G%201-8?unique=b558570)
|
Type number: 3.DM.63040 |
111.85 € | |
![[105942] RIEGLER Short stroke cylinder double-acting, PistonØ 63, Stroke 50, G 1/8](/web/image/product.template/173889/image_128/%5B105942%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2050%2C%20G%201-8?unique=9ee5a57)
|
Type number: 3.DM.63050 |
115.43 € | |
![[105937] RIEGLER Short stroke cylinder double-acting, Piston Ø 63, Stroke 5, G 1/8](/web/image/product.template/173884/image_128/%5B105937%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%205%2C%20G%201-8?unique=37788ac)
|
Type number: 3.DM.63005 |
107.29 € | |
![[105943] RIEGLER Short stroke cylinder double-acting, PistonØ 63, Stroke 70, G 1/8](/web/image/product.template/173890/image_128/%5B105943%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2063%2C%20Stroke%2070%2C%20G%201-8?unique=bbf7992)
|
Type number: 3.DM.63070 |
120.51 € | |
![[105945] RIEGLER Short stroke cylinder double-acting, PistonØ 80, Stroke 10, G 1/4](/web/image/product.template/173892/image_128/%5B105945%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2080%2C%20Stroke%2010%2C%20G%201-4?unique=a04c6c8)
|
Type number: 3.DM.80010 |
165.53 € | |
![[105946] RIEGLER Short stroke cylinder double-acting, PistonØ 80, Stroke 25, G 1/4](/web/image/product.template/173893/image_128/%5B105946%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2080%2C%20Stroke%2025%2C%20G%201-4?unique=cdc6460)
|
Type number: 3.DM.80025 |
172.60 € | |
![[105947] RIEGLER Short stroke cylinder double-acting, PistonØ 80, Stroke 30, G 1/4](/web/image/product.template/173894/image_128/%5B105947%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2080%2C%20Stroke%2030%2C%20G%201-4?unique=d1cfb01)
|
Type number: 3.DM.80030 |
174.14 € | |
![[105948] RIEGLER Short stroke cylinder double-acting, PistonØ 80, Stroke 40, G 1/4](/web/image/product.template/173895/image_128/%5B105948%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2080%2C%20Stroke%2040%2C%20G%201-4?unique=f538d92)
|
Type number: 3.DM.80040 |
177.26 € | |
![[105949] RIEGLER Short stroke cylinder double-acting, PistonØ 80, Stroke 50, G 1/4](/web/image/product.template/173896/image_128/%5B105949%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2080%2C%20Stroke%2050%2C%20G%201-4?unique=7ca51e1)
|
Type number: 3.DM.80050 |
177.86 € | |
![[105944] RIEGLER Short stroke cylinder double-acting, Piston Ø 80, Stroke 5, G 1/4](/web/image/product.template/173891/image_128/%5B105944%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%205%2C%20G%201-4?unique=c3609ba)
|
Type number: 3.DM.80005 |
164.02 € | |
![[105950] RIEGLER Short stroke cylinder double-acting, PistonØ 80, Stroke 70, G 1/4](/web/image/product.template/173897/image_128/%5B105950%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2080%2C%20Stroke%2070%2C%20G%201-4?unique=c533f55)
|
Type number: 3.DM.80070 |
185.50 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

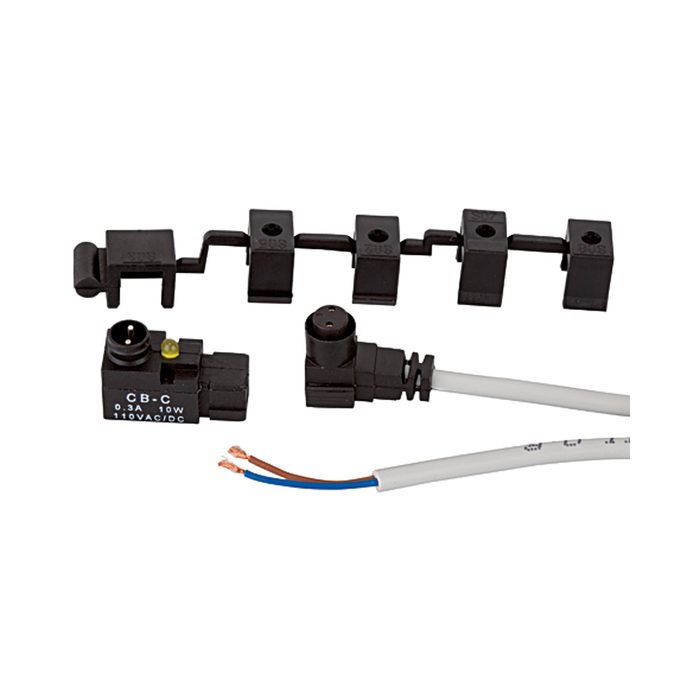

![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=e136ea1)
|
Type number: 435.779-M |
36.28 € | |

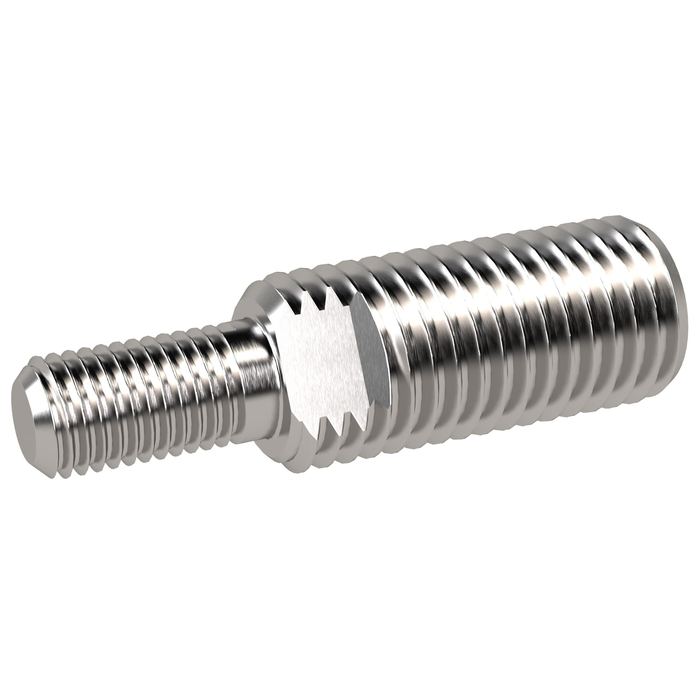

![[145364] RIEGLER Threaded nipple M16x1.5, for piston rod internal thread M8, piston Ø 50/63 mm](/web/image/product.template/279175/image_128/%5B145364%5D%20RIEGLER%20Threaded%20nipple%20M16x1.5%2C%20for%20piston%20rod%20internal%20thread%20M8%2C%20piston%20%C3%98%2050-63%20mm?unique=e7eaa13)
|
Type number: 219005000 |
7.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

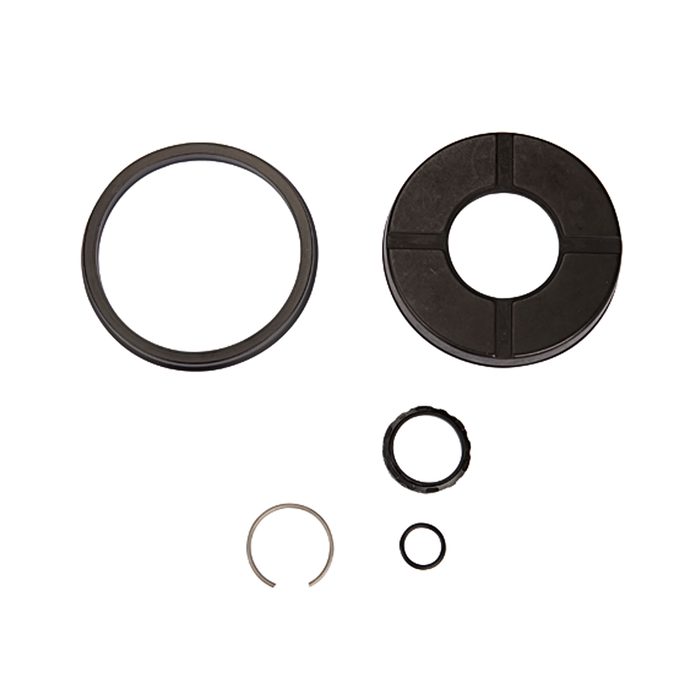

![[129890] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 50, NBR seal](/web/image/product.template/273102/image_128/%5B129890%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2050%2C%20NBR%20seal?unique=01ad512)
|
