RIEGLER Short stroke cylinder double-acting, PistonØ 80, Stroke 40, G 1/4
Type number: 3.DM.80040
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Short-stroke cylinder, double-acting, with solenoid, piston Ø 80, stroke 40, G 1/4, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 80 mm |
| Function | double-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 40 mm |
| Piston rods IG | M10 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Aluminum |
| Piston | Aluminum/PTFE |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=6a542fd)
|
Type number: 435.779-M |
35.80 € | |

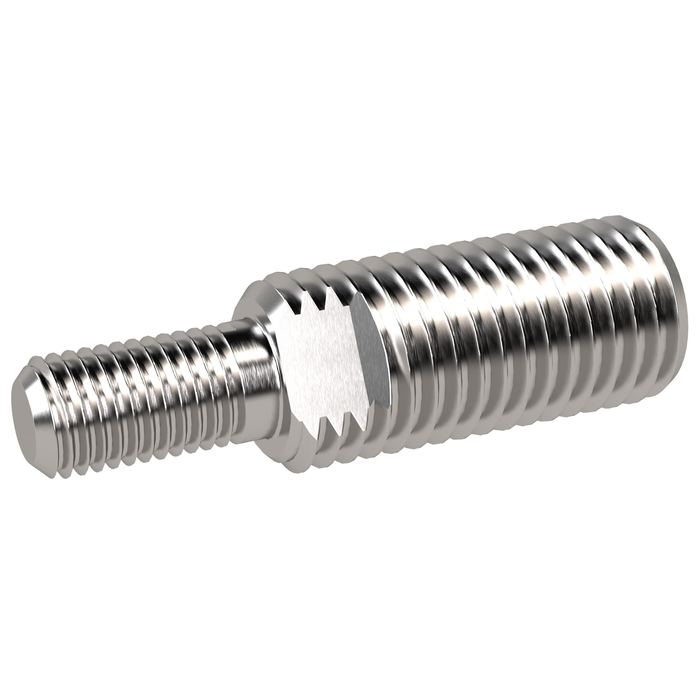

![[145365] RIEGLER Threaded nipple M20x1.5, for piston rod internal thread M10, piston Ø 80 mm](/web/image/product.template/279176/image_128/%5B145365%5D%20RIEGLER%20Threaded%20nipple%20M20x1.5%2C%20for%20piston%20rod%20internal%20thread%20M10%2C%20piston%20%C3%98%2080%20mm?unique=62ac842)
|
