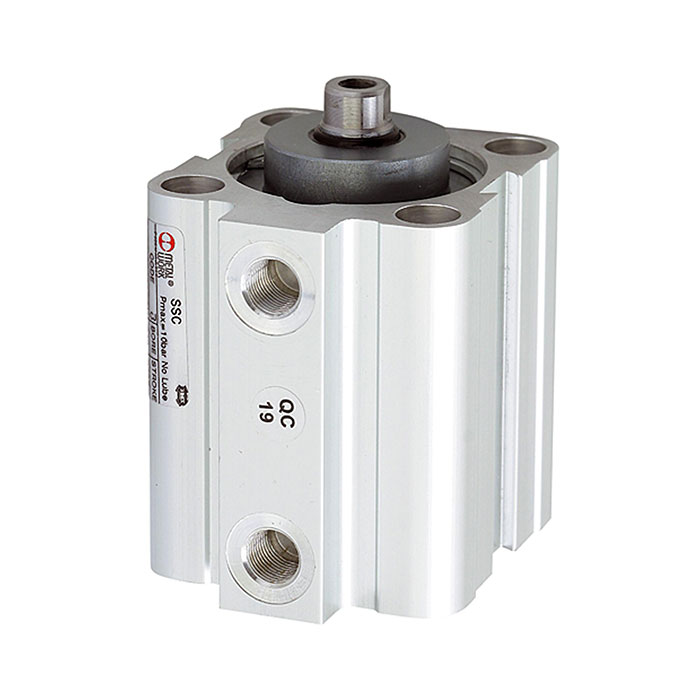

RIEGLER Short stroke cylinder single-acting, PistonØ 40, Stroke 10, G 1/8
Type number: 3.EMF.40010
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Short-stroke cylinder for automation technology, max. 10 bar, G 1/8 - Type 3.EMF.40010
The RIEGLER short-stroke cylinder, single-acting, solenoid, piston Ø 40, stroke 10, G 1/8 offers compact pneumatic actuator solutions for confined installation spaces. Designed for a maximum operating pressure of 10 bar. The temperature range extends between -10 °C and 80 °C. Connection thread G 1/8 - suitable for common industry standards. With piston Ø 40 mm, stroke 10 mm, C45 steel piston rod, hard chrome-plated - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 40 mm |
| Function | single-acting |
| Response pressure min. | 0.4 bar |
| Stroke | 10 mm |
| Piston rods IG | M6 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Aluminum |
| Piston | Acetal synthetic resin |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105963] RIEGLER Short stroke cylinder single-acting, PistonØ 40, Stroke 25, G 1/8](/web/image/product.template/173910/image_128/%5B105963%5D%20RIEGLER%20Short%20stroke%20cylinder%20single-acting%2C%20Piston%C3%98%2040%2C%20Stroke%2025%2C%20G%201-8?unique=5becf00)
|
Type number: 3.EMF.40025 |
70.04 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=d8db13a)
|
Type number: 435.779-M |
36.28 € | |

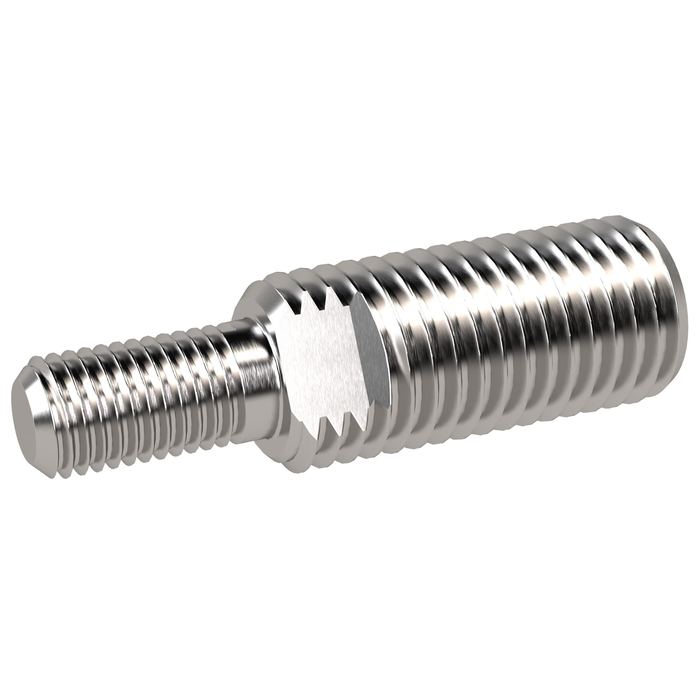

![[145363] RIEGLER Threaded nipple M12x1.25, for piston rod internal thread M6, piston Ø 40 mm](/web/image/product.template/279174/image_128/%5B145363%5D%20RIEGLER%20Threaded%20nipple%20M12x1.25%2C%20for%20piston%20rod%20internal%20thread%20M6%2C%20piston%20%C3%98%2040%20mm?unique=795d2fc)
|
Type number: 219004000 |
5.21 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

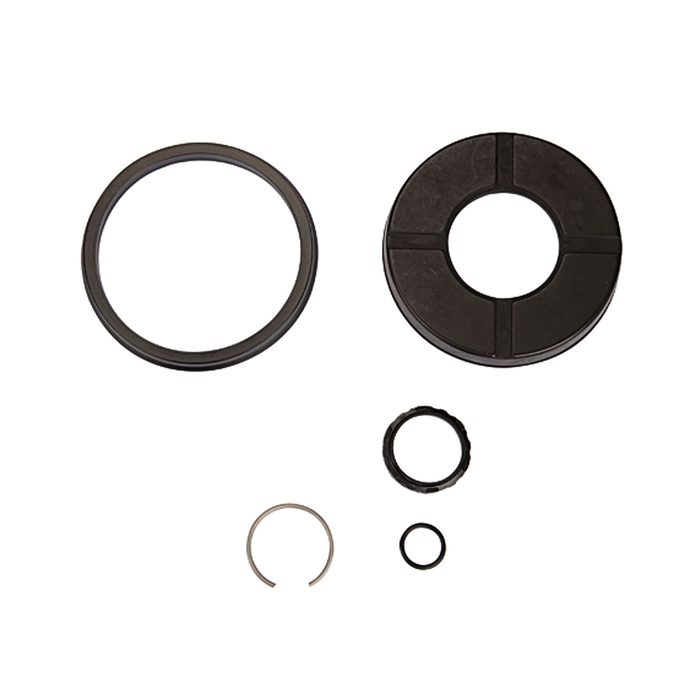

![[129889] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 40, NBR seal](/web/image/product.template/273101/image_128/%5B129889%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2040%2C%20NBR%20seal?unique=26f9097)
|
Type number: 435.7040-NBR |
11.14 € | |

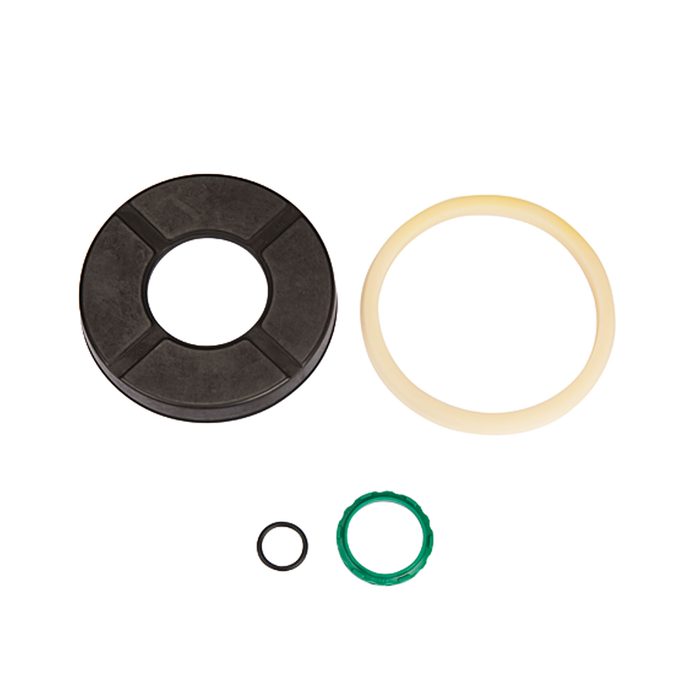

![[129898] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 40, PU seal](/web/image/product.template/273110/image_128/%5B129898%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2040%2C%20PU%20seal?unique=a090626)
|
