RIEGLER Piston rod-free cylinder, double-acting, Piston Ø 25, Stroke 100
Type number: 6.DD.250100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Rodless cylinder made of aluminium alloy profile tube, anodized - Type 6.DD.250100
The RIEGLER rodless cylinder, double-acting, piston Ø 25, stroke 100 generates linear movement without extending piston rod - saves installation space. The housing is made of aluminium alloy profile tube, anodized with NBR seals (for speeds up to max. 1 m/s). The operating pressure range is 1 bar to 8 bar. The temperature range is between -10 °C and 80 °C. Connection thread G 1/8 - suitable for common industry standards. With piston Ø 25 mm, stroke 100 mm - for powerful linear actuator solutions. Compact design for space-saving automation.
Field of application
Typical areas of application: Packaging technology, handling and long strokes.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Housing | Profile tube made of aluminium alloy, anodized |
| Sealing material | NBR (for speeds up to max. 1 m/s) |
| Working pressure min. | 1 bar |
| Working pressure max. | 8 bar |
| Carriage (piston guide) | Aluminium alloy, anodized |
| Sealing tapes | Stainless steel |
| Piston Ø | 25 mm |
| Function | double-acting |
| Stroke | 100 mm |
| Force at 6 bar | 250 N |
| Side load max. | 1 Nm |
| Connection | G 1/8 |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

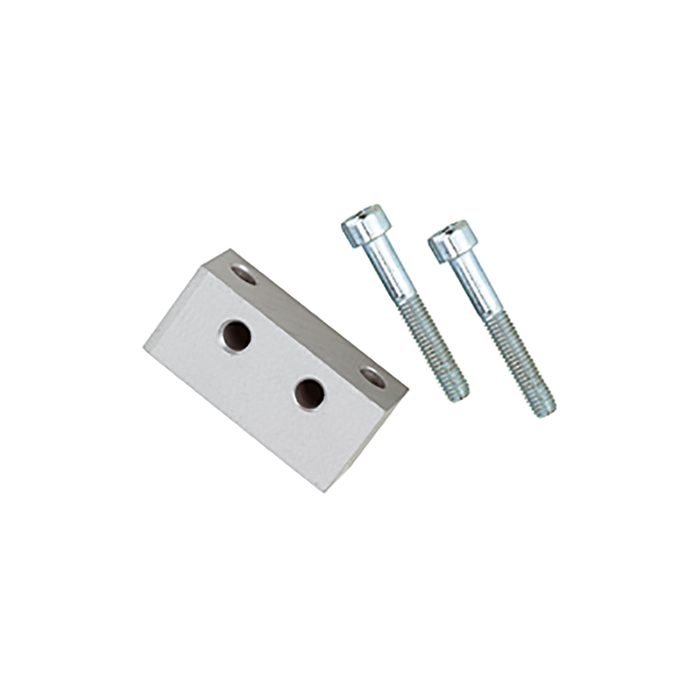

![[106365] RIEGLER Foot fastening, for piston rod-free cylinder, Piston Ø 25](/web/image/product.template/175422/image_128/%5B106365%5D%20RIEGLER%20Foot%20fastening%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2025?unique=ba909ea)
|
Type number: 455.12-M |
9.01 € | |
![[106370] RIEGLER Intermediate supports, for piston rod-free cylinder, Piston Ø 25](/web/image/product.template/175427/image_128/%5B106370%5D%20RIEGLER%20Intermediate%20supports%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2025?unique=07f238b)
|
Type number: 455.52-M |
20.94 € | |

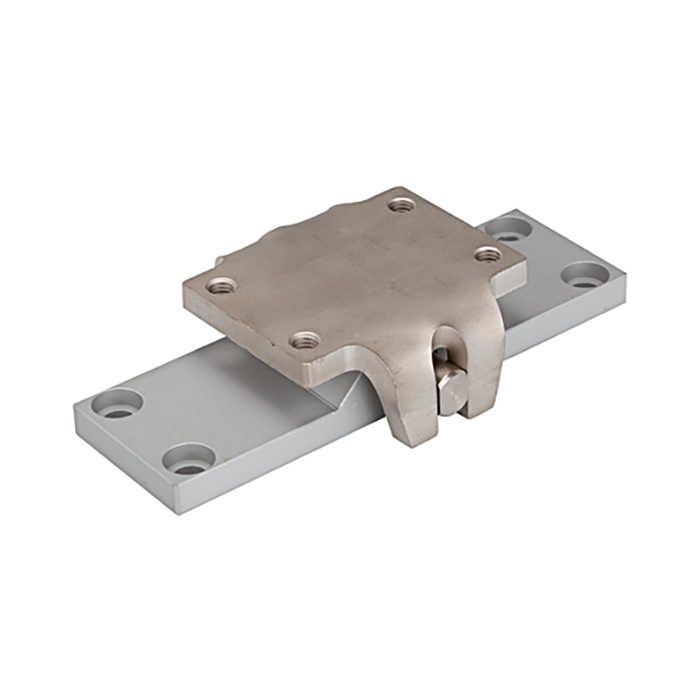

![[106375] RIEGLER Pivoting load fixture, for piston rod-free cylinder, Piston Ø 25](/web/image/product.template/175432/image_128/%5B106375%5D%20RIEGLER%20Pivoting%20load%20fixture%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2025?unique=eb2cef5)
|
Type number: 455.22-M |
104.07 € | |

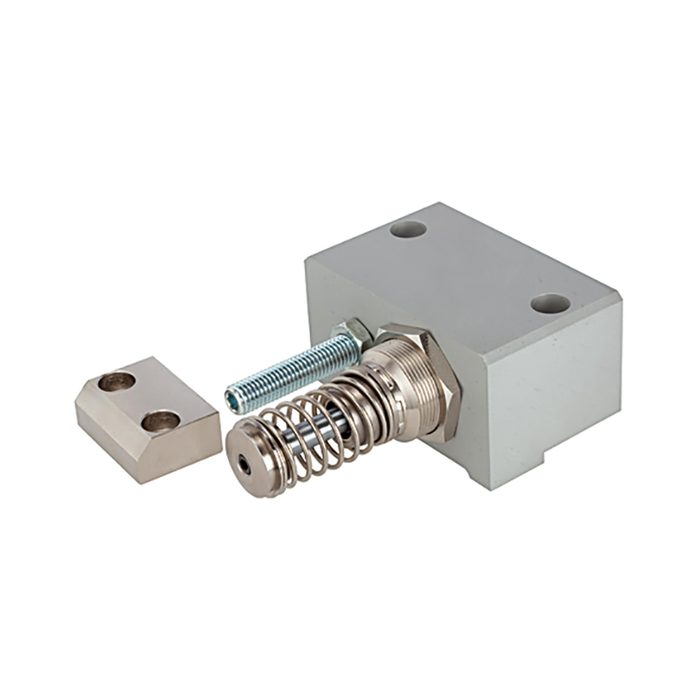

![[106379] RIEGLER Adjustable end position for piston rod-free cylinder, Piston Ø 25](/web/image/product.template/175436/image_128/%5B106379%5D%20RIEGLER%20Adjustable%20end%20position%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2025?unique=dd9b50a)
|
