RIEGLER Piston rod-free cylinder, double-acting, Piston Ø 40, Stroke 600
Type number: 6.DD.400600
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Rodless cylinder, double-acting, solenoid, piston Ø 40, stroke 600, G 1/4, working pressure 1 - 8 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Housing | Profile tube made of aluminium alloy, anodized |
| Sealing material | NBR (for speeds up to max. 1 m/s) |
| Working pressure min. | 1 bar |
| Working pressure max. | 8 bar |
| Carriage (piston guide) | Aluminium alloy, anodized |
| Sealing tapes | Stainless steel |
| Piston Ø | 40 mm |
| Function | double-acting |
| Stroke | 600 mm |
| Force at 6 bar | 640 N |
| Side load max. | 4 Nm |
| Connection | G 1/4 |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

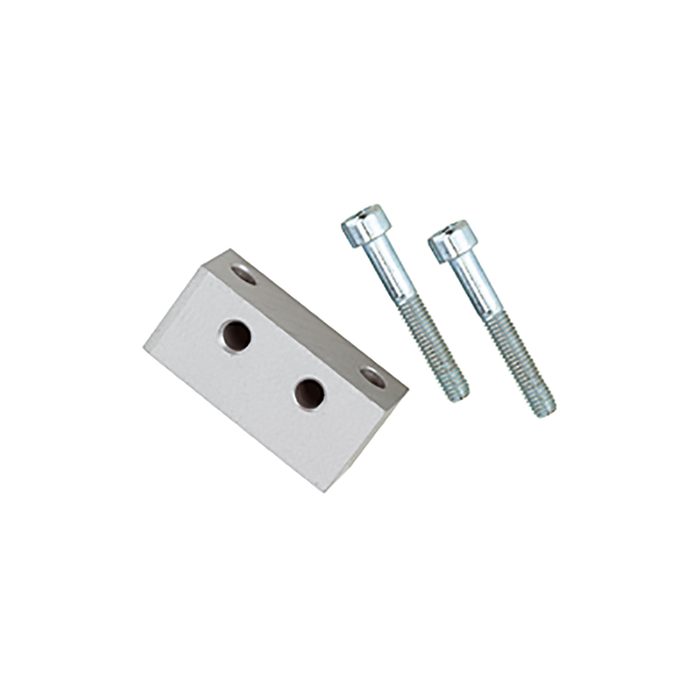

![[106367] RIEGLER Foot fastening, for piston rod-free cylinder, Piston Ø 40](/web/image/product.template/175424/image_128/%5B106367%5D%20RIEGLER%20Foot%20fastening%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2040?unique=a6d4e5b)
|
Type number: 455.14-M |
43.64 € | |
![[106372] RIEGLER Intermediate supports, for piston rod-free cylinder, Piston Ø 40](/web/image/product.template/175429/image_128/%5B106372%5D%20RIEGLER%20Intermediate%20supports%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2040?unique=02343e4)
|
Type number: 455.54-M |
45.74 € | |

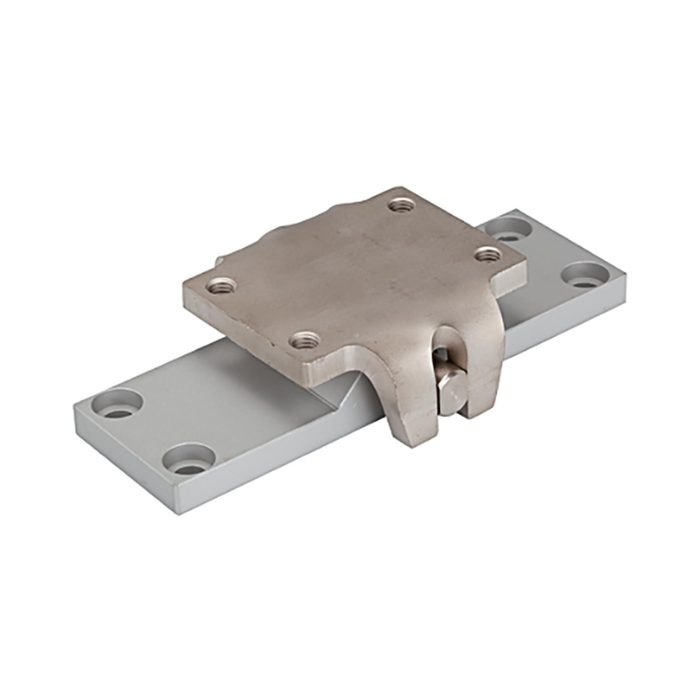

![[106376] RIEGLER Pivoting load fixture for piston rod-free cylinder, PistonØ 32-40](/web/image/product.template/175433/image_128/%5B106376%5D%20RIEGLER%20Pivoting%20load%20fixture%20for%20piston%20rod-free%20cylinder%2C%20Piston%C3%98%2032-40?unique=6aafa32)
|
Type number: 455.23-M |
131.15 € | |

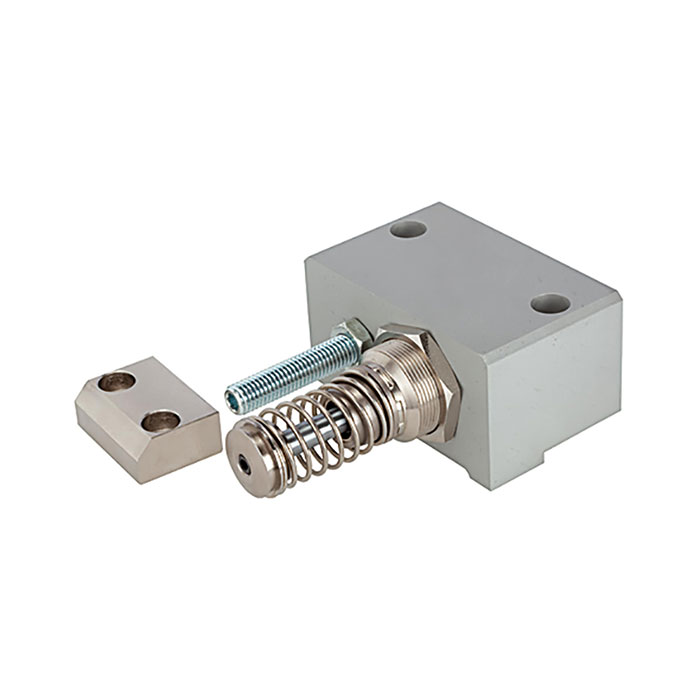

![[106381] RIEGLER Adjustable end position for piston rod-free cylinder, Piston Ø 40](/web/image/product.template/175438/image_128/%5B106381%5D%20RIEGLER%20Adjustable%20end%20position%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2040?unique=a32c788)
|
Type number: 455.34-M |
471.92 € | |

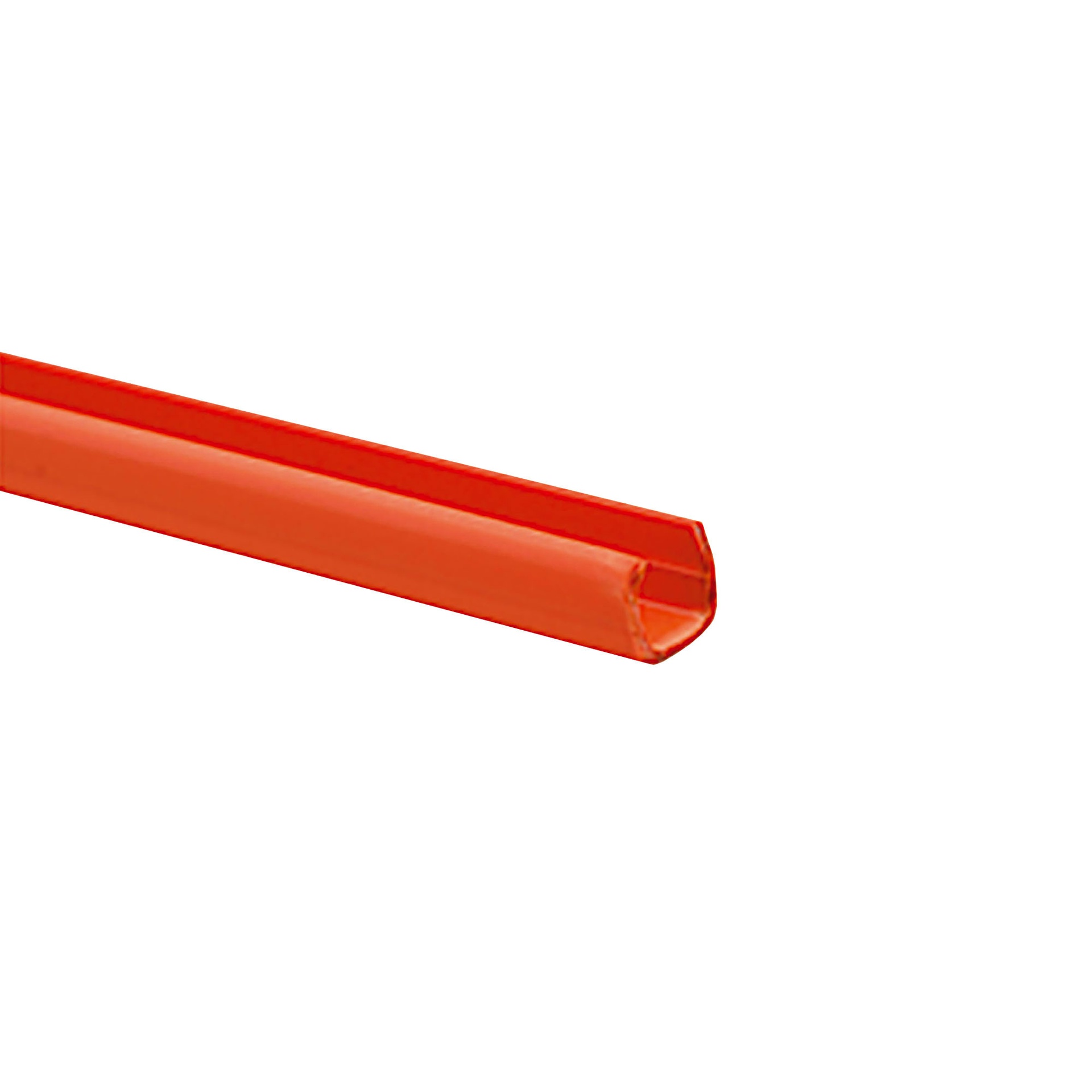

![[106384] RIEGLER Cover belts for the T-slot, Piston Ø 32-125/32-63](/web/image/product.template/175441/image_128/%5B106384%5D%20RIEGLER%20Cover%20belts%20for%20the%20T-slot%2C%20Piston%20%C3%98%2032-125-32-63?unique=e776fe4)
|
Type number: 455.06-M |
4.19 € | |
![[194356] RIEGLER REED sensor for T-slots and rectangular slots,2-wire, 2.5 m cable](/web/image/product.template/216648/image_128/%5B194356%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C2-wire%2C%202.5%20m%20cable?unique=f3605f2)
|
Typennummer: 235.03-M-1 |
19.93 € | |
![[194357] RIEGLER REED sensor for T-slots and rectangular slots, 2-wire, M8, 300mm](/web/image/product.template/216649/image_128/%5B194357%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%202-wire%2C%20M8%2C%20300mm?unique=e7fd1c1)
|
Typennummer: 235.04-M-1 |
28.67 € | |
![[194358] RIEGLER HALL sensor for T-slots and rectangular slots,3-wire, 2.5 m cable](/web/image/product.template/216650/image_128/%5B194358%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C3-wire%2C%202.5%20m%20cable?unique=77d9ec2)
|
Typennummer: 235.06-M-1 |
27.41 € | |

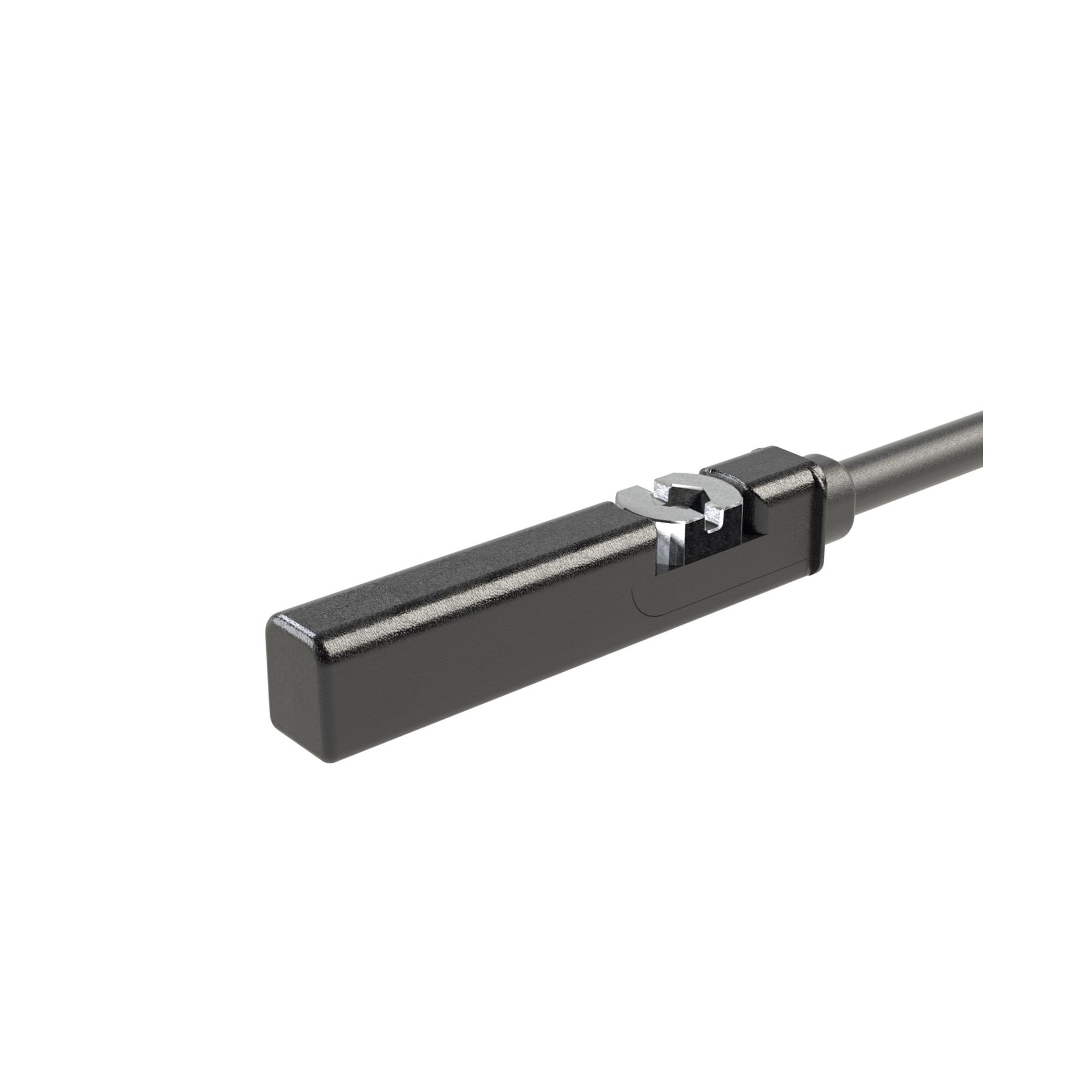

![[194359] RIEGLER HALL sensor for T-slots and rectangular slots, 3-wire, M8, 300mm](/web/image/product.template/216651/image_128/%5B194359%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%203-wire%2C%20M8%2C%20300mm?unique=d3edd7d)
|
Typennummer: 235.07-M-1 |
36.16 € | |
