RIEGLER 3/2-way miniature valve mechanical, Roller lever, NO, 4 mm side
Type number: 511.191
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way miniature valve mechan. for pneumatic control, max. 10 bar - Type 511.191
The RIEGLER 3/2-way mechanical miniature valve, roller lever, NO, 4 mm lateral controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 0.5 bar to 10 bar. The operating temperature is between -10 °C and 60 °C. Connection thread plug connection Ø 4 mm on the side - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 60 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves VME series |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| Function | 3/2 NO |
| Actuation | monostable |
| Nominal Ø | 2.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Push-in connection Ø 4 mm on the side |
| RoHS material information | RoHS compliant |
| Flow rate | 35 Nl/min |
| Flow rate | 60 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106395] RIEGLER 3/2-way miniature valve, Mechanical, Roller lever, NC, 4 mm side](/web/image/product.template/175452/image_128/%5B106395%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20Mechanical%2C%20Roller%20lever%2C%20NC%2C%204%20mm%20side?unique=24244db)
|
Type number: 511.193 |
22.48 € | |

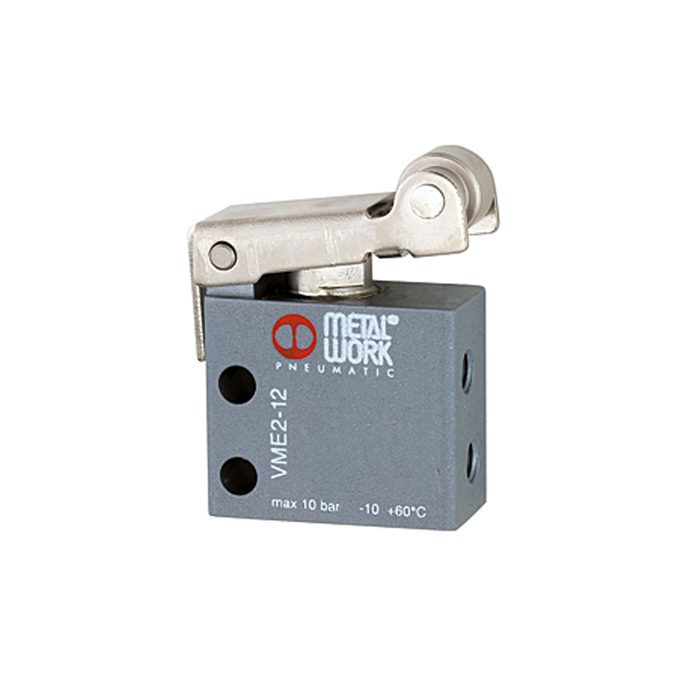

![[106396] RIEGLER 3/2-way miniature valve, Mechanical, Roller lever, NC, M5 side](/web/image/product.template/175453/image_128/%5B106396%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20Mechanical%2C%20Roller%20lever%2C%20NC%2C%20M5%20side?unique=24244db)
|
