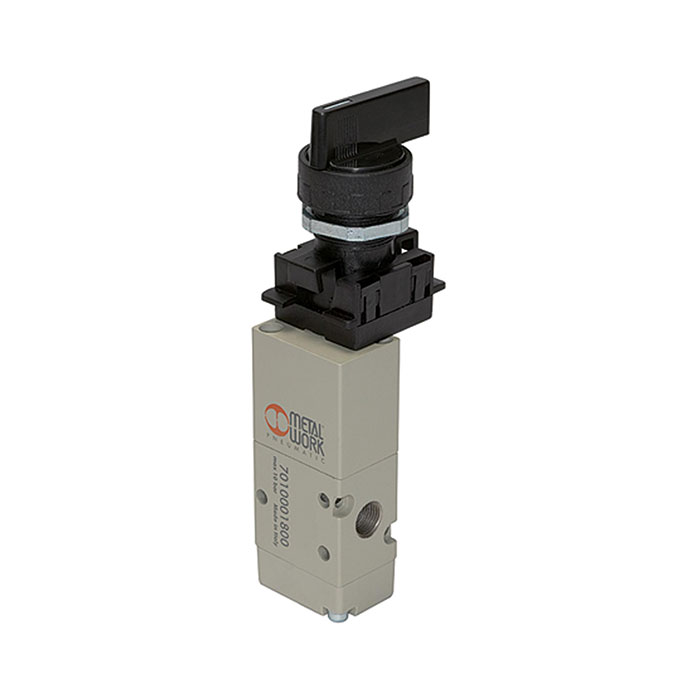

RIEGLER 3/2-way valve man.long rotating lever NC bistableG1/8 valve pos.2
Type number: 515.502
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way valve, manual, l. rotary lever, NC, bistable, 2-switch, connection G 1/8, operating pressure 2.5 - 10bar, operating temp. -10°C to 60°C, aluminum
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Spring | Special steel |
| Valve body | Aluminum |
| Function | 3/2 NC |
| Actuation | bistable |
| Switching positions | 2 |
| Symbol | 10 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026, CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

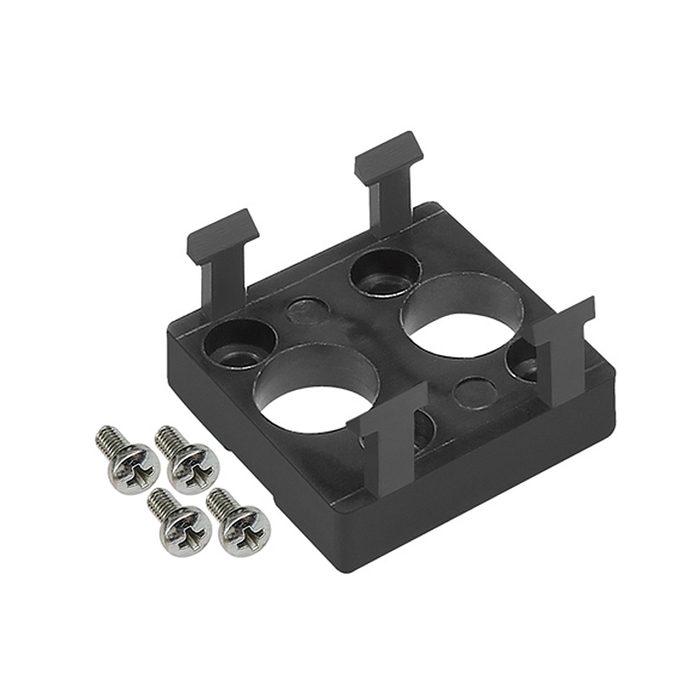

![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=5a36da6)
|
Type number: A2V |
2.81 € | |

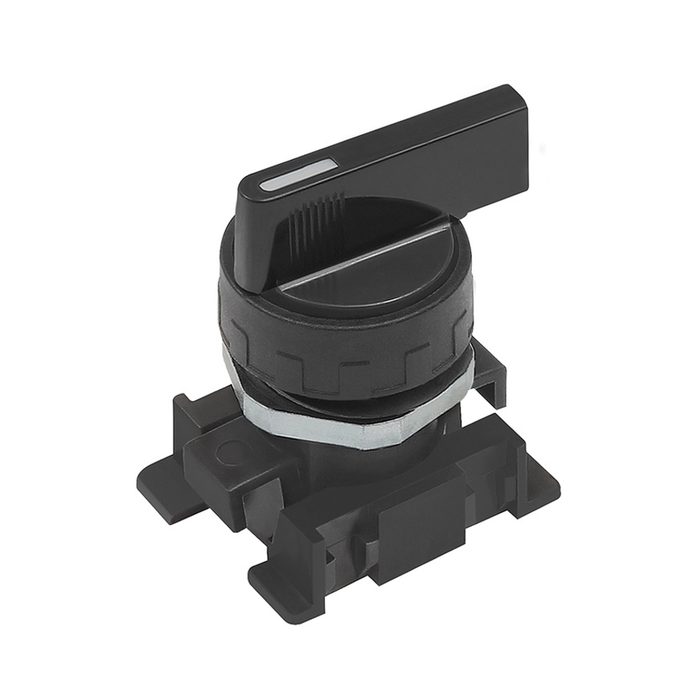

![[106451] RIEGLER Long rotating lever, black, 2 positions, bistable](/web/image/product.template/175508/image_128/%5B106451%5D%20RIEGLER%20Long%20rotating%20lever%2C%20black%2C%202%20positions%2C%20bistable?unique=3abeacc)
|
Type number: LDH-2B |
23.00 € | |

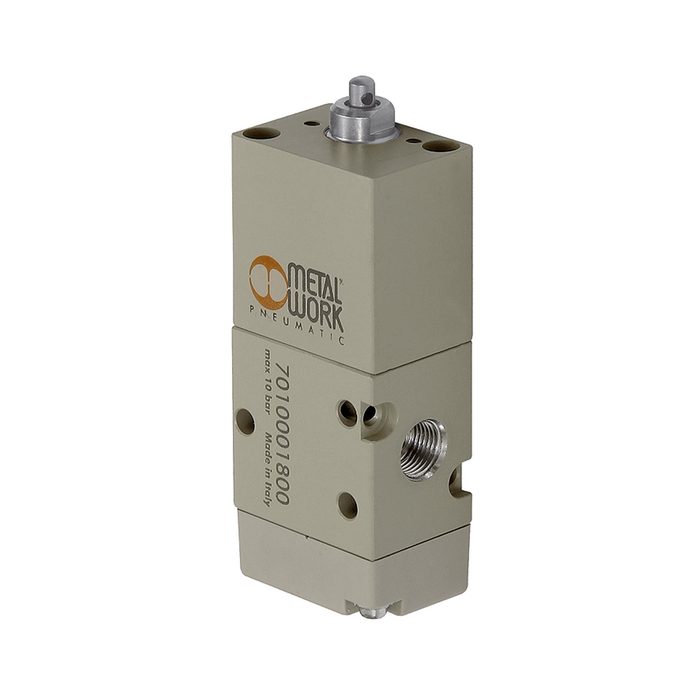

![[106441] RIEGLER Stem actuated valve, 3/2-way, monostable, NC, G 1/8](/web/image/product.template/175498/image_128/%5B106441%5D%20RIEGLER%20Stem%20actuated%20valve%2C%203-2-way%2C%20monostable%2C%20NC%2C%20G%201-8?unique=448e8f5)
|
Type number: 515.101 |
51.74 € | |
