RIEGLER 3/2-way valve, Pneumatic, bistable, Connection G 1/2
Type number: 516.203
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way valve, pneumatic, bistable, G 1/2, p = vacuum up to 10 bar, control pressure 1 - 10 bar, temp. -10 °C to 60 °C, aluminum
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Control pressure min. | 1 bar |
| Control pressure max. | 10 bar |
| Operating pressure | Vacuum up to 10 bar |
| DN | 15 |
| Function | 3/2 |
| Actuation | bistable |

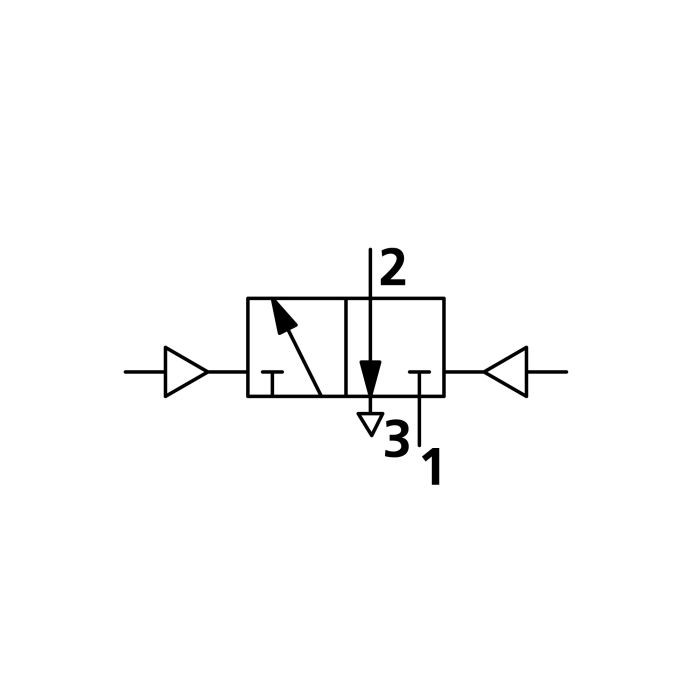

| Symbol | 26 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 |
| RoHS material information | RoHS compliant |
| Flow rate | 3200 Nl/min |
| Flow rate | 4600 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
