RIEGLER 5/2-way valve, Pneumatic, bistable, Connection G 1/8
Type number: 516.303
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/2-way valve, Pneumatic, bistable, G 1/8, p = vacuum to 10 bar, control press. 1 - 10 bar, Temp. -10 °C to 60 °C, Aluminium
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Control pressure min. | 1 bar |
| Control pressure max. | 10 bar |
| Operating pressure | Vacuum up to 10 bar |
| DN | 5 |
| Function | 5/2 |
| Actuation | bistable |

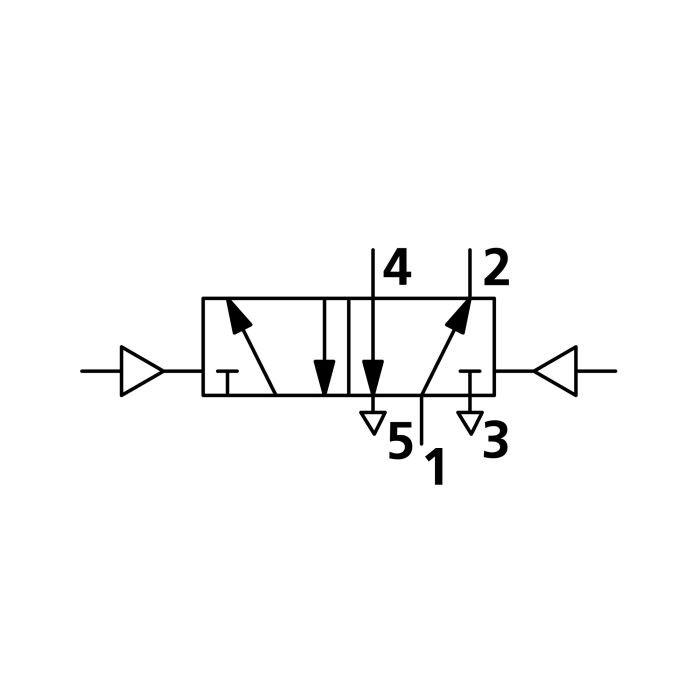

| Symbol | 28 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and ˆ†p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and ˆ†p 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106499] RIEGLER 3/2-way valve, Pneumatic, bistable, Connection G 1/2](/web/image/product.template/175556/image_128/%5B106499%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20bistable%2C%20Connection%20G%201-2?unique=a679d57)
|
Type number: 516.203 |
150.34 € | |
![[106497] RIEGLER 3/2-way valve, Pneumatic, bistable, Connection G 1/4](/web/image/product.template/175554/image_128/%5B106497%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20bistable%2C%20Connection%20G%201-4?unique=c46767b)
|
Type number: 516.202 |
50.79 € | |
![[106496] RIEGLER 3/2-way valve, Pneumatic, bistable, Connection G 1/8](/web/image/product.template/175553/image_128/%5B106496%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20bistable%2C%20Connection%20G%201-8?unique=0ba30fb)
|
Type number: 516.201 |
39.95 € | |
![[106498] RIEGLER 3/2-way valve, Pneumatic, bistable, Connection G 3/8](/web/image/product.template/175555/image_128/%5B106498%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20bistable%2C%20Connection%20G%203-8?unique=15e4814)
|
Type number: 516.202-38 |
77.58 € | |
![[106495] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 1/2, NC](/web/image/product.template/175552/image_128/%5B106495%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-2%2C%20NC?unique=4b9e5eb)
|
Type number: 516.106 |
133.41 € | |
![[106491] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 1/2, NO](/web/image/product.template/175548/image_128/%5B106491%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-2%2C%20NO?unique=5456258)
|
Type number: 516.105 |
133.41 € | |
![[106493] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 1/4, NC](/web/image/product.template/175550/image_128/%5B106493%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-4%2C%20NC?unique=eebd60e)
|
Type number: 516.104 |
46.90 € | |
![[106489] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 1/4, NO](/web/image/product.template/175546/image_128/%5B106489%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-4%2C%20NO?unique=021b020)
|
Type number: 516.102 |
46.90 € | |
![[106492] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 1/8, NC](/web/image/product.template/175549/image_128/%5B106492%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-8%2C%20NC?unique=aa2041f)
|
Type number: 516.103 |
36.74 € | |
![[106488] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 1/8, NO](/web/image/product.template/175545/image_128/%5B106488%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-8%2C%20NO?unique=057d975)
|
Type number: 516.101 |
36.74 € | |

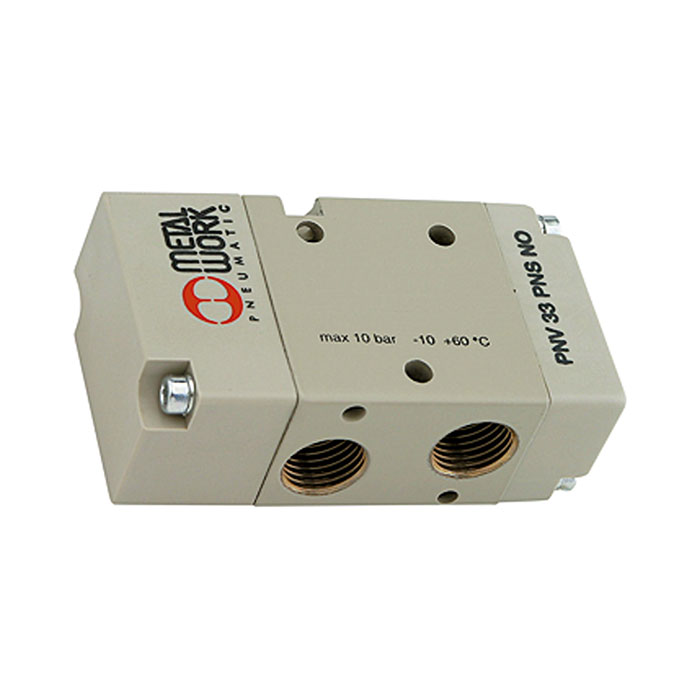

![[106494] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 3/8, NC](/web/image/product.template/175551/image_128/%5B106494%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%203-8%2C%20NC?unique=5c6f289)
|
Type number: 516.104-38 |
71.65 € | |
![[106490] RIEGLER 3/2-way valve, Pneumatic, monostable, Connection G 3/8, NO](/web/image/product.template/175547/image_128/%5B106490%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%203-8%2C%20NO?unique=74269c4)
|
Type number: 516.102-38 |
71.65 € | |
![[106507] RIEGLER 5/2-way valve, Pneumatic, bistable, Connection G 1/2](/web/image/product.template/175564/image_128/%5B106507%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20bistable%2C%20Connection%20G%201-2?unique=642634e)
|
Type number: 516.306 |
180.88 € | |
![[106505] RIEGLER 5/2-way valve, Pneumatic, bistable, Connection G 1/4](/web/image/product.template/175562/image_128/%5B106505%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20bistable%2C%20Connection%20G%201-4?unique=6c2ce60)
|
Type number: 516.304 |
56.88 € | |
![[106506] RIEGLER 5/2-way valve, Pneumatic, bistable, Connection G 3/8](/web/image/product.template/175563/image_128/%5B106506%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20bistable%2C%20Connection%20G%203-8?unique=29aade0)
|
Type number: 516.304-38 |
89.82 € | |
![[106503] RIEGLER 5/2-way valve, Pneumatic, monostable, Connection G 1/2](/web/image/product.template/175560/image_128/%5B106503%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-2?unique=d96ce2b)
|
Type number: 516.305 |
163.96 € | |
![[106501] RIEGLER 5/2-way valve, Pneumatic, monostable, Connection G 1/4](/web/image/product.template/175558/image_128/%5B106501%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-4?unique=38d7eda)
|
Type number: 516.302 |
52.80 € | |
![[106500] RIEGLER 5/2-way valve, Pneumatic, monostable, Connection G 1/8](/web/image/product.template/175557/image_128/%5B106500%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%201-8?unique=71fe545)
|
Type number: 516.301 |
43.27 € | |
![[106502] RIEGLER 5/2-way valve, Pneumatic, monostable, Connection G 3/8](/web/image/product.template/175559/image_128/%5B106502%5D%20RIEGLER%205-2-way%20valve%2C%20Pneumatic%2C%20monostable%2C%20Connection%20G%203-8?unique=75b49fa)
|
Type number: 516.302-38 |
82.92 € | |
![[106517] RIEGLER 5/3-way valve, pneumatic, G 1/2, mid-position closed](/web/image/product.template/175574/image_128/%5B106517%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-2%2C%20mid-position%20closed?unique=a44e4ff)
|
Type number: 516.601 |
188.45 € | |
![[106518] RIEGLER 5/3-way valve, pneumatic, G 1/2, mid-position exhausted](/web/image/product.template/175575/image_128/%5B106518%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-2%2C%20mid-position%20exhausted?unique=84028fe)
|
Type number: 516.602 |
188.45 € | |
![[106519] RIEGLER 5/3-way valve, pneumatic, G 1/2, mid-position pressurised](/web/image/product.template/175576/image_128/%5B106519%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-2%2C%20mid-position%20pressurised?unique=933b016)
|
Type number: 516.603 |
188.45 € | |
![[106511] RIEGLER 5/3-way valve, pneumatic, G 1/4, mid-position closed](/web/image/product.template/175568/image_128/%5B106511%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-4%2C%20mid-position%20closed?unique=7efd66d)
|
Type number: 516.501 |
60.98 € | |
![[106512] RIEGLER 5/3-way valve, pneumatic, G 1/4, mid-position exhausted](/web/image/product.template/175569/image_128/%5B106512%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-4%2C%20mid-position%20exhausted?unique=16d6a8b)
|
Type number: 516.502 |
60.98 € | |
![[106513] RIEGLER 5/3-way valve, pneumatic, G 1/4, mid-position pressurised](/web/image/product.template/175570/image_128/%5B106513%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-4%2C%20mid-position%20pressurised?unique=399754a)
|
Type number: 516.503 |
60.98 € | |
![[106508] RIEGLER 5/3-way valve, pneumatic, G 1/8, mid-position closed](/web/image/product.template/175565/image_128/%5B106508%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-8%2C%20mid-position%20closed?unique=856b612)
|
Type number: 516.401 |
33.70 € | |
![[106509] RIEGLER 5/3-way valve, pneumatic, G 1/8, mid-position exhausted](/web/image/product.template/175566/image_128/%5B106509%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-8%2C%20mid-position%20exhausted?unique=3da22d6)
|
Type number: 516.402 |
48.52 € | |

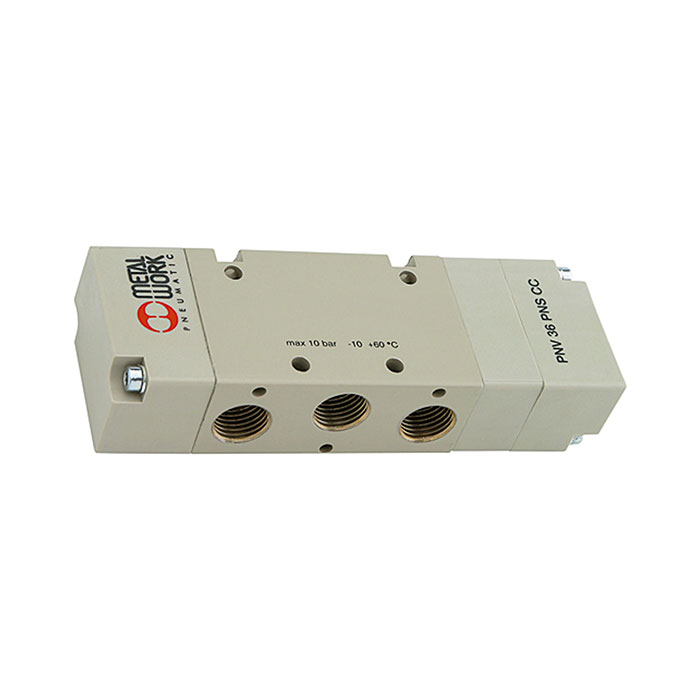

![[106510] RIEGLER 5/3-way valve, pneumatic, G 1/8 mid-position pressurised](/web/image/product.template/175567/image_128/%5B106510%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%201-8%20mid-position%20pressurised?unique=2718cc6)
|
Type number: 516.403 |
48.52 € | |
![[106514] RIEGLER 5/3-way valve, pneumatic, G 3/8, mid-position closed](/web/image/product.template/175571/image_128/%5B106514%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%203-8%2C%20mid-position%20closed?unique=163e29c)
|
Type number: 516.501-38 |
93.83 € | |
![[106515] RIEGLER 5/3-way valve, pneumatic, G 3/8, mid-position exhausted](/web/image/product.template/175572/image_128/%5B106515%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%203-8%2C%20mid-position%20exhausted?unique=0e78572)
|
Type number: 516.502-38 |
93.83 € | |
![[106516] RIEGLER 5/3-way valve, pneumatic, G 3/8, mid-position pressurised](/web/image/product.template/175573/image_128/%5B106516%5D%20RIEGLER%205-3-way%20valve%2C%20pneumatic%2C%20G%203-8%2C%20mid-position%20pressurised?unique=32b0f84)
|
Type number: 516.503-38 |
93.83 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106604] RIEGLER Mounting bracket set for way valves, Height 120 mm, G 1/8](/web/image/product.template/175661/image_128/%5B106604%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%20120%20mm%2C%20G%201-8?unique=8c565bb)
|
Type number: 518.120-18 |
16.81 € | |

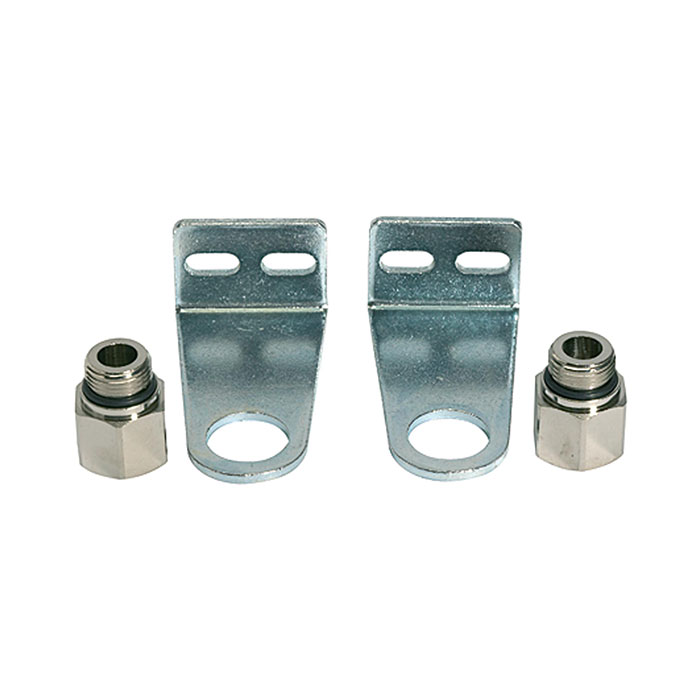

![[106605] RIEGLER Mounting bracket set for way valves, Height 60 mm, G 1/8](/web/image/product.template/175662/image_128/%5B106605%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2060%20mm%2C%20G%201-8?unique=a661aa1)
|
Type number: 518.60-18 |
15.40 € | |
![[106606] RIEGLER Mounting bracket set for way valves, Height 30 mm, G 1/8](/web/image/product.template/175663/image_128/%5B106606%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2030%20mm%2C%20G%201-8?unique=eb63824)
|
Type number: 518.30-18 |
15.40 € | |

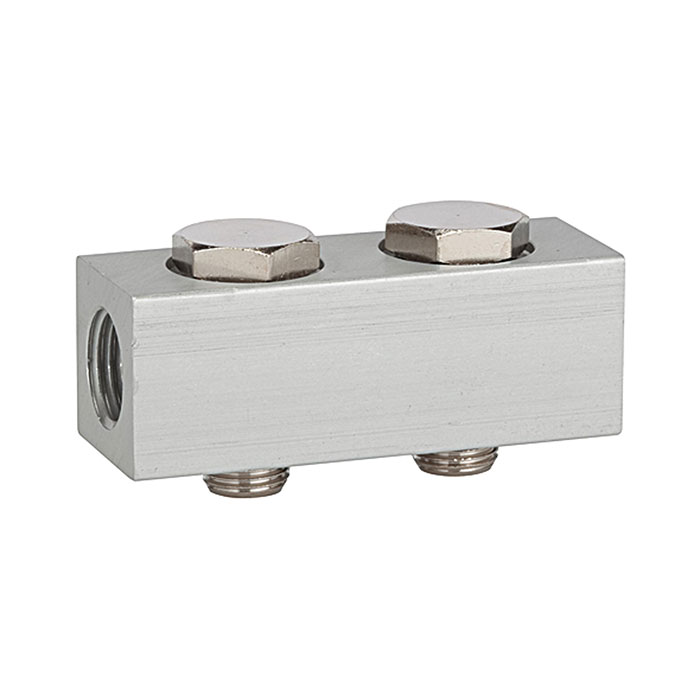

![[106610] RIEGLER Supply strip for the way valves, with 2 valve positions, G 1/8](/web/image/product.template/175667/image_128/%5B106610%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%202%20valve%20positions%2C%20G%201-8?unique=6395ec8)
|
Type number: 518.02-18 |
14.66 € | |

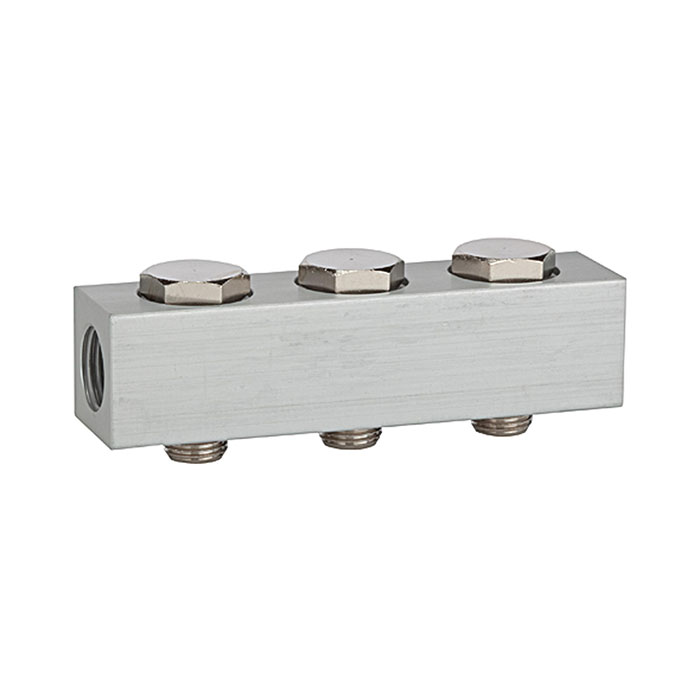

![[106611] RIEGLER Supply strip for the way valves, with 3 valve positions, G 1/8](/web/image/product.template/175668/image_128/%5B106611%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%203%20valve%20positions%2C%20G%201-8?unique=a01f044)
|
Type number: 518.03-18 |
20.06 € | |

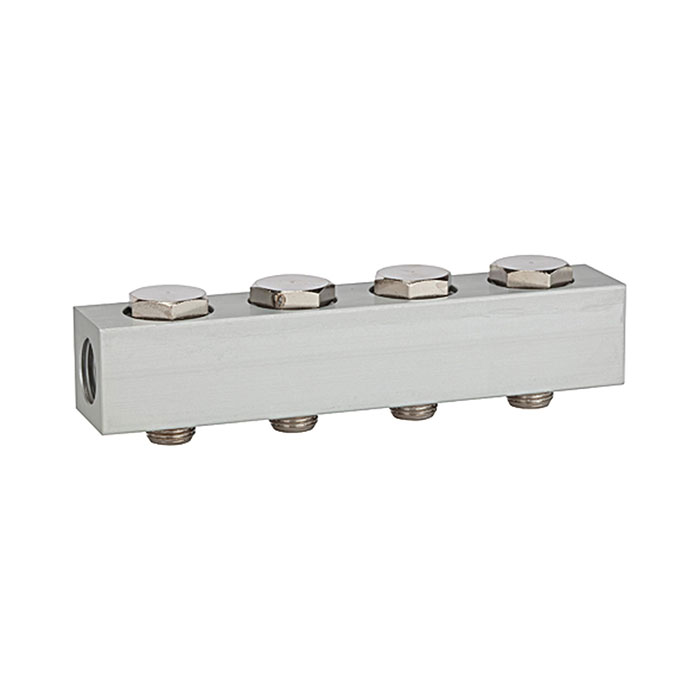

![[106612] RIEGLER Supply strip for the way valves, with 4 valve positions, G 1/8](/web/image/product.template/175669/image_128/%5B106612%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%204%20valve%20positions%2C%20G%201-8?unique=ee7ffee)
|
Type number: 518.04-18 |
24.69 € | |

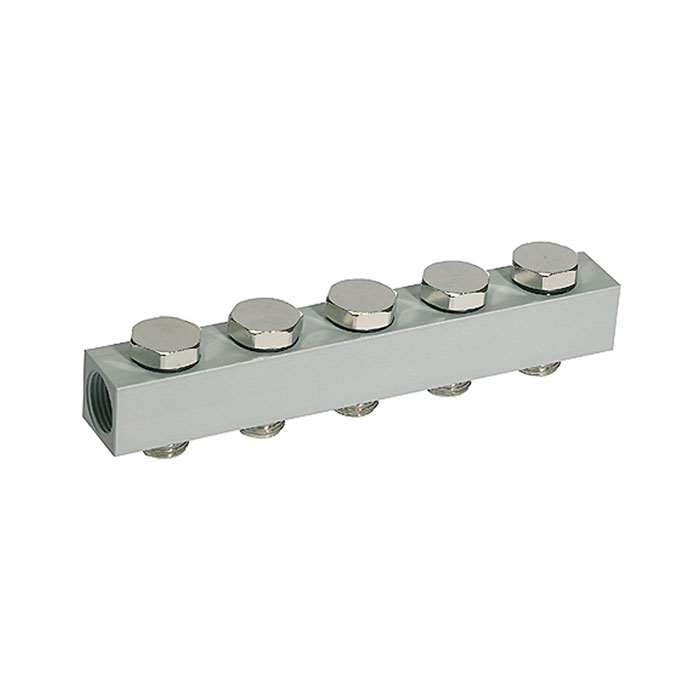

![[106613] RIEGLER Supply strip for the way valves, with 5 valve positions, G 1/8](/web/image/product.template/175670/image_128/%5B106613%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%205%20valve%20positions%2C%20G%201-8?unique=6084daf)
|
Type number: 518.05-18 |
29.94 € | |

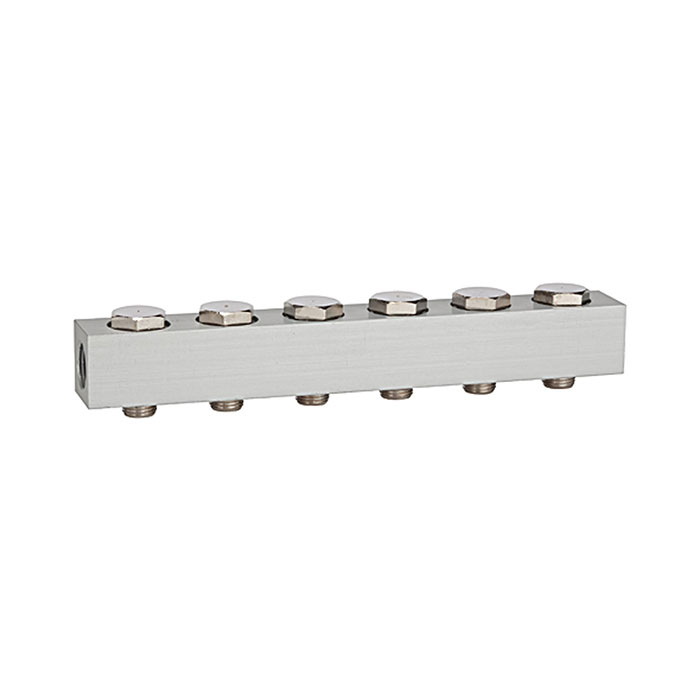

![[106614] RIEGLER Supply strip for the way valves, with 6 valve positions, G 1/8](/web/image/product.template/175671/image_128/%5B106614%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%206%20valve%20positions%2C%20G%201-8?unique=ea39ec0)
|
Type number: 518.06-18 |
38.00 € | |

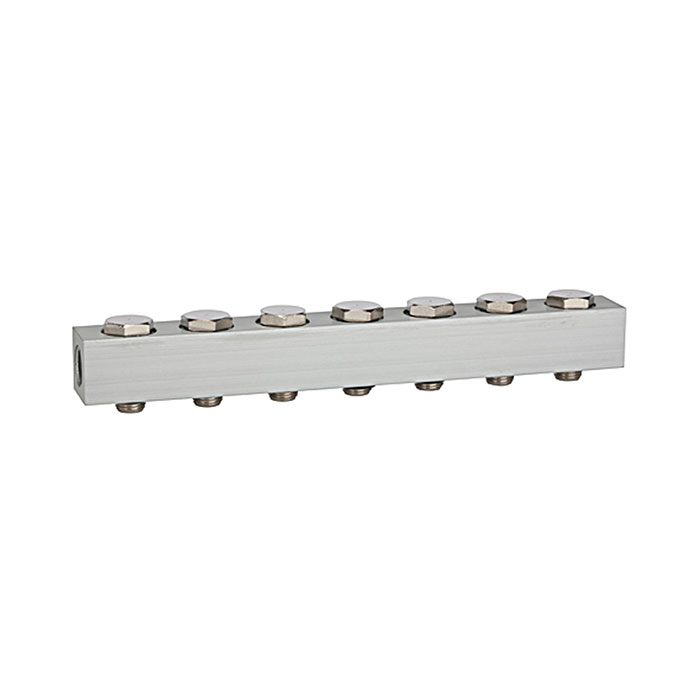

![[106615] RIEGLER Supply strip for the way valves, with 7 valve positions, G 1/8](/web/image/product.template/175672/image_128/%5B106615%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%207%20valve%20positions%2C%20G%201-8?unique=129f7d3)
|
Type number: 518.07-18 |
47.09 € | |

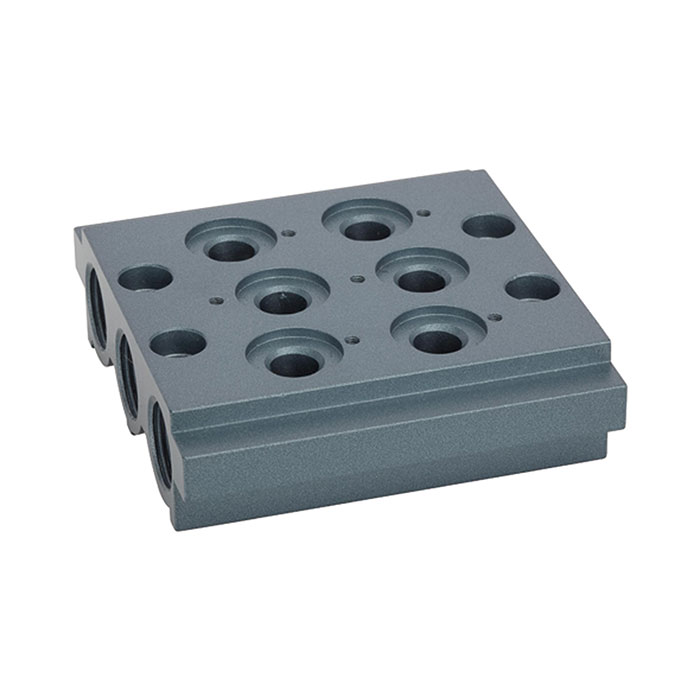

![[106622] RIEGLER Multi-base plate for the way valves, 2 valve positions, G 1/8](/web/image/product.template/175679/image_128/%5B106622%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%202%20valve%20positions%2C%20G%201-8?unique=4cfc949)
|
Type number: 520.02-18 |
46.54 € | |

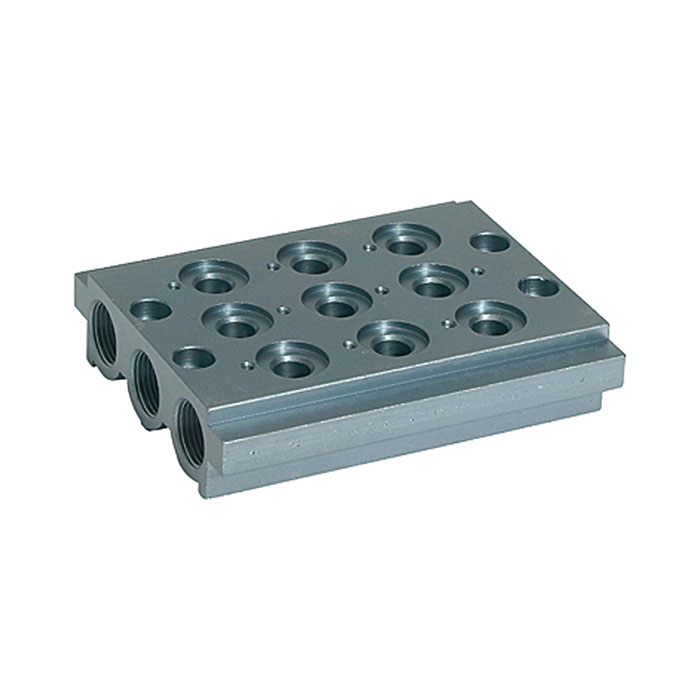

![[106623] RIEGLER Multi-base plate for the way valves, 3 valve positions, G 1/8](/web/image/product.template/175680/image_128/%5B106623%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%203%20valve%20positions%2C%20G%201-8?unique=0aa9fda)
|
Type number: 520.03-18 |
57.17 € | |

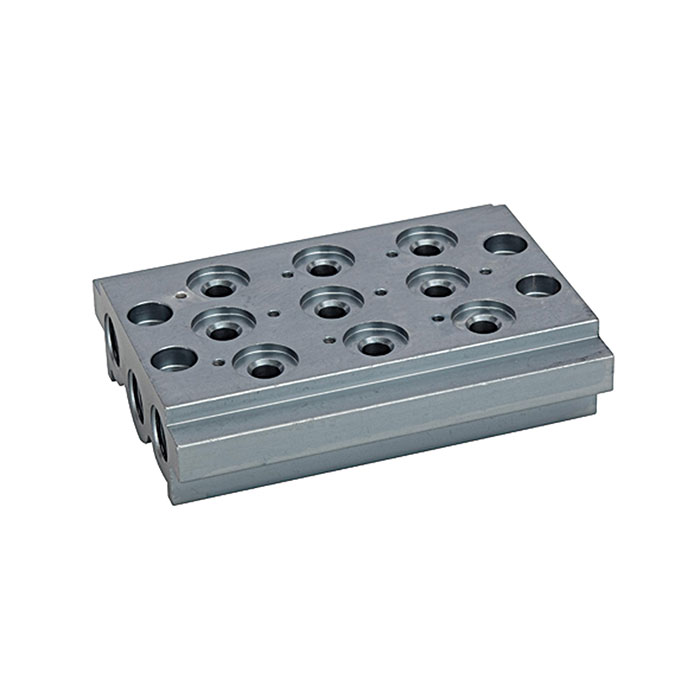

![[106624] RIEGLER Multi-base plate for the way valves, 4 valve positions, G 1/8](/web/image/product.template/175681/image_128/%5B106624%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%204%20valve%20positions%2C%20G%201-8?unique=640a111)
|
Type number: 520.04-18 |
68.00 € | |

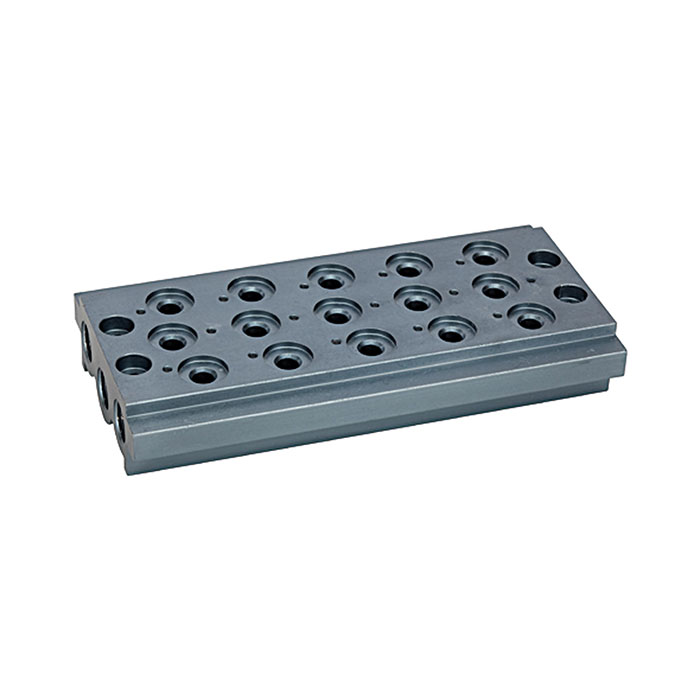

![[106625] RIEGLER Multi-base plate for the way valves, 5 valve positions, G 1/8](/web/image/product.template/175682/image_128/%5B106625%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%205%20valve%20positions%2C%20G%201-8?unique=0697c1b)
|
Type number: 520.05-18 |
77.43 € | |

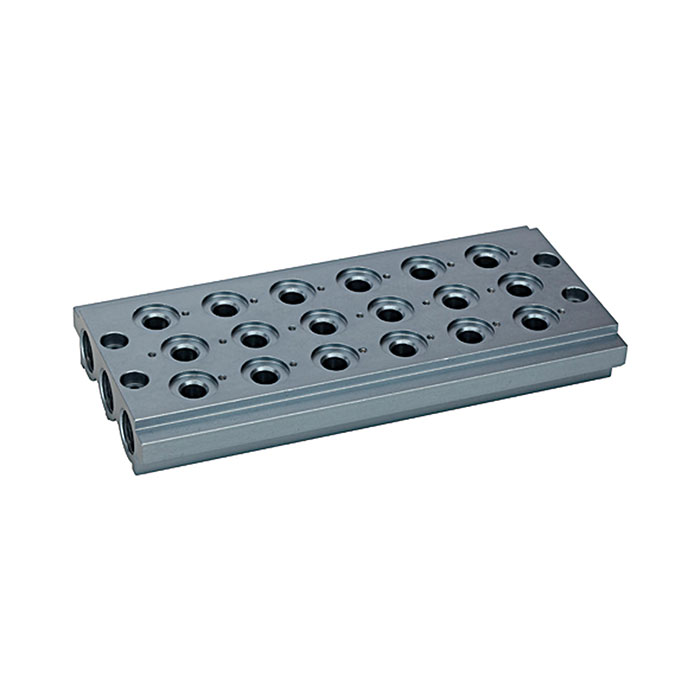

![[106626] RIEGLER Multi-base plate for the way valves, 6 valve positions, G 1/8](/web/image/product.template/175683/image_128/%5B106626%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%206%20valve%20positions%2C%20G%201-8?unique=0c79ff4)
|
Type number: 520.06-18 |
92.87 € | |

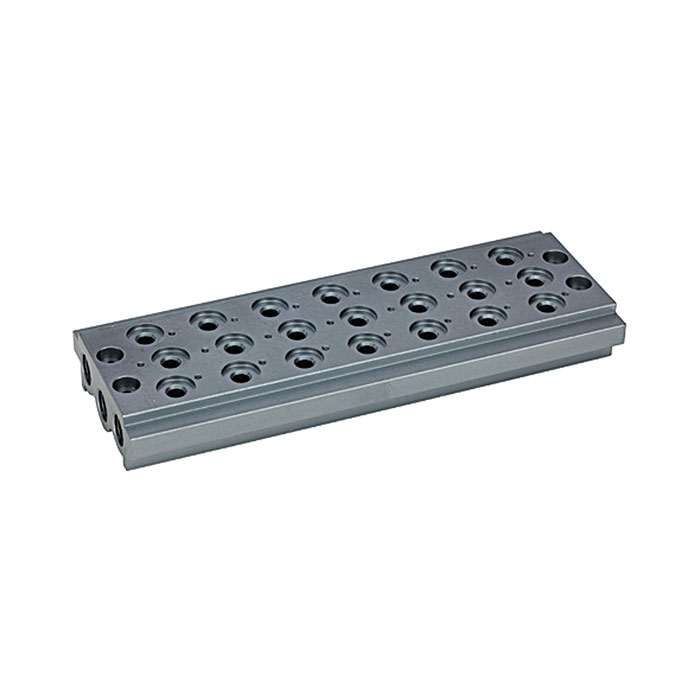

![[106627] RIEGLER Multi-base plate for the way valves, 7 valve positions, G 1/8](/web/image/product.template/175684/image_128/%5B106627%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%207%20valve%20positions%2C%20G%201-8?unique=c3cd679)
|
Type number: 520.07-18 |
101.44 € | |

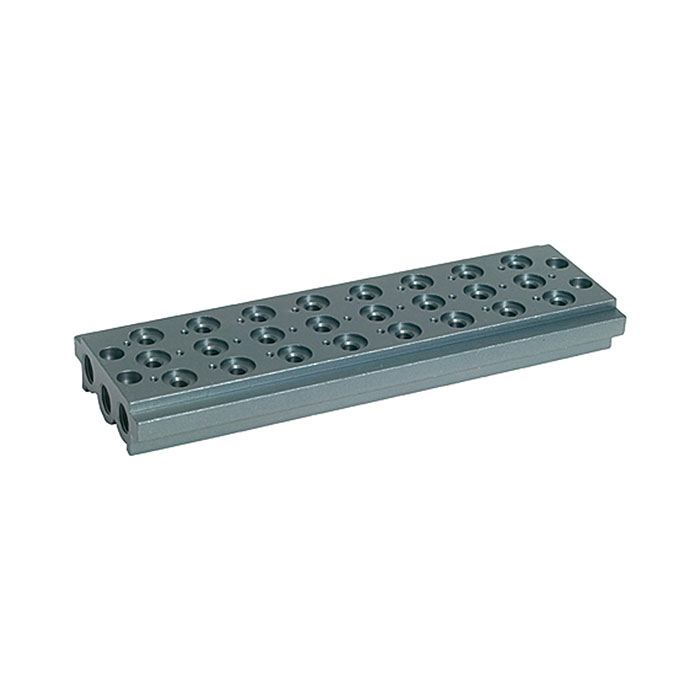

![[106628] RIEGLER Multi-base plate for the way valves, 8 valve positions, G 1/8](/web/image/product.template/175685/image_128/%5B106628%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%208%20valve%20positions%2C%20G%201-8?unique=08db847)
|
Type number: 520.08-18 |
116.42 € | |

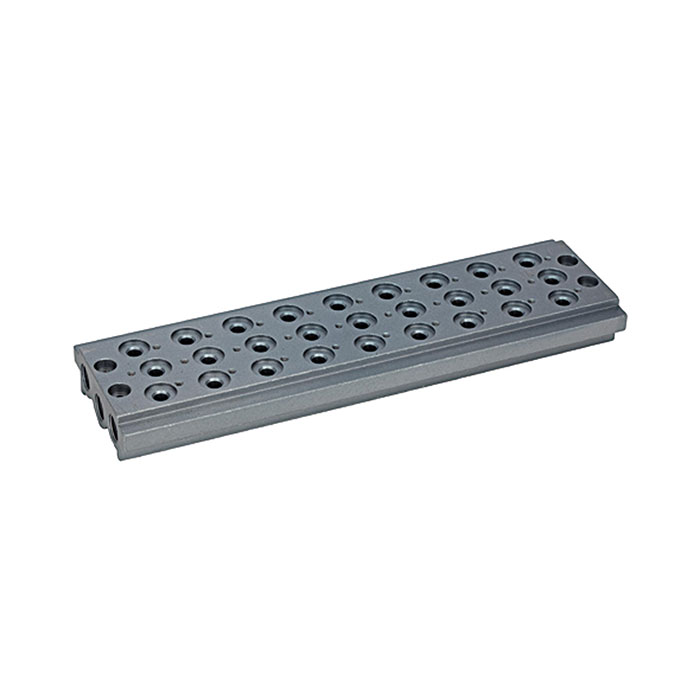

![[106629] RIEGLER Multi-base plate for the way valves, 9 valve positions, G 1/8](/web/image/product.template/175686/image_128/%5B106629%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%209%20valve%20positions%2C%20G%201-8?unique=ab1e48a)
|
Type number: 520.09-18 |
139.68 € | |

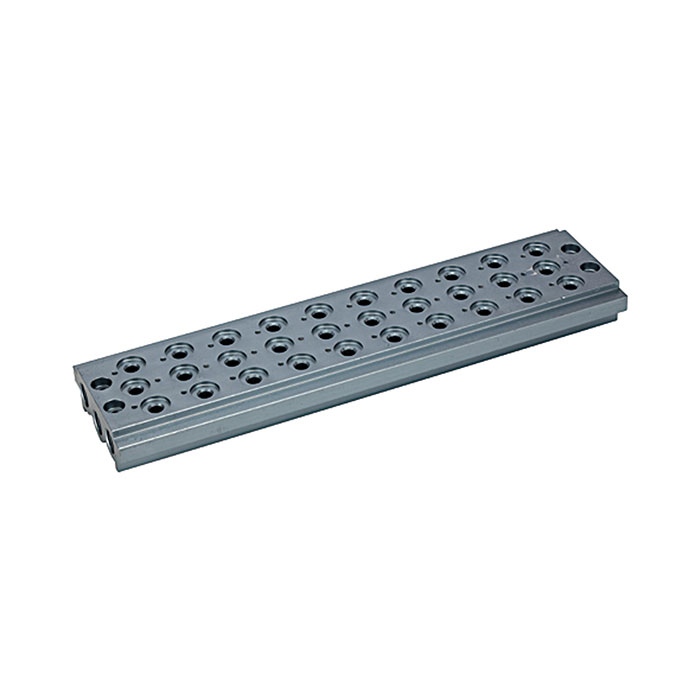

![[106630] RIEGLER Multi-base plate for the way valves, 10 valve positions, G 1/8](/web/image/product.template/175687/image_128/%5B106630%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%2010%20valve%20positions%2C%20G%201-8?unique=786f7ea)
|
Type number: 520.10-18 |
174.50 € | |

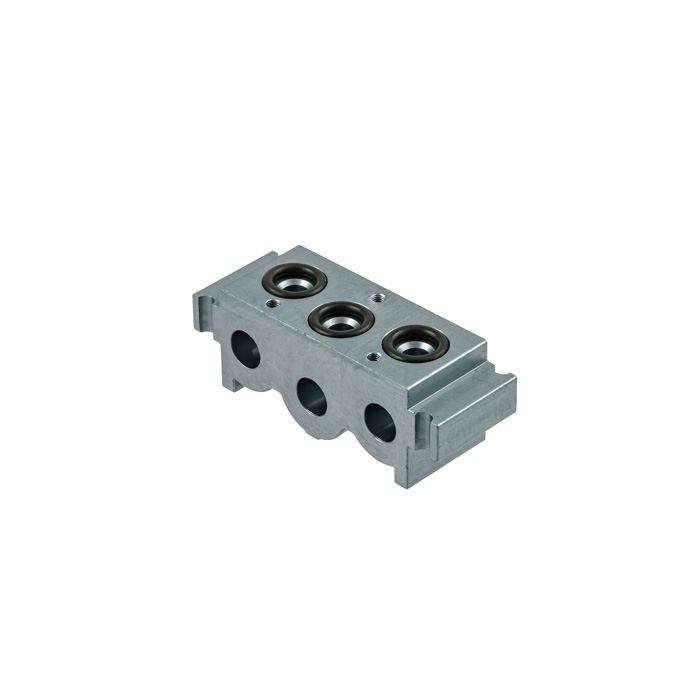

![[146733] RIEGLER Modular base plate for valves G 1/8, base plate system](/web/image/product.template/275984/image_128/%5B146733%5D%20RIEGLER%20Modular%20base%20plate%20for%20valves%20G%201-8%2C%20base%20plate%20system?unique=6c9ae36)
|
Typennummer: 0226004150 |
15.86 € | |

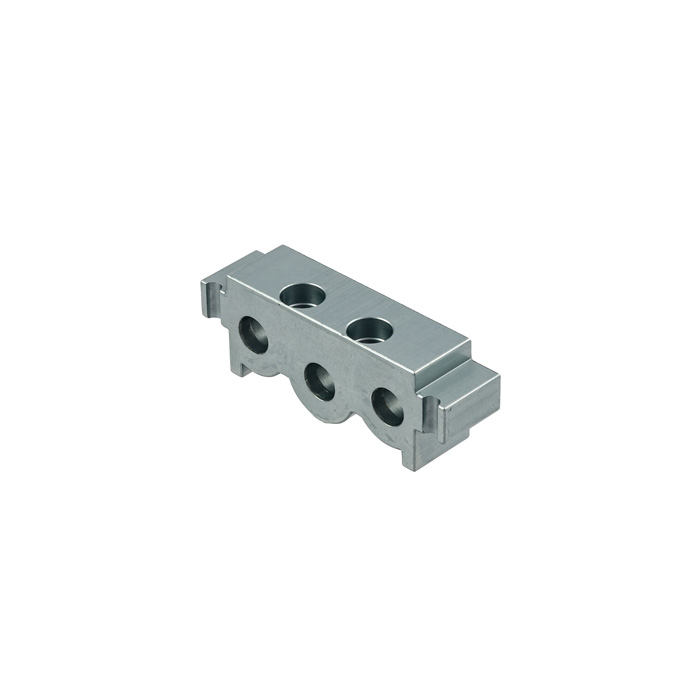

![[146734] RIEGLER Outlet plate without seals, G 1/8, base plate system](/web/image/product.template/275985/image_128/%5B146734%5D%20RIEGLER%20Outlet%20plate%20without%20seals%2C%20G%201-8%2C%20base%20plate%20system?unique=20f7161)
|
Typennummer: 0226004201 |
11.52 € | |

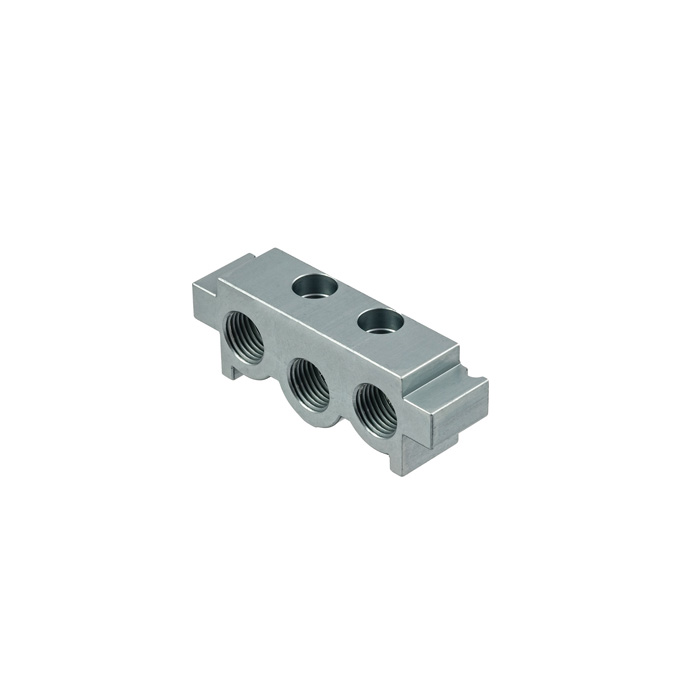

![[146735] RIEGLER Inlet plate with seals, G 1/8, base plate system](/web/image/product.template/275986/image_128/%5B146735%5D%20RIEGLER%20Inlet%20plate%20with%20seals%2C%20G%201-8%2C%20base%20plate%20system?unique=e78ed3a)
|
Typennummer: 0226004200 |
14.92 € | |

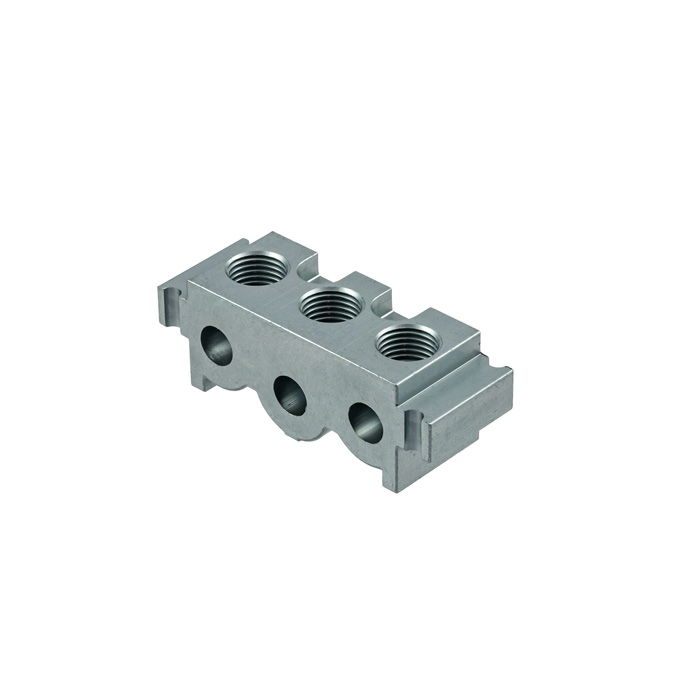

![[146736] RIEGLER Intermediate plate, G 1/8, base plate system](/web/image/product.template/275987/image_128/%5B146736%5D%20RIEGLER%20Intermediate%20plate%2C%20G%201-8%2C%20base%20plate%20system?unique=06124ef)
|
Typennummer: 0226004300 |
15.40 € | |
