RIEGLER 5/3-way valve, pneumatic, G 1/2, mid-position closed
Type number: 516.601
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 5/3-way valve for pneumatic control, G 1/2 - Type 516.601
The RIEGLER 5/3-way valve, pneumatic, G 1/2, center closed controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The temperature range extends between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 4600 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Control pressure min. | 2.5 bar |
| Control pressure max. | 10 bar |
| Operating pressure | Vacuum up to 10 bar |
| DN | 15 |
| Function | 5/3 |
| Actuation | Center closed |

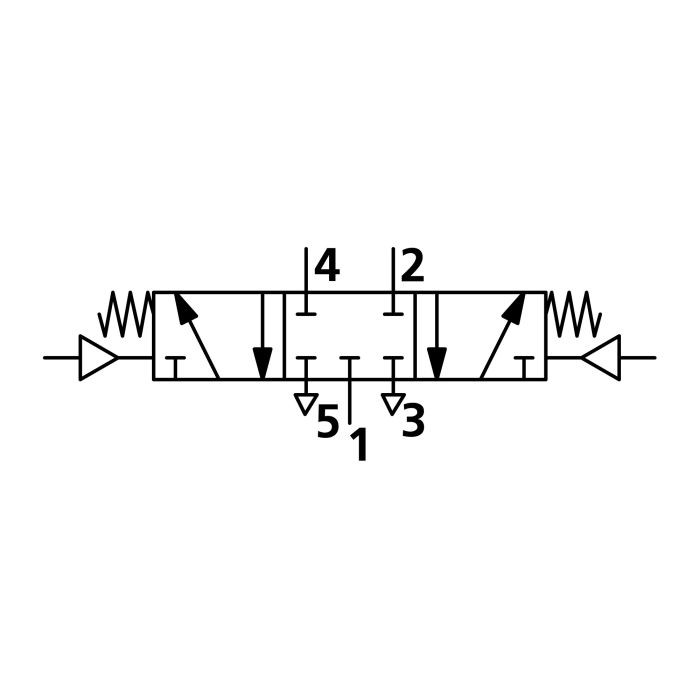

| Symbol | 29 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 |
| RoHS material information | RoHS compliant |
| Flow rate | 3200 Nl/min |
| Flow rate | 4600 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
