RIEGLER 5/3-way valve, electropneum., centre vented, G 1/8, 230 V AC
Type number: 517.314
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106580EAN :
4047322097833Category :
Valves Electropneumatically OperatedWeight :
0.32 kg5/3-way valve, electropneumatic, center vented, connection G 1/8, DN 5, 230 V AC, 50/60 Hz, aluminium
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 5 |
| Function | 5/3 |
| Actuation | Center vented |
| Symbol | 38 |
| Tension | 230 V AC, 50/60 Hz |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and ˆ†p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and ˆ†p 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[145715] RIEGLER 5/3-way valve, electropneumatic, center closed, G 1/8](/web/image/product.template/279342/image_128/%5B145715%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20closed%2C%20G%201-8?unique=24772ff)
|
Type number: 7010022100 |
106.05 € | |
![[145868] RIEGLER 5/3-way valve, electropneumatic, center-closed, G 1/8, 110 V AC](/web/image/product.template/275792/image_128/%5B145868%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center-closed%2C%20G%201-8%2C%20110%20V%20AC?unique=2392bb2)
|
Type number: 517.53.18.CC.110A |
119.02 € | |
![[145866] RIEGLER 5/3-way valve, electropneumatic, center-closed, G 1/8, 12 V DC](/web/image/product.template/275790/image_128/%5B145866%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center-closed%2C%20G%201-8%2C%2012%20V%20DC?unique=f4ee1e2)
|
Type number: 517.53.18.CC.12D |
119.02 € | |
![[145867] RIEGLER 5/3-way valve, electropneumatic, center-closed, G 1/8, 24 V AC](/web/image/product.template/275791/image_128/%5B145867%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center-closed%2C%20G%201-8%2C%2024%20V%20AC?unique=f525987)
|
Type number: 517.53.18.CC.24A |
119.02 € | |
![[145723] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8](/web/image/product.template/279350/image_128/%5B145723%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8?unique=3e033fd)
|
Type number: 7010022300 |
106.05 € | |
![[145719] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8](/web/image/product.template/279346/image_128/%5B145719%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8?unique=1f001eb)
|
Type number: 7010022200 |
106.05 € | |
![[145874] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8, 110 V AC](/web/image/product.template/275798/image_128/%5B145874%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8%2C%20110%20V%20AC?unique=588d4cd)
|
Type number: 517.53.18.PC.110A |
119.02 € | |
![[145871] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8, 110 V AC](/web/image/product.template/275795/image_128/%5B145871%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8%2C%20110%20V%20AC?unique=4b063a7)
|
Type number: 517.53.18.OC.110A |
119.02 € | |
![[145872] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8, 12 V DC](/web/image/product.template/275796/image_128/%5B145872%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8%2C%2012%20V%20DC?unique=d2f3a5e)
|
Type number: 517.53.18.PC.12D |
119.02 € | |
![[145869] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8, 12 V DC](/web/image/product.template/275793/image_128/%5B145869%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8%2C%2012%20V%20DC?unique=d599986)
|
Type number: 517.53.18.OC.12D |
119.02 € | |
![[145870] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8, 24 V AC](/web/image/product.template/275794/image_128/%5B145870%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8%2C%2024%20V%20AC?unique=a059693)
|
Type number: 517.53.18.OC.24A |
119.02 € | |
![[145873] RIEGLER 5/3-way valve, electropneumatic, center vented, G 1/8, 24 V AC](/web/image/product.template/275797/image_128/%5B145873%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20center%20vented%2C%20G%201-8%2C%2024%20V%20AC?unique=76d9202)
|
Type number: 517.53.18.PC.24A |
119.02 € | |
![[147129] RIEGLER 5/3-way valve, electropneumatic, external control, center closed, G 1/8](/web/image/product.template/284071/image_128/%5B147129%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20external%20control%2C%20center%20closed%2C%20G%201-8?unique=3a91723)
|
Typennummer: 7010022400 |
111.90 € | |
![[147137] RIEGLER 5/3-way valve, electropneumatic, external control, center vented, G 1/8](/web/image/product.template/284079/image_128/%5B147137%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20external%20control%2C%20center%20vented%2C%20G%201-8?unique=662e893)
|
Typennummer: 7010022600 |
111.90 € | |
![[147133] RIEGLER 5/3-way valve, electropneumatic, external control, center vented, G 1/8](/web/image/product.template/284075/image_128/%5B147133%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20external%20control%2C%20center%20vented%2C%20G%201-8?unique=dc7f79f)
|
Typennummer: 7010022500 |
111.90 € | |
![[106588] RIEGLER 5/3-way valve, electropneum., centre aerated, G 1/8, 230 V AC](/web/image/product.template/175645/image_128/%5B106588%5D%20RIEGLER%205-3-way%20valve%2C%20electropneum.%2C%20centre%20aerated%2C%20G%201-8%2C%20230%20V%20AC?unique=17f1c7e)
|
Type number: 517.324 |
119.02 € | |
![[106584] RIEGLER 5/3-way valve, electropneum., Centre aerated, G 1/8, 24 V DC](/web/image/product.template/175641/image_128/%5B106584%5D%20RIEGLER%205-3-way%20valve%2C%20electropneum.%2C%20Centre%20aerated%2C%20G%201-8%2C%2024%20V%20DC?unique=b36750d)
|
Type number: 517.321 |
119.02 € | |
![[106572] RIEGLER 5/3-way valve, electropneum., centre closed, G 1/8, 230 V AC](/web/image/product.template/175629/image_128/%5B106572%5D%20RIEGLER%205-3-way%20valve%2C%20electropneum.%2C%20centre%20closed%2C%20G%201-8%2C%20230%20V%20AC?unique=8158928)
|
Type number: 517.304 |
119.02 € | |
![[106568] RIEGLER 5/3-way valve, electropneum., Centre closed, G 1/8, 24 V DC](/web/image/product.template/175625/image_128/%5B106568%5D%20RIEGLER%205-3-way%20valve%2C%20electropneum.%2C%20Centre%20closed%2C%20G%201-8%2C%2024%20V%20DC?unique=229c080)
|
Type number: 517.301 |
119.02 € | |
![[106576] RIEGLER 5/3-way valve, electropneum., Centre vented, G 1/8, 24 V DC](/web/image/product.template/175633/image_128/%5B106576%5D%20RIEGLER%205-3-way%20valve%2C%20electropneum.%2C%20Centre%20vented%2C%20G%201-8%2C%2024%20V%20DC?unique=eccc706)
|
Type number: 517.311 |
119.02 € | |
![[147359] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 110VAC](/web/image/product.template/284254/image_128/%5B147359%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%20110VAC?unique=f9b0cc4)
|
Typennummer: 517.53.18.E.PC.110A |
124.95 € | |
![[147351] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 12 VDC](/web/image/product.template/284246/image_128/%5B147351%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%2012%20VDC?unique=898318d)
|
Typennummer: 517.53.18.E.PC.12D |
124.95 € | |
![[147331] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 12VDC](/web/image/product.template/284226/image_128/%5B147331%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%2012VDC?unique=3342d7b)
|
Typennummer: 517.53.18.E.OC.12D |
124.95 € | |
![[147347] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 230VAC](/web/image/product.template/284242/image_128/%5B147347%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%20230VAC?unique=b18a2ad)
|
Typennummer: 517.53.18.E.PC.230A |
124.95 € | |
![[147355] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 24 VAC](/web/image/product.template/284250/image_128/%5B147355%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%2024%20VAC?unique=3a791bb)
|
Typennummer: 517.53.18.E.PC.24A |
124.95 € | |
![[147335] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 24VAC](/web/image/product.template/284230/image_128/%5B147335%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%2024VAC?unique=e17cade)
|
Typennummer: 517.53.18.E.OC.24A |
124.95 € | |
![[147343] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 24 VDC](/web/image/product.template/284238/image_128/%5B147343%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%2024%20VDC?unique=d62ed52)
|
Typennummer: 517.53.18.E.PC.24D |
124.95 € | |
![[147323] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/8, 24VDC](/web/image/product.template/284218/image_128/%5B147323%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-8%2C%2024VDC?unique=45ac11d)
|
Typennummer: 517.53.18.E.OC.24D |
124.95 € | |
![[147319] RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 110VAC](/web/image/product.template/284214/image_128/%5B147319%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20closed%2C%20G%201-8%2C%20110VAC?unique=ef0bc6f)
|
Typennummer: 517.53.18.E.CC.110A |
124.95 € | |
![[147311] RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 12 VDC](/web/image/product.template/284206/image_128/%5B147311%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20closed%2C%20G%201-8%2C%2012%20VDC?unique=fb2ecae)
|
Typennummer: 517.53.18.E.CC.12D |
124.95 € | |
![[147307] RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 230VAC](/web/image/product.template/284202/image_128/%5B147307%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20closed%2C%20G%201-8%2C%20230VAC?unique=f3aef4a)
|
Typennummer: 517.53.18.E.CC.230A |
124.95 € | |
![[147315] RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 24 VAC](/web/image/product.template/284210/image_128/%5B147315%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20closed%2C%20G%201-8%2C%2024%20VAC?unique=77d43ca)
|
Typennummer: 517.53.18.E.CC.24A |
124.95 € | |
![[147303] RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 24 VDC](/web/image/product.template/284198/image_128/%5B147303%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20closed%2C%20G%201-8%2C%2024%20VDC?unique=b172e13)
|
Typennummer: 517.53.18.E.CC.24D |
124.95 € | |
![[147339] RIEGLER 5/3-way valve, elpn, external control, center drain, G 1/8, 110 V AC](/web/image/product.template/284234/image_128/%5B147339%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20drain%2C%20G%201-8%2C%20110%20V%20AC?unique=6cf2c88)
|
Typennummer: 517.53.18.E.OC.110A |
124.95 € | |
![[147327] RIEGLER 5/3-way valve, elpn, external control, center drain, G 1/8, 230 V AC](/web/image/product.template/284222/image_128/%5B147327%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20drain%2C%20G%201-8%2C%20230%20V%20AC?unique=b682875)
|
Typennummer: 517.53.18.E.OC.230A |
124.95 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106604] RIEGLER Mounting bracket set for way valves, Height 120 mm, G 1/8](/web/image/product.template/175661/image_128/%5B106604%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%20120%20mm%2C%20G%201-8?unique=c07cdef)
|
Type number: 518.120-18 |
16.81 € | |
![[106605] RIEGLER Mounting bracket set for way valves, Height 60 mm, G 1/8](/web/image/product.template/175662/image_128/%5B106605%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2060%20mm%2C%20G%201-8?unique=920d1eb)
|
Type number: 518.60-18 |
15.40 € | |
![[106606] RIEGLER Mounting bracket set for way valves, Height 30 mm, G 1/8](/web/image/product.template/175663/image_128/%5B106606%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2030%20mm%2C%20G%201-8?unique=cd52e59)
|
Type number: 518.30-18 |
15.40 € | |
![[106610] RIEGLER Supply strip for the way valves, with 2 valve positions, G 1/8](/web/image/product.template/175667/image_128/%5B106610%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%202%20valve%20positions%2C%20G%201-8?unique=4758217)
|
Type number: 518.02-18 |
14.66 € | |
![[106611] RIEGLER Supply strip for the way valves, with 3 valve positions, G 1/8](/web/image/product.template/175668/image_128/%5B106611%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%203%20valve%20positions%2C%20G%201-8?unique=545bbe3)
|
Type number: 518.03-18 |
20.06 € | |
![[106612] RIEGLER Supply strip for the way valves, with 4 valve positions, G 1/8](/web/image/product.template/175669/image_128/%5B106612%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%204%20valve%20positions%2C%20G%201-8?unique=a68f6ca)
|
Type number: 518.04-18 |
24.69 € | |
![[106613] RIEGLER Supply strip for the way valves, with 5 valve positions, G 1/8](/web/image/product.template/175670/image_128/%5B106613%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%205%20valve%20positions%2C%20G%201-8?unique=a71b33e)
|
Type number: 518.05-18 |
29.94 € | |
![[106614] RIEGLER Supply strip for the way valves, with 6 valve positions, G 1/8](/web/image/product.template/175671/image_128/%5B106614%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%206%20valve%20positions%2C%20G%201-8?unique=0180b66)
|
Type number: 518.06-18 |
38.00 € | |
![[106615] RIEGLER Supply strip for the way valves, with 7 valve positions, G 1/8](/web/image/product.template/175672/image_128/%5B106615%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%207%20valve%20positions%2C%20G%201-8?unique=021d4c7)
|
Type number: 518.07-18 |
47.09 € | |
![[106622] RIEGLER Multi-base plate for the way valves, 2 valve positions, G 1/8](/web/image/product.template/175679/image_128/%5B106622%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%202%20valve%20positions%2C%20G%201-8?unique=80bd4c3)
|
Type number: 520.02-18 |
46.54 € | |
![[106623] RIEGLER Multi-base plate for the way valves, 3 valve positions, G 1/8](/web/image/product.template/175680/image_128/%5B106623%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%203%20valve%20positions%2C%20G%201-8?unique=7c60de4)
|
Type number: 520.03-18 |
57.17 € | |
![[106624] RIEGLER Multi-base plate for the way valves, 4 valve positions, G 1/8](/web/image/product.template/175681/image_128/%5B106624%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%204%20valve%20positions%2C%20G%201-8?unique=26aeb4a)
|
Type number: 520.04-18 |
68.00 € | |
![[106625] RIEGLER Multi-base plate for the way valves, 5 valve positions, G 1/8](/web/image/product.template/175682/image_128/%5B106625%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%205%20valve%20positions%2C%20G%201-8?unique=a909ad5)
|
Type number: 520.05-18 |
77.43 € | |
![[106626] RIEGLER Multi-base plate for the way valves, 6 valve positions, G 1/8](/web/image/product.template/175683/image_128/%5B106626%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%206%20valve%20positions%2C%20G%201-8?unique=4e439d9)
|
Type number: 520.06-18 |
92.87 € | |
![[106627] RIEGLER Multi-base plate for the way valves, 7 valve positions, G 1/8](/web/image/product.template/175684/image_128/%5B106627%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%207%20valve%20positions%2C%20G%201-8?unique=b3b10ef)
|
Type number: 520.07-18 |
101.44 € | |
![[106628] RIEGLER Multi-base plate for the way valves, 8 valve positions, G 1/8](/web/image/product.template/175685/image_128/%5B106628%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%208%20valve%20positions%2C%20G%201-8?unique=ed6f9a6)
|
Type number: 520.08-18 |
116.42 € | |
![[106629] RIEGLER Multi-base plate for the way valves, 9 valve positions, G 1/8](/web/image/product.template/175686/image_128/%5B106629%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%209%20valve%20positions%2C%20G%201-8?unique=6ba311e)
|
Type number: 520.09-18 |
139.68 € | |
![[106630] RIEGLER Multi-base plate for the way valves, 10 valve positions, G 1/8](/web/image/product.template/175687/image_128/%5B106630%5D%20RIEGLER%20Multi-base%20plate%20for%20the%20way%20valves%2C%2010%20valve%20positions%2C%20G%201-8?unique=1dd01f3)
|
Type number: 520.10-18 |
174.50 € | |
![[146733] RIEGLER Modular base plate for valves G 1/8, base plate system](/web/image/product.template/275984/image_128/%5B146733%5D%20RIEGLER%20Modular%20base%20plate%20for%20valves%20G%201-8%2C%20base%20plate%20system?unique=d75980e)
|
Typennummer: 0226004150 |
15.86 € | |
![[146734] RIEGLER Outlet plate without seals, G 1/8, base plate system](/web/image/product.template/275985/image_128/%5B146734%5D%20RIEGLER%20Outlet%20plate%20without%20seals%2C%20G%201-8%2C%20base%20plate%20system?unique=0a011b5)
|
Typennummer: 0226004201 |
11.52 € | |
![[146735] RIEGLER Inlet plate with seals, G 1/8, base plate system](/web/image/product.template/275986/image_128/%5B146735%5D%20RIEGLER%20Inlet%20plate%20with%20seals%2C%20G%201-8%2C%20base%20plate%20system?unique=142ecce)
|
Typennummer: 0226004200 |
14.92 € | |
![[146736] RIEGLER Intermediate plate, G 1/8, base plate system](/web/image/product.template/275987/image_128/%5B146736%5D%20RIEGLER%20Intermediate%20plate%2C%20G%201-8%2C%20base%20plate%20system?unique=efb8e26)
|
Typennummer: 0226004300 |
15.40 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[151011] RIEGLER Appliance plug with LED, 110 V, 22 mm, type B](/web/image/product.template/276002/image_128/%5B151011%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20110%20V%2C%2022%20mm%2C%20type%20B?unique=e271e25)
|
Typennummer: 1920.9PL110 |
6.47 € | |
![[117314] RIEGLER Appliance plug with LED, 230 V, 22 mm, type B](/web/image/product.template/274840/image_128/%5B117314%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20230%20V%2C%2022%20mm%2C%20type%20B?unique=a79e66c)
|
Type number: 1920.9PL.17 |
6.47 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=96adf89)
|
Type number: 1920.9P |
1.50 € | |

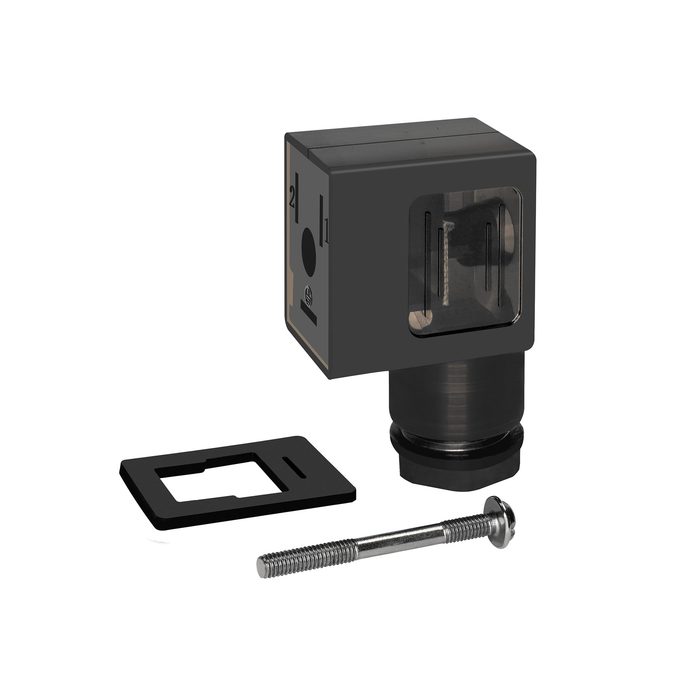

![[123182] RIEGLER Device plug, 22 mm, type B, ATEX II 2 GD](/web/image/product.template/281003/image_128/%5B123182%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B%2C%20ATEX%20II%202%20GD?unique=3572fd0)
|
Type number: 1920.9PL2GD-EX |
2.40 € | |
![[117316] RIEGLER Device plug with LED, 24 V, 22 mm, type B](/web/image/product.template/274841/image_128/%5B117316%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%2024%20V%2C%2022%20mm%2C%20type%20B?unique=901288a)
|
Type number: 1920.9PL.42 |
6.47 € | |
![[129849] RIEGLER Device plug with LED, varistor 110 V, 22 mm, type B](/web/image/product.template/273069/image_128/%5B129849%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20110%20V%2C%2022%20mm%2C%20type%20B?unique=d422cad)
|
Type number: 1920.9PLV110 |
6.47 € | |
![[117317] RIEGLER Device plug with LED, varistor 230 V, 22 mm, type B](/web/image/product.template/274842/image_128/%5B117317%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20230%20V%2C%2022%20mm%2C%20type%20B?unique=56cff88)
|
Type number: 1920.9PLV17 |
6.47 € | |
![[117318] RIEGLER Device plug with LED, varistor 24 V, 22 mm, type B](/web/image/product.template/274843/image_128/%5B117318%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%2024%20V%2C%2022%20mm%2C%20type%20B?unique=1bab42b)
|
Type number: 1920.9PLV42 |
6.47 € | |
![[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275045/image_128/%5B118629%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=6d097d7)
|
Type number: 400-514-07 |
10.00 € | |
![[118634] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280914/image_128/%5B118634%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=b9a3372)
|
Type number: 400-517-07 |
10.00 € | |
![[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=74efb62)
|
Type number: 400-514-41 |
10.00 € | |
![[118636] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 5 W](/web/image/product.template/280916/image_128/%5B118636%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%205%20W?unique=bb65f21)
|
Type number: 400-517-41 |
10.00 € | |
![[118630] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275046/image_128/%5B118630%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=77cf3d4)
|
Type number: 400-514-17 |
10.00 € | |
![[118635] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280915/image_128/%5B118635%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=3463ac7)
|
Type number: 400-517-17 |
10.00 € | |

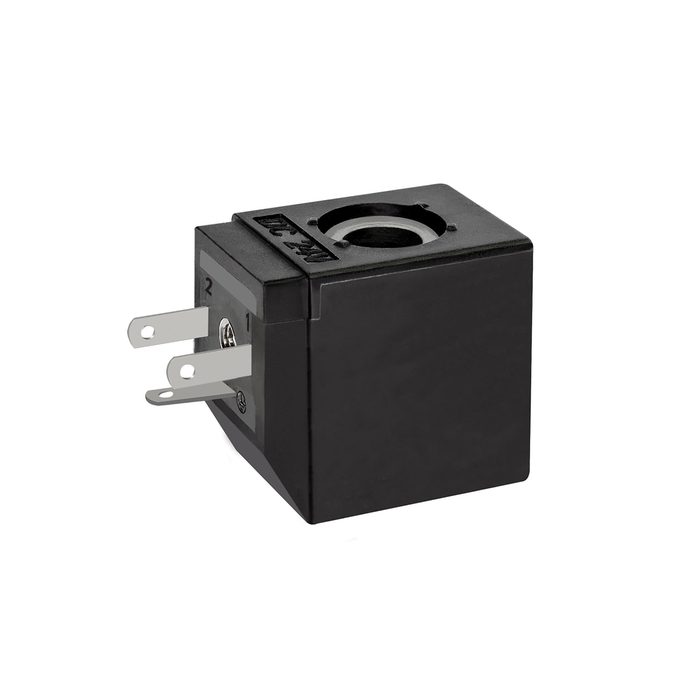

![[118628] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275044/image_128/%5B118628%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=e64cf04)
|
