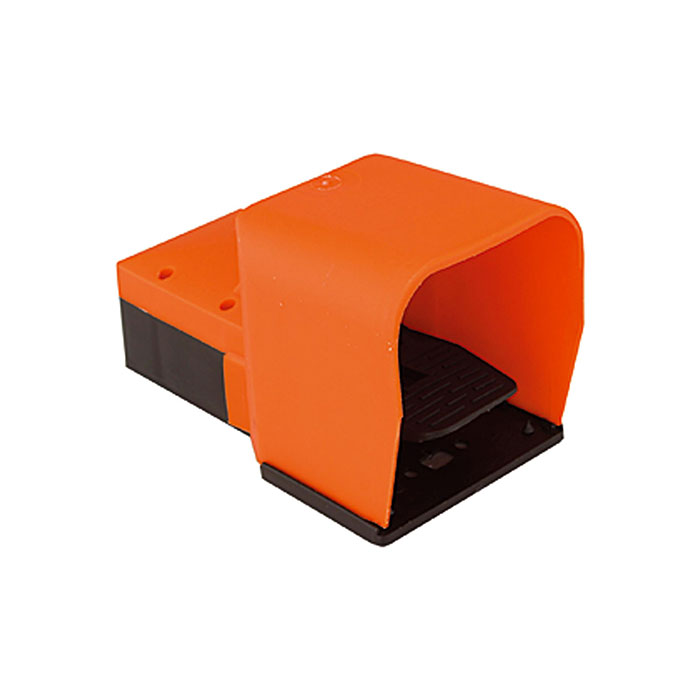

RIEGLER 3/2-way foot valve, bistable, engaging with foot guard, M5
Type number: 513.104
EAN: 4047322096560
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way foot valve, bistable, latching, with foot protection, connection M5, operating pressure 2.5 - 10 bar, temp. -10 °C to 60 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Series | Valves PEV series |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Symbol | 21 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| Flow rate | 60 Nl/min |
| Flow rate | 95 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6.3 bar and Î "p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6.3 bar and Î "p 1.0 bar |
| Class name | PLUS |
