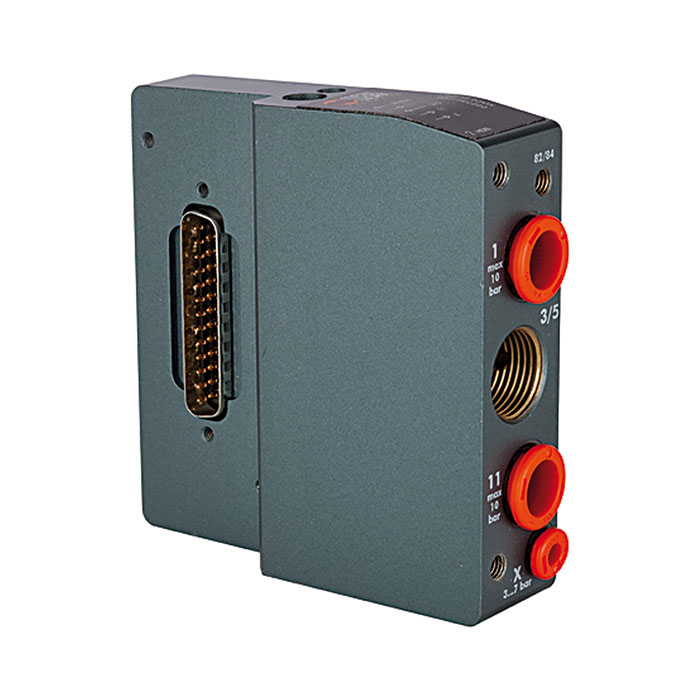

RIEGLER Input plate for valve terminal HDM, int. control air, Profibus DP
Type number: P-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Input plate for valve terminal HDM made of aluminum, max. 7 bar, with integrated Profibus DP - type P-3
The RIEGLER input plate for valve terminal HDM, int. control air, Profibus DP bundles several pneumatic valves on a common base plate. The housing is made of aluminum. The operating pressure range is 3 bar to 7 bar. The temperature range is between -10 °C and 60 °C. Connection thread with integrated Profibus DP - suitable for common industry standards. Power consumption 0.6 W per actuation, protection class IP 65. Central valve control with minimal installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Power consumption | 0.6 W per actuation |
| Protection class | IP 65 |
| Operating pressure min. | 3 bar |
| Max. operating pressure | 7 bar |
| Material | Aluminum |
| Control | up to 16 actuations (e.g. 16 spring-return valves) |
| Manual override | resting |
| Function | Standard, with internal control air |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | with integrated Profibus DP |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106673] RIEGLER Input plate for valve terminal HDM, ext. control air, Profibus DP](/web/image/product.template/175730/image_128/%5B106673%5D%20RIEGLER%20Input%20plate%20for%20valve%20terminal%20HDM%2C%20ext.%20control%20air%2C%20Profibus%20DP?unique=02c03d3)
|
Type number: P-2 |
564.68 € | |
![[106671] RIEGLER Input plate for valve terminal HDM external control air, Multipol](/web/image/product.template/175728/image_128/%5B106671%5D%20RIEGLER%20Input%20plate%20for%20valve%20terminal%20HDM%20external%20control%20air%2C%20Multipol?unique=292bc5e)
|
Type number: 2-8 |
74.51 € | |
![[106670] RIEGLER Input plate for valve terminal HDM interior control air, Multipol](/web/image/product.template/175727/image_128/%5B106670%5D%20RIEGLER%20Input%20plate%20for%20valve%20terminal%20HDM%20interior%20control%20air%2C%20Multipol?unique=5079b0e)
|
Type number: 3-8 |
80.03 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

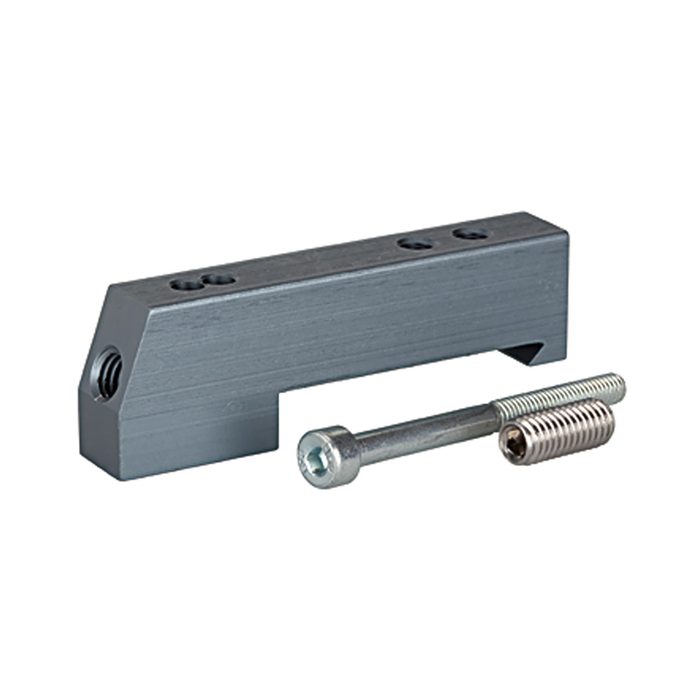

![[106699] RIEGLER Adapter for DIN top hat rails](/web/image/product.template/175756/image_128/%5B106699%5D%20RIEGLER%20Adapter%20for%20DIN%20top%20hat%20rails?unique=7260b0e)
|
