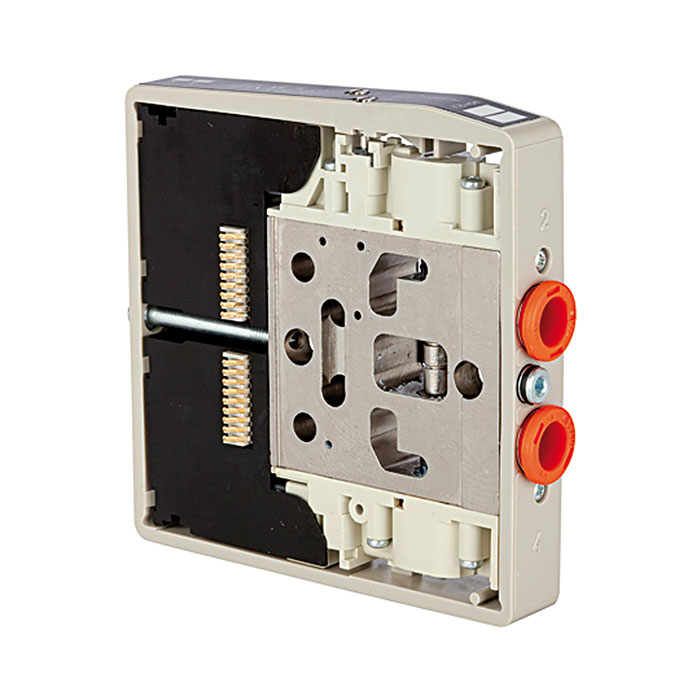

RIEGLER Valve disc HDM Connection 8mm 2x3/2 NO mono or 5/3 centre aerated
Type number: W 8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Valve disc HDM made of aluminum, for pneumatic control - type W 8
The RIEGLER valve disc HDM, connection 8mm, 2x3/2 NO mono or 5/3 center loaded bundles several pneumatic valves on a common base plate. The housing is made of aluminum. The temperature range is between -10 °C and 60 °C. The flow rate is 800 Nl/min. Power consumption 0.6 W per actuation, protection class IP 65. Central valve control with minimum installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Power consumption | 0.6 W per actuation |
| Protection class | IP 65 |
| Material | Aluminum |
| Control | up to 16 actuations (e.g. 16 spring-return valves) |
| Manual override | resting |
| Function | 2 x 3/2-way, NO, monostable or 5/3-way, center vented |
| Flow rate | 800 Nl/min |
| Class name | MAX |
