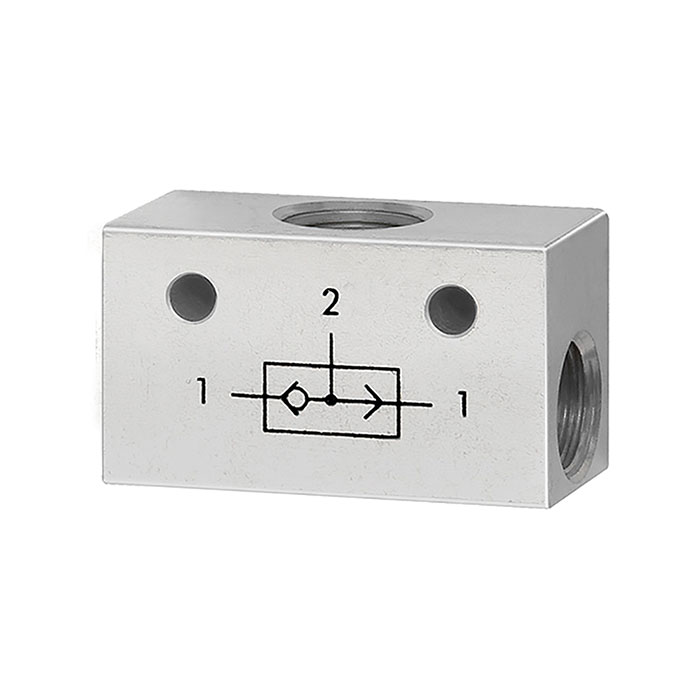

RIEGLER OR valve, 3 x G 1/8 Aluminium
Type number: ODER-18
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
OR valve, 3 x G 1/8, operating pressure 2 - 10 bar, temperature range -10 °C to 80 °C, aluminum
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 10 bar |
| Ball | Stainless steel |
| Valve body | Aluminum |
| Thread | 3 x G 1/8 |

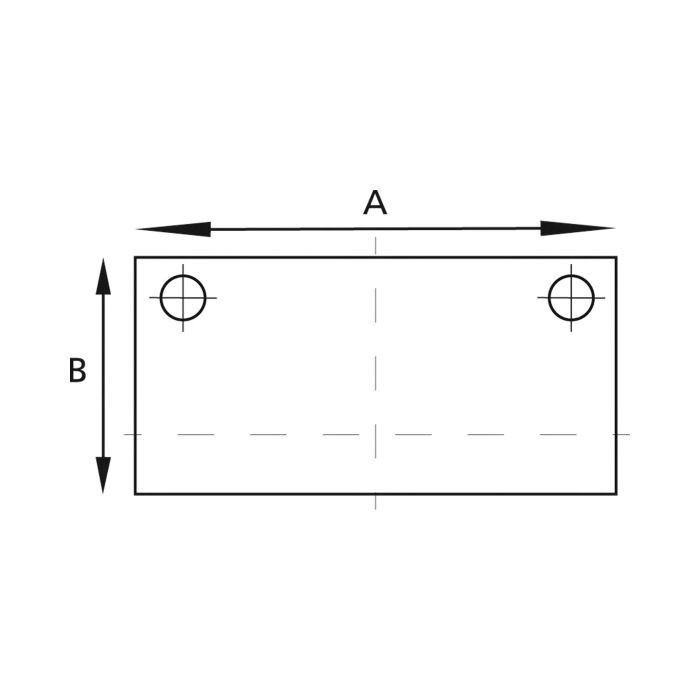

| A | 36 mm |
| B | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 500 Nl/min |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
