RIEGLER Unidirect. flow control valve, Flow one-sided, hose-hose, hose Ø4
Type number: 410-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106714EAN :
4047322085090Weight :
0.01 kgRIEGLER One-way throttle check valve for pneumatic control, max. 10 bar - Type 410-4
The RIEGLER one-way throttle check valve, hose-to-hose, Ø 4, regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range extends between -20 °C and 60 °C. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Adjustment | manually or with a screwdriver |
| Function | Exhaust air throttling |
| for hose Ø | 4 mm |
| A | 42 mm |
| B | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar | 155 Nl/min |
| Vent flow rate at 6.3 | 160 Nl/min |
| I | 12.7 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106715] RIEGLER Unidirect. flow control valve, Flow one-sided, hose-hose, hose Ø6](/web/image/product.template/175772/image_128/%5B106715%5D%20RIEGLER%20Unidirect.%20flow%20control%20valve%2C%20Flow%20one-sided%2C%20hose-hose%2C%20hose%20%C3%986?unique=2576923)
|
Type number: 410-6 |
12.09 € | |

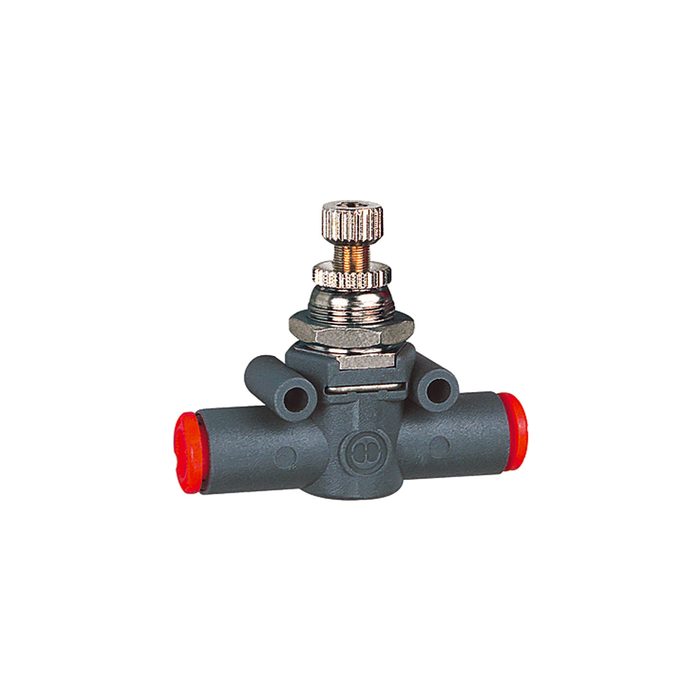

![[106716] RIEGLER Unidirect. flow control valve, Flow one-sided, hose-hose, hose Ø8](/web/image/product.template/175773/image_128/%5B106716%5D%20RIEGLER%20Unidirect.%20flow%20control%20valve%2C%20Flow%20one-sided%2C%20hose-hose%2C%20hose%20%C3%988?unique=b154a72)
|
