RIEGLER Pressure regulator »lineonline«, Hose - hose, for hose Ø 6 mm

https://www.filcom-technik.de/web/image/product.template/175798/image_1920?unique=c3e4eae

Type number: 420-6

28.55 € 28.55 EUR 28.55 € VAT Included

33.31 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

106741

EAN :

4047322085564

Category :

Mini Pressure Regulators and Function Connectors

Weight :

0.03 kg

RIEGLER Pressure regulator "lineonline" for pneumatic control, 1 bar - Type 420-6

The RIEGLER "lineonline" pressure regulator, hose-to-hose, for hose Ø 6 mm regulates the speed of pneumatic drives or blocks backflow. with NBR seals. The operating pressure range is 2 bar to 10 bar. The control range extends from 1 bar to 8 bar. The temperature range is between -20 °C and 60 °C. Infinitely variable speed control for smooth movement sequences.

Field of application

Typical areas of application: Speed control of pneumatic cylinders.

Temperature range min. -20 °C
Temperature range max. 60 °C
Sealing material NBR
Operating pressure min. 2 bar
Max. operating pressure 10 bar
Interior parts Nickel-plated brass, brass, technopolymer, stainless steel
Base body Technopolymer
Pneumatic symbols on the housing
Control range min. 1 bar
Control range max. 8 bar
for hose Ø 6 mm
A 49.4 mm
B 52 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
Flow rate at 6.3 bar 400 Nl/min
I 14.6 mm
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS

Variants / Alternatives

Product Price

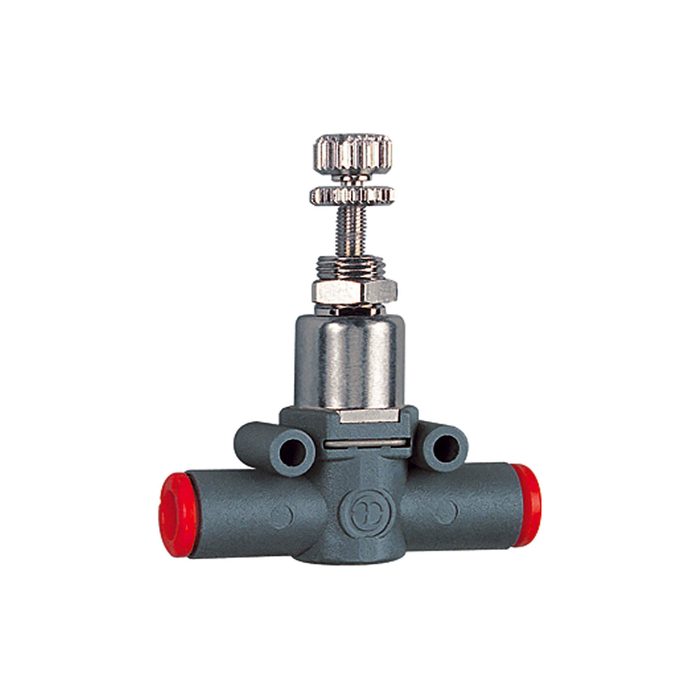

[106742] RIEGLER Pressure regulator »lineonline«, Hose - hose, for hose Ø 8 mm

Type number: 420-8

 30.81 €
