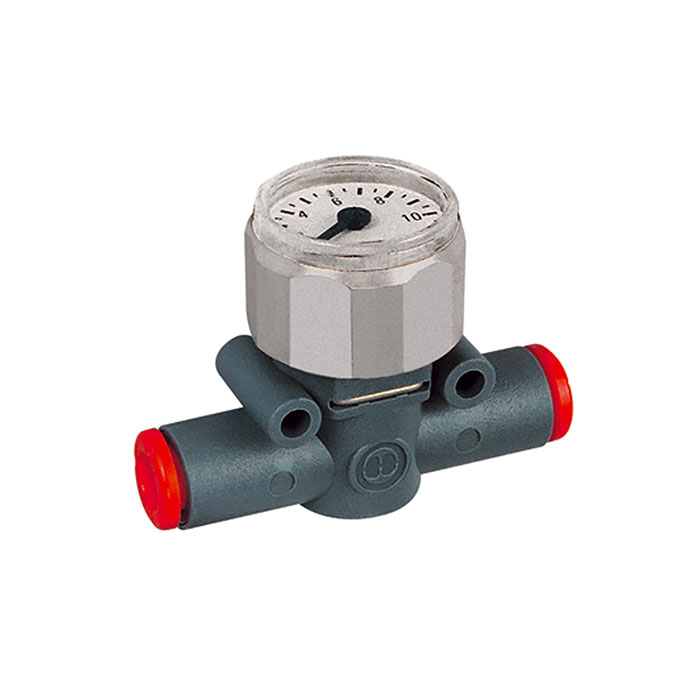

RIEGLER Pressure gauge »lineonline«, Hose - hose, for hose Ø 6 mm
Type number: 460-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106754EAN :
4047322091435Weight :
0.03 kgRIEGLER Pressure gauge "lineonline" for pneumatic control, max. 12 bar - Type 460-6
The RIEGLER "lineonline" pressure gauge, hose - hose, for hose Ø 6 regulates the speed of pneumatic drives or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 12 bar. The temperature range is between -20 °C and 60 °C. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Measuring accuracy | +/- 4 % of the full scale value |
| Scaling | 0 - 12 bar |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 12 |
| for hose Ø | 6 mm |
| A | 49 mm |
| B | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| I | 14.6 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
