RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), M5, hose Ø 4
Type number: 461.005-4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106756EAN :
4047322389815Weight :
0.03 kgPressure gauge »lineonline«, Thread (inlet) - hose (outlet), M5, for hose Ø 4 mm, Operating pressure max. 12 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Measuring accuracy | +/- 4 % of the full scale value |
| Scaling | 0 - 12 bar |
| Thread | M5 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 12 |
| for hose Ø | 4 mm |
| A | 47.7 mm |
| B | 36.1 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| I | 12.8 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106760] RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6](/web/image/product.template/175817/image_128/%5B106760%5D%20RIEGLER%20Pressure%20gauge%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-4%2C%20hose%20%C3%98%206?unique=f701e49)
|
Type number: 461.014-6 |
27.39 € | |

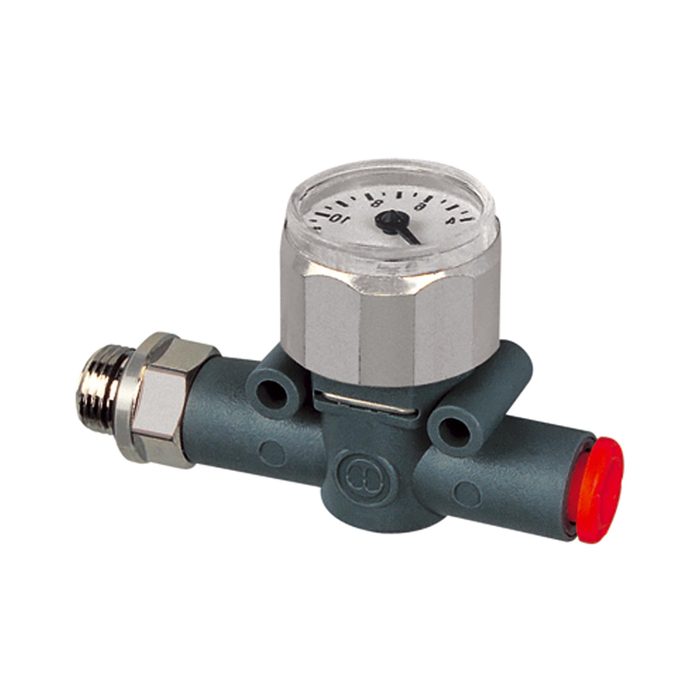

![[106761] RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 8](/web/image/product.template/175818/image_128/%5B106761%5D%20RIEGLER%20Pressure%20gauge%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-4%2C%20hose%20%C3%98%208?unique=cd6d81a)
|
