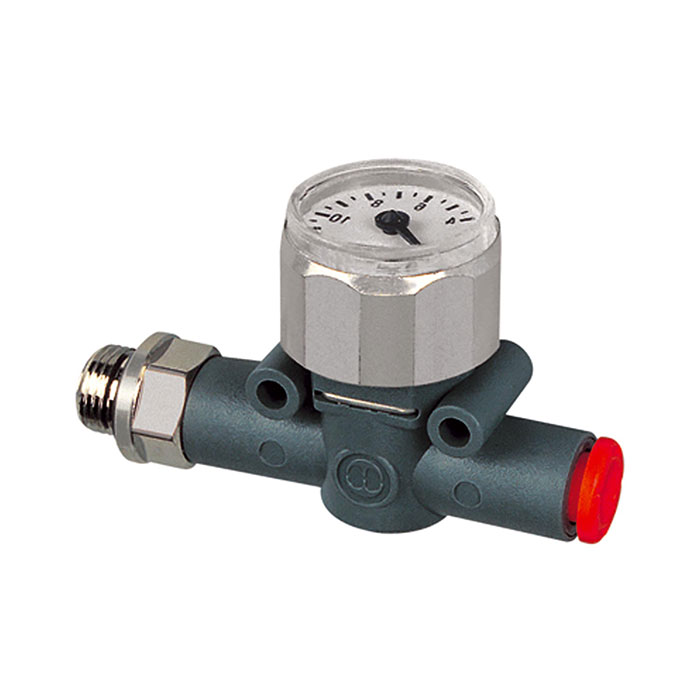

RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6
Type number: 461.014-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106760EAN :
4047322091510Weight :
0.04 kgRIEGLER Pressure gauge for pneumatic control, max. 12 bar, G 1/4 - Type 461.014-6
The RIEGLER pressure gauge, thread (in.) - hose (out.), G 1/4, Ø 6 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 12 bar. The temperature range is between -20 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Measuring accuracy | +/- 4 % of the full scale value |
| Scaling | 0 - 12 bar |
| Thread | G 1/4 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 12 |
| for hose Ø | 6 mm |
| A | 61.3 mm |
| B | 35 mm |
| I | 14.6 mm |
| Class name | PLUS |
