RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 3/8, fhose Ø 8
Type number: 461.038-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106762EAN :
4047322091558Weight :
0.07 kgRIEGLER Pressure gauge for pneumatic control, max. 12 bar, G 3/8 - Type 461.038-8
The RIEGLER pressure gauge, thread (in.) - hose (out.), G 3/8, Ø 8 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 12 bar. The temperature range is between -20 °C and 60 °C. G 3/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Measuring accuracy | +/- 4 % of the full scale value |
| Scaling | 0 - 12 bar |
| Thread | G 3/8 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 12 |
| for hose Ø | 8 mm |
| A | 72.4 mm |
| B | 41.1 mm |
| I | 18.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106760] RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6](/web/image/product.template/175817/image_128/%5B106760%5D%20RIEGLER%20Pressure%20gauge%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-4%2C%20hose%20%C3%98%206?unique=32f16eb)
|
Type number: 461.014-6 |
27.02 € | |
![[106761] RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 8](/web/image/product.template/175818/image_128/%5B106761%5D%20RIEGLER%20Pressure%20gauge%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-4%2C%20hose%20%C3%98%208?unique=dfc5c5d)
|
Type number: 461.014-8 |
29.10 € | |

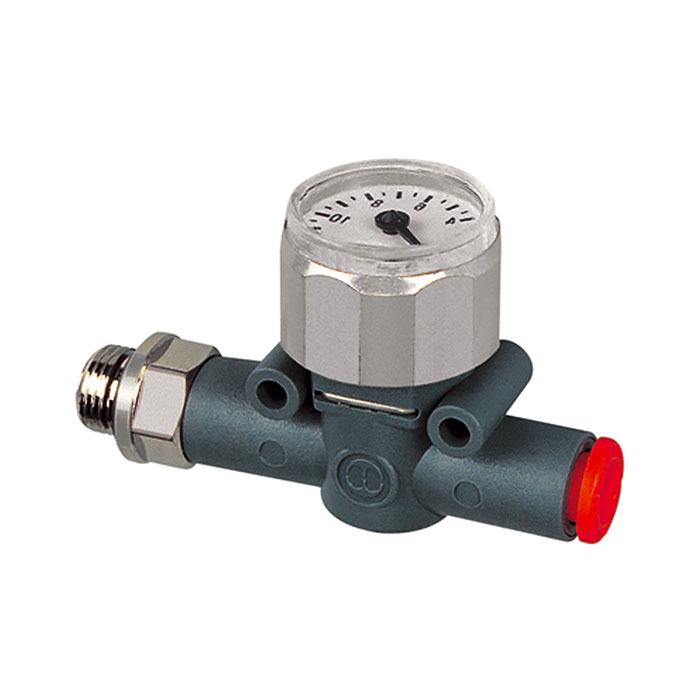

![[106757] RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/8, hose Ø 4](/web/image/product.template/175814/image_128/%5B106757%5D%20RIEGLER%20Pressure%20gauge%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-8%2C%20hose%20%C3%98%204?unique=9012695)
|
