RIEGLER Quick relief valve, Contr. venting, G1/8 (outlet), hose 6 (inlet)
Type number: 432.018-6
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106771EAN :
4047322087247Weight :
0.03 kgQuick exhaust valve "lineonline", guided exhaust, hose thread, G 1/8, for hose Ø 6 mm, operating pressure 1-10 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/8 |
| for hose Ø | 6 mm |
| A | 58.5 mm |
| B | 30.2 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar | 270 Nl/min |
| Vent flow rate at 6.3 | 700 Nl/min |
| I | 14.6 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106773] RIEGLER Quick relief valve, Contr. venting, G1/4 (outlet), hose 6 (inlet)](/web/image/product.template/175830/image_128/%5B106773%5D%20RIEGLER%20Quick%20relief%20valve%2C%20Contr.%20venting%2C%20G1-4%20%28outlet%29%2C%20hose%206%20%28inlet%29?unique=eb91da1)
|
Type number: 432.014-6 |
14.30 € | |
![[106774] RIEGLER Quick relief valve, Contr. venting, G1/4 (outlet), hose 8 (inlet)](/web/image/product.template/175831/image_128/%5B106774%5D%20RIEGLER%20Quick%20relief%20valve%2C%20Contr.%20venting%2C%20G1-4%20%28outlet%29%2C%20hose%208%20%28inlet%29?unique=0b74709)
|
Type number: 432.014-8 |
15.17 € | |
![[106770] RIEGLER Quick relief valve, Contr. venting, G1/8 (outlet), hose 4 (inlet)](/web/image/product.template/175827/image_128/%5B106770%5D%20RIEGLER%20Quick%20relief%20valve%2C%20Contr.%20venting%2C%20G1-8%20%28outlet%29%2C%20hose%204%20%28inlet%29?unique=cf85e51)
|
Type number: 432.018-4 |
13.79 € | |
![[106772] RIEGLER Quick relief valve, Contr. venting, G1/8 (outlet), hose 8 (inlet)](/web/image/product.template/175829/image_128/%5B106772%5D%20RIEGLER%20Quick%20relief%20valve%2C%20Contr.%20venting%2C%20G1-8%20%28outlet%29%2C%20hose%208%20%28inlet%29?unique=4dd3dd1)
|
Type number: 432.018-8 |
14.43 € | |

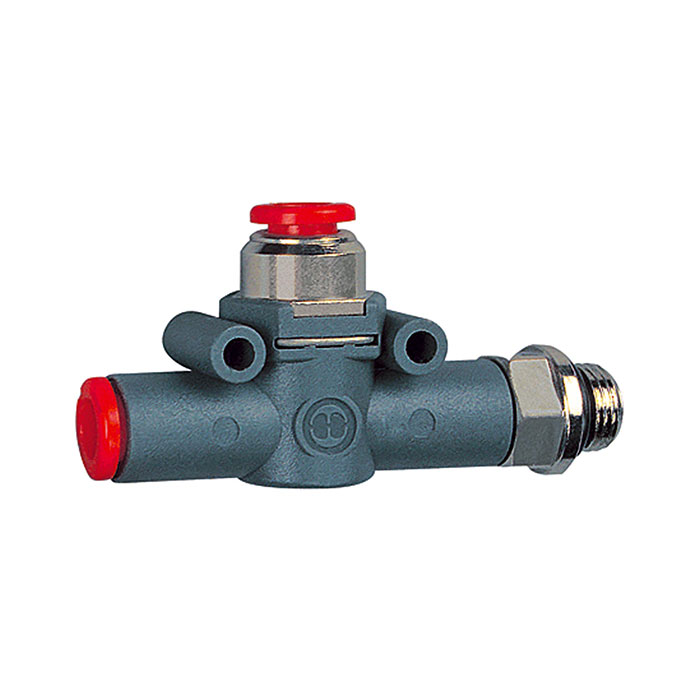

![[106775] RIEGLER Quick relief valve, Contr. venting, G3/8 (outlet), hose 8 (inlet)](/web/image/product.template/175832/image_128/%5B106775%5D%20RIEGLER%20Quick%20relief%20valve%2C%20Contr.%20venting%2C%20G3-8%20%28outlet%29%2C%20hose%208%20%28inlet%29?unique=724dd6f)
|
Type number: 432.038-8 |
16.55 € | |
![[106769] RIEGLER Quick relief valve, Contr. venting, M5 (outlet), hose 4 (inlet)](/web/image/product.template/175826/image_128/%5B106769%5D%20RIEGLER%20Quick%20relief%20valve%2C%20Contr.%20venting%2C%20M5%20%28outlet%29%2C%20hose%204%20%28inlet%29?unique=f733a2f)
|
Type number: 432.005-4 |
13.08 € | |
