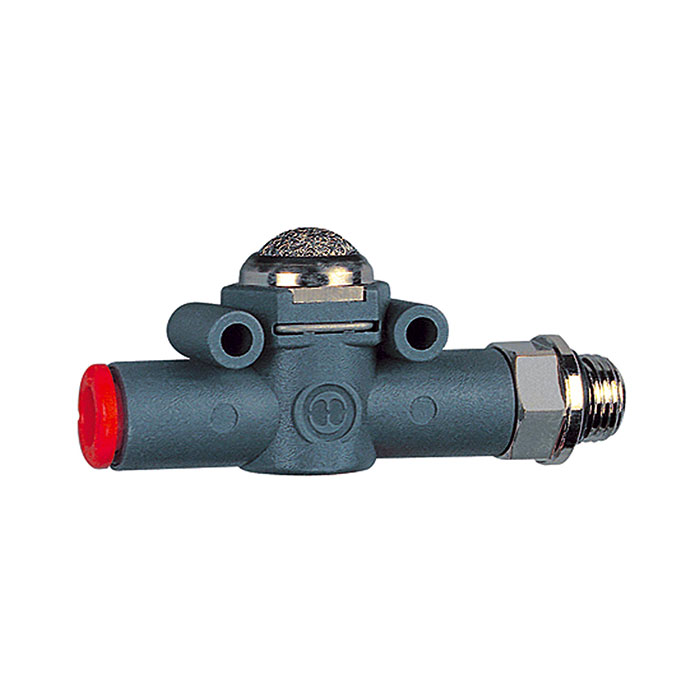

RIEGLER Quick relief valve »lineonline«, silencer, M5, for hose Ø 4 mm
Type number: 433.005-4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106776EAN :
4047322389877Weight :
0.00 kgQuick relief valve »lineonline«, with silencer, Hose - thread, M5, for hose Ø 4 mm, Operating pressure 1 - 10 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | M5 |
| for hose Ø | 4 mm |
| A | 46.7 mm |
| B | 19.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar | 50 Nl/min |
| Vent flow rate at 6.3 | 100 Nl/min |
| I | 12.8 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

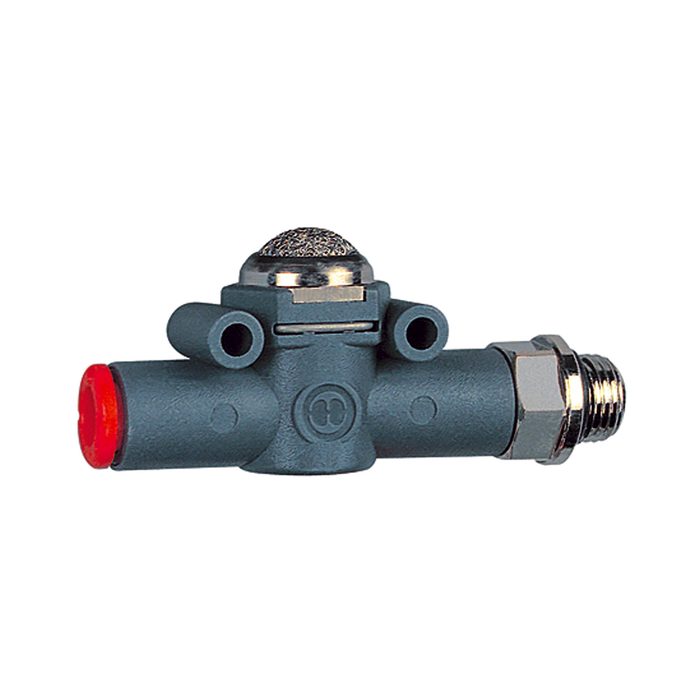

![[106780] RIEGLER Quick relief valve »lineonline«, silencer, G 1/4, for hose Ø 6 mm](/web/image/product.template/175837/image_128/%5B106780%5D%20RIEGLER%20Quick%20relief%20valve%20%C2%BBlineonline%C2%AB%2C%20silencer%2C%20G%201-4%2C%20for%20hose%20%C3%98%206%20mm?unique=e8e4899)
|
