RIEGLER Check valve »lineonline«, Hose - hose, for hose Ø 6 mm

Price:

11.79 €

English (US)
  2. Shop
  3. Mini Pressure Regulators and Function Connectors
  4. RIEGLER Check valve »lineonline«, Hose - hose, for hose Ø 6 mm
RIEGLER Compact pressure regulator, Push-in connector for hose 6, G 1/8
RIEGLER Compact pressure regulator, Push-in connector for hose 6, G 1/8
27.76 € 27.76 €
RIEGLER Quick relief valve »lineonline«, with silencer, for hose Ø 6 mm
RIEGLER Quick relief valve »lineonline«, with silencer, for hose Ø 6 mm
12.65 € 12.65 €

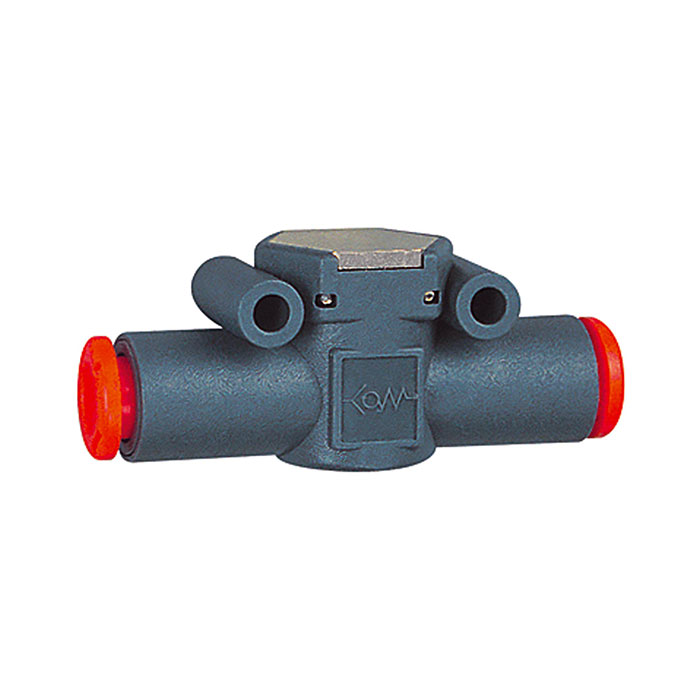

RIEGLER Check valve »lineonline«, Hose - hose, for hose Ø 6 mm

https://www.filcom-technik.de/web/image/product.template/175860/image_1920?unique=67425ef

Type number: 440-6

11.79 € 11.790000000000001 EUR 11.79 € VAT Included

13.75 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

106803

EAN :

4047322089098

Category :

Mini Pressure Regulators and Function Connectors

Weight :

0.02 kg

RIEGLER Check valve "lineonline" Hose-tube for pneumatic control, max. 12 bar - Type 440-6

The RIEGLER non-return valve "lineonline" hose-hose, for hose-Ø 6 regulates the speed of pneumatic drives or blocks backflow. with NBR seals. The operating pressure range is 0.5 bar to 12 bar. The temperature range is between -20 °C and 60 °C. Infinitely variable speed control for smooth movement sequences.

Field of application

Typical areas of application: Speed control of pneumatic cylinders.

Temperature range min. -20 °C
Temperature range max. 60 °C
Sealing material NBR
Operating pressure min. 0.5 bar
Max. operating pressure 12 bar
Interior parts Nickel-plated brass, brass, technopolymer, stainless steel
Base body Technopolymer
Pneumatic symbols on the housing
for hose Ø 6 mm
A 49 mm
B 20 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
Flow rate at 6.3 bar and Î "p 1.0 bar 320 Nl/min
I 14.6 mm
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS

Variants / Alternatives

Product Price
[106802] RIEGLER Check valve »lineonline«, Hose - hose, for hose Ø 4 mm

Type number: 440-4

 10.08 €

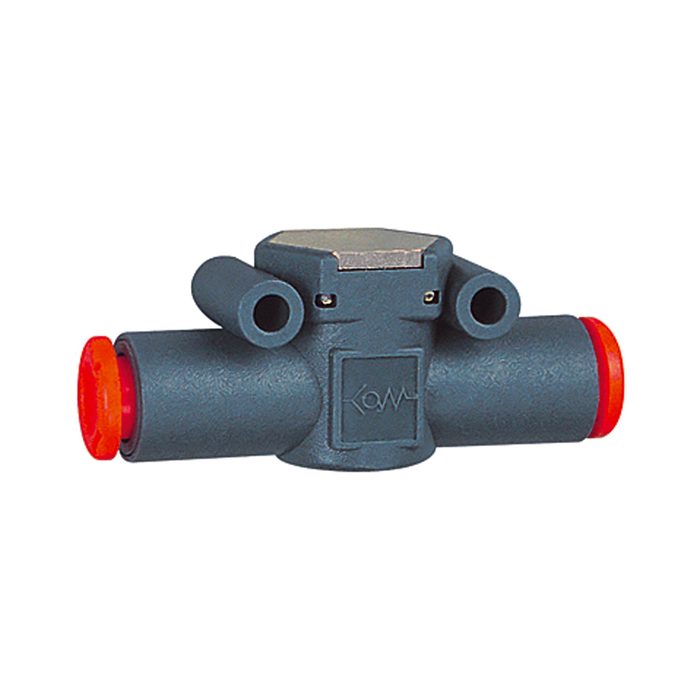

[106804] RIEGLER Check valve »lineonline«, Hose - hose, for hose Ø 8 mm

Type number: 440-8

 11.86 €
