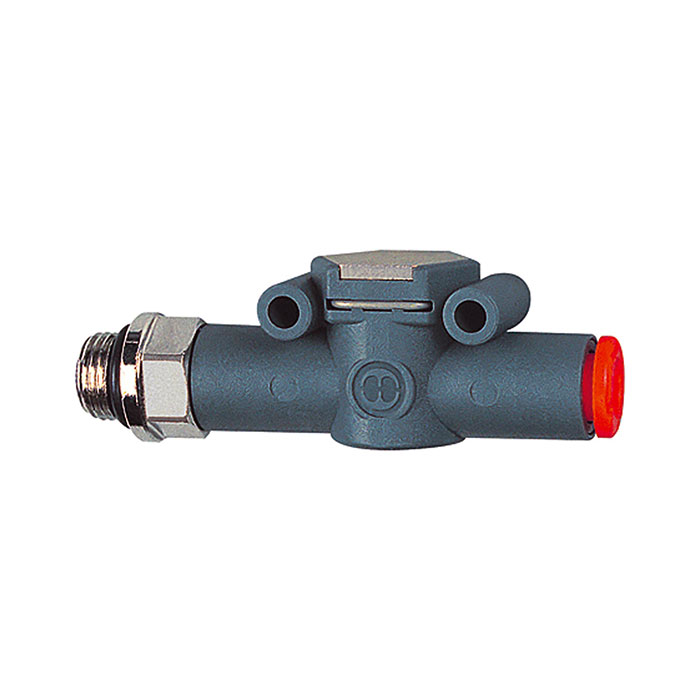

RIEGLER Check valve, Thread (inlet) - hose (outlet), G 1/8, hose 4
Type number: 441.018-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106806EAN :
4047322389914Weight :
0.02 kgCheck valve "lineonline", thread (inlet) - hose (outlet), G 1/8, for hose Ø 4 mm, operating pressure 0.5 to 12 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/8 |
| for hose Ø | 4 mm |
| A | 50.6 mm |
| B | 17.5 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 80 Nl/min |
| I | 12.8 mm |
| Class name | PLUS |
