RIEGLER Check valve, Thread (inlet) - hose (outlet), G 1/4, hose 8
Type number: 441.014-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106810EAN :
4047322089135Weight :
0.05 kgRIEGLER Check valve "lineonline" for pneumatic control, max. 12 bar, G 1/4 - Type 441.014-8
The RIEGLER non-return valve "lineonline", thread - hose, G 1/4, Schl.8 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 0.5 bar to 12 bar. The temperature range is between -20 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/4 |
| for hose Ø | 8 mm |
| A | 70.8 mm |
| B | 26 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 480 Nl/min |
| I | 18.7 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106809] RIEGLER Check valve, Thread (inlet) - hose (outlet), G 1/4, hose 6](/web/image/product.template/175866/image_128/%5B106809%5D%20RIEGLER%20Check%20valve%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-4%2C%20hose%206?unique=08b855f)
|
Type number: 441.014-6 |
13.96 € | |
![[106806] RIEGLER Check valve, Thread (inlet) - hose (outlet), G 1/8, hose 4](/web/image/product.template/175863/image_128/%5B106806%5D%20RIEGLER%20Check%20valve%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-8%2C%20hose%204?unique=25af826)
|
Type number: 441.018-4 |
12.46 € | |

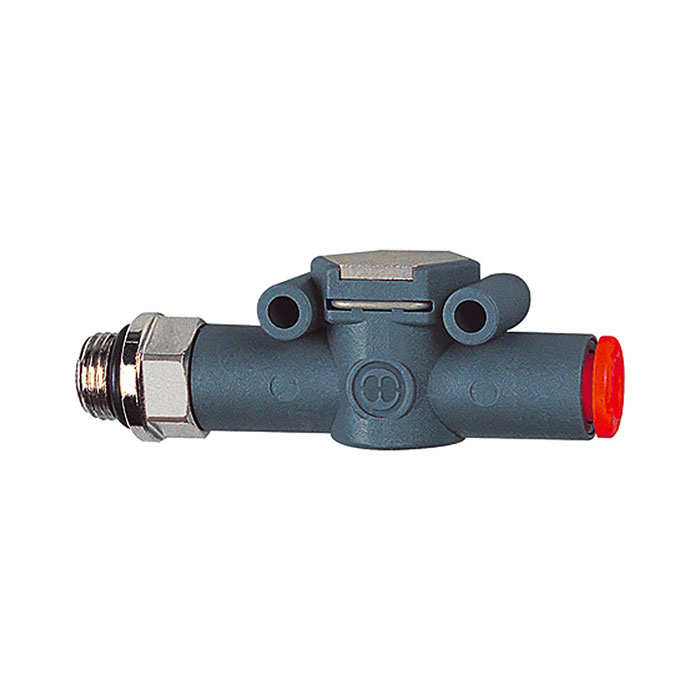

![[106807] RIEGLER Check valve, Thread (inlet) - hose (outlet), G 1/8, hose 6](/web/image/product.template/175864/image_128/%5B106807%5D%20RIEGLER%20Check%20valve%2C%20Thread%20%28inlet%29%20-%20hose%20%28outlet%29%2C%20G%201-8%2C%20hose%206?unique=056a27d)
|
