RIEGLER Check valve, Hose (inlet) - thread (outlet), M5, hose 4
Type number: 442.005-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106812EAN :
4047322389921Weight :
0.01 kgRIEGLER Check valve "lineonline" for pneumatic control, max. 12 bar, M5 - Type 442.005-4
The RIEGLER non-return valve "lineonline", hose thread, M5, Schl.4 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 0.5 bar to 12 bar. The temperature range is between -20 °C and 60 °C. M5 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | M5 |
| for hose Ø | 4 mm |
| A | 47.7 mm |
| B | 17.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 80 Nl/min |
| I | 12.8 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106816] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/4, hose 6](/web/image/product.template/175873/image_128/%5B106816%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-4%2C%20hose%206?unique=e7d0400)
|
Type number: 442.014-6 |
13.96 € | |
![[106817] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/4, hose 8](/web/image/product.template/175874/image_128/%5B106817%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-4%2C%20hose%208?unique=46606ef)
|
Type number: 442.014-8 |
14.41 € | |
![[106813] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/8, hose 4](/web/image/product.template/175870/image_128/%5B106813%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-8%2C%20hose%204?unique=40874e2)
|
Type number: 442.018-4 |
12.46 € | |
![[106814] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/8, hose 6](/web/image/product.template/175871/image_128/%5B106814%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-8%2C%20hose%206?unique=284151c)
|
Type number: 442.018-6 |
13.79 € | |
![[106815] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/8, hose 8](/web/image/product.template/175872/image_128/%5B106815%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-8%2C%20hose%208?unique=483cb37)
|
Type number: 442.018-8 |
13.01 € | |

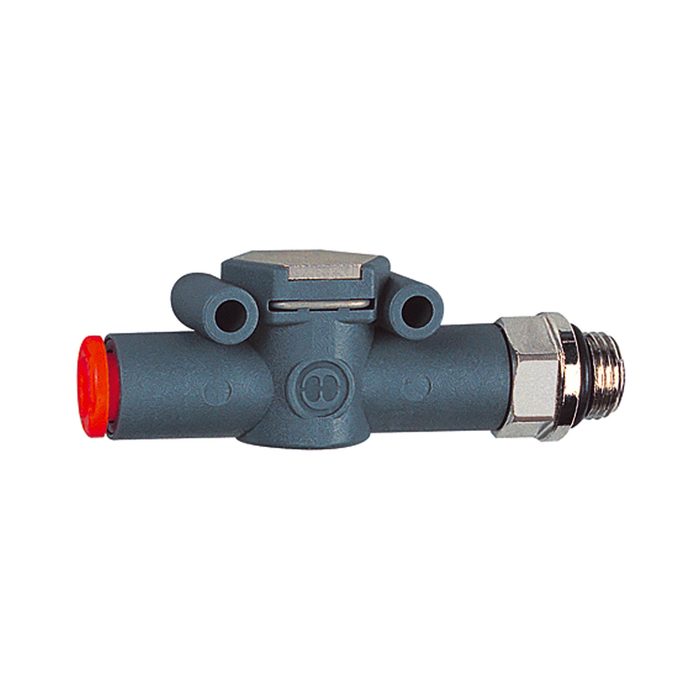

![[106818] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 3/8, hose 8](/web/image/product.template/175875/image_128/%5B106818%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%203-8%2C%20hose%208?unique=1755b70)
|
