RIEGLER Check valve, Hose (inlet) - thread (outlet), G 3/8, hose 8
Type number: 442.038-8
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106818EAN :
4047322089395Weight :
0.06 kgCheck valve »lineonline«, Hose (inlet) - thread (outlet), G 3/8, for hose Ø 8 mm, Operating pressure 0.5 to 12 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 12 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 3/8 |
| for hose Ø | 8 mm |
| A | 72.4 mm |
| B | 26 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 480 Nl/min |
| I | 18.7 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106816] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/4, hose 6](/web/image/product.template/175873/image_128/%5B106816%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-4%2C%20hose%206?unique=17ff4ea)
|
Type number: 442.014-6 |
14.15 € | |
![[106817] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/4, hose 8](/web/image/product.template/175874/image_128/%5B106817%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-4%2C%20hose%208?unique=d75fcdf)
|
Type number: 442.014-8 |
14.60 € | |

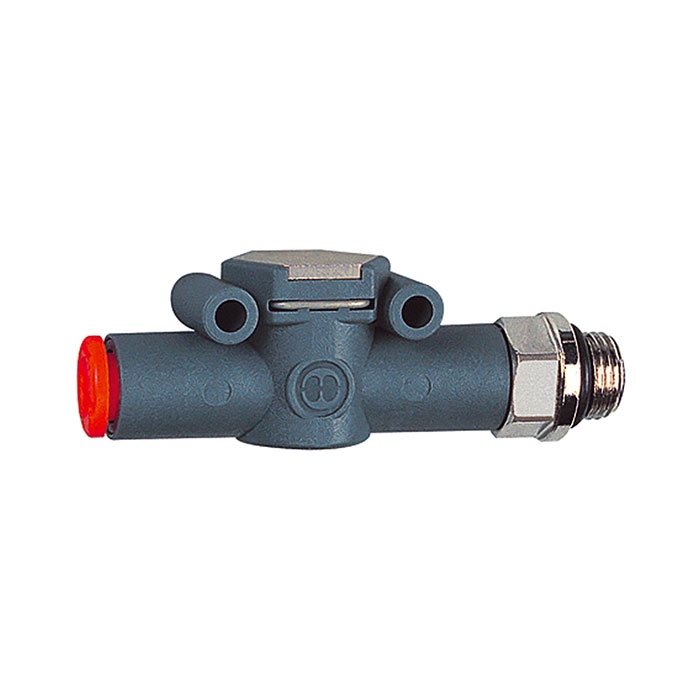

![[106813] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/8, hose 4](/web/image/product.template/175870/image_128/%5B106813%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-8%2C%20hose%204?unique=f1e09dd)
|
Type number: 442.018-4 |
12.46 € | |
![[106814] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/8, hose 6](/web/image/product.template/175871/image_128/%5B106814%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-8%2C%20hose%206?unique=a594012)
|
Type number: 442.018-6 |
13.79 € | |
![[106815] RIEGLER Check valve, Hose (inlet) - thread (outlet), G 1/8, hose 8](/web/image/product.template/175872/image_128/%5B106815%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20G%201-8%2C%20hose%208?unique=67d2a79)
|
Type number: 442.018-8 |
13.19 € | |
![[106812] RIEGLER Check valve, Hose (inlet) - thread (outlet), M5, hose 4](/web/image/product.template/175869/image_128/%5B106812%5D%20RIEGLER%20Check%20valve%2C%20Hose%20%28inlet%29%20-%20thread%20%28outlet%29%2C%20M5%2C%20hose%204?unique=56bbb9d)
|
Type number: 442.005-4 |
12.05 € | |
