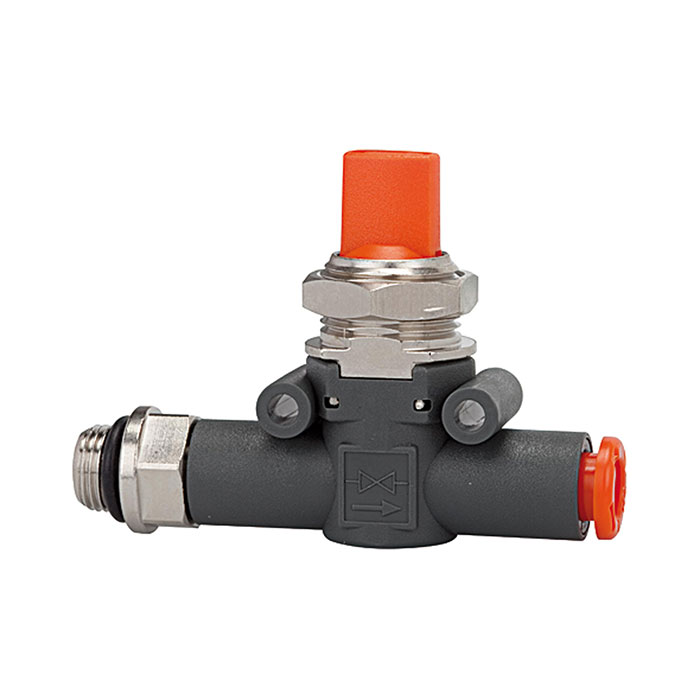

RIEGLER Blocking valve, Thread (inlet) - hose (outlet), G 1/8, hose 8
Type number: 451.018-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106834EAN :
4047322091107Weight :
0.06 kgRIEGLER Shut-off valve for pneumatic control, max. 10 bar, G 1/8 - Type 451.018-8
The RIEGLER shut-off valve, thread (inlet) - port (outlet), G1/8, port 8 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -20 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/8 |
| for hose Ø | 8 mm |
| A | 66.4 mm |
| B | 46 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 470 Nl/min |
| I | 18.7 mm |
| Class name | PLUS |
