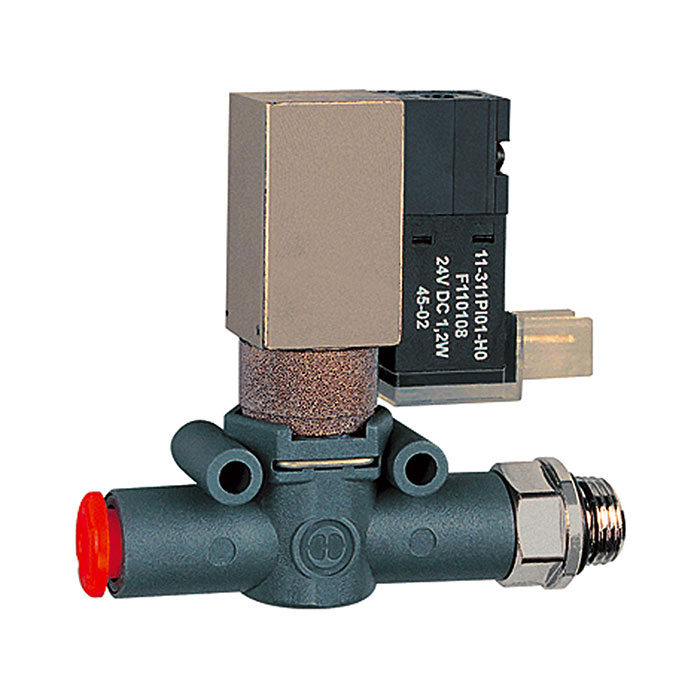

RIEGLER 3/2-way solenoid valve silenced venting, G 1/8, NC, hose 6
Type number: 484.018-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106851EAN :
4047322092944Weight :
0.06 kgRIEGLER 3/2-way solenoid valve for pneumatic control, max. 7 bar, G 1/8 - Type 484.018-6
The RIEGLER 3/2-way solenoid valve, silenced. G1/8 Schl.6 NC controls the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 2.5 bar to 7 bar. The temperature range is between -20 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. Operating voltage 24 V DC, power consumption 1.2 W. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Power consumption | 1,2 W |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 7 bar |
| Operating voltage | 24 V DC |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/8 |
| Function | NC |
| for hose Ø | 6 mm |
| A | 58.3 mm |
| B | 57.5 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 380 Nl/min |
| I | 14.6 mm |
| Class name | PLUS |
