RIEGLER 3/2-way valve, pneumatically »lineonline«, NC, hose-hose, hose Ø6

Price:

25.69 €

English (US)
  2. Shop
  3. Mini Pressure Regulators and Function Connectors
  4. RIEGLER 3/2-way valve, pneumatically »lineonline«, NC, hose-hose, hose Ø6
RIEGLER 3/2-way solenoid valve controlled venting G 1/8 NC hose 6
RIEGLER 3/2-way solenoid valve controlled venting G 1/8 NC hose 6
74.02 € 74.02 €
RIEGLER Blocking valve, Thread (inlet) - hose (outlet), G 1/8, hose 8
RIEGLER Blocking valve, Thread (inlet) - hose (outlet), G 1/8, hose 8
23.36 € 23.36 €

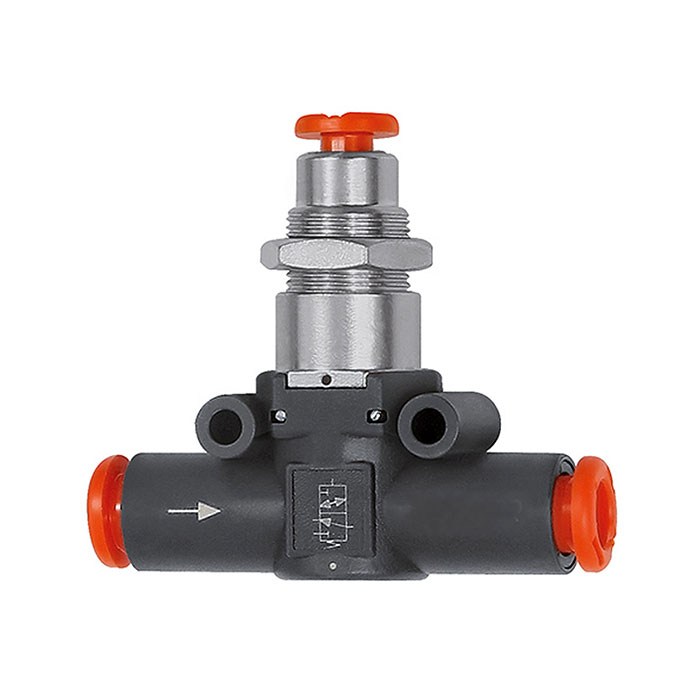

RIEGLER 3/2-way valve, pneumatically »lineonline«, NC, hose-hose, hose Ø6

https://www.filcom-technik.de/web/image/product.template/175847/image_1920?unique=965d0eb

Type number: 490-6

25.69 € 25.69 EUR 25.69 € VAT Included

29.98 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

106790

EAN :

4047322389952

Category :

Mini Pressure Regulators and Function Connectors

Weight :

0.03 kg

RIEGLER 3/2-way valve for pneumatic control, max. 10 bar - Type 490-6

The RIEGLER 3/2-way valve, pneum. NC, hose-to-hose, for hose Ø 6 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between -20 °C and 60 °C. Infinitely variable speed control for smooth movement sequences.

Field of application

Typical areas of application: Speed control of pneumatic cylinders.

Temperature range min. -20 °C
Temperature range max. 60 °C
Sealing material NBR
Max. operating pressure 10 bar
Interior parts Nickel-plated brass, brass, technopolymer, stainless steel
Pilot air connection 4 mm
Base body Technopolymer
Pneumatic symbols on the housing
Function NC
for hose Ø 6 mm
A 49.4 mm
B 43.2 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
Flow rate at 6.3 bar and Î "p 1.0 bar 400 Nl/min
I 14.6 mm
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS

Variants / Alternatives

Product Price
[106791] RIEGLER 3/2-way valve, pneumatically »lineonline«, NC, hose-hose, hose Ø8

Type number: 490-8

 26.42 €
