RIEGLER 3/2-way solenoid valve »lineonline« silenced venting, Hose Ø8, NO
Type number: 481-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106846EAN :
4047322092388Weight :
0.06 kgRIEGLER 3/2-way solenoid valve with silenced venting for pneumatic control, max. 7 bar - Type 481-8
The RIEGLER 3/2-way solenoid valve silenced venting, NO, Schl.8 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 2.5 bar to 7 bar. The temperature range is between -20 °C and 60 °C. Operating voltage 24 V DC, power consumption 1.2 W. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Power consumption | 1,2 W |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 7 bar |
| Operating voltage | 24 V DC |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Function | NO |
| for hose Ø | 8 mm |
| A | 57.2 mm |
| B | 63.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 700 Nl/min |
| I | 18.7 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106843] RIEGLER 3/2-way solenoid valve »lineonline« silenced venting, Hose Ø6, NC](/web/image/product.template/175900/image_128/%5B106843%5D%20RIEGLER%203-2-way%20solenoid%20valve%20%C2%BBlineonline%C2%AB%20silenced%20venting%2C%20Hose%20%C3%986%2C%20NC?unique=efad5f9)
|
Type number: 480-6 |
69.02 € | |
![[106845] RIEGLER 3/2-way solenoid valve »lineonline« silenced venting, Hose Ø6, NO](/web/image/product.template/175902/image_128/%5B106845%5D%20RIEGLER%203-2-way%20solenoid%20valve%20%C2%BBlineonline%C2%AB%20silenced%20venting%2C%20Hose%20%C3%986%2C%20NO?unique=0214f09)
|
Type number: 481-6 |
69.02 € | |

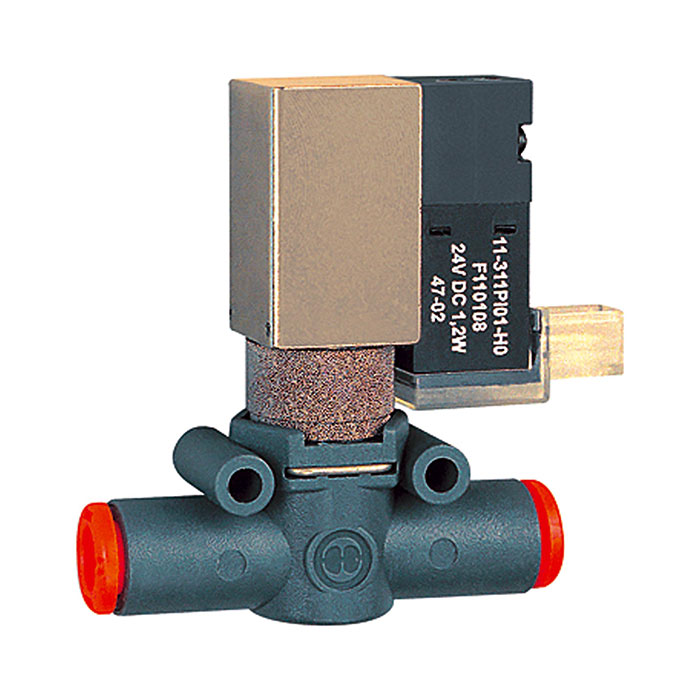

![[106844] RIEGLER 3/2-way solenoid valve »lineonline« silenced venting, Hose Ø8, NC](/web/image/product.template/175901/image_128/%5B106844%5D%20RIEGLER%203-2-way%20solenoid%20valve%20%C2%BBlineonline%C2%AB%20silenced%20venting%2C%20Hose%20%C3%988%2C%20NC?unique=dcc25ac)
|
