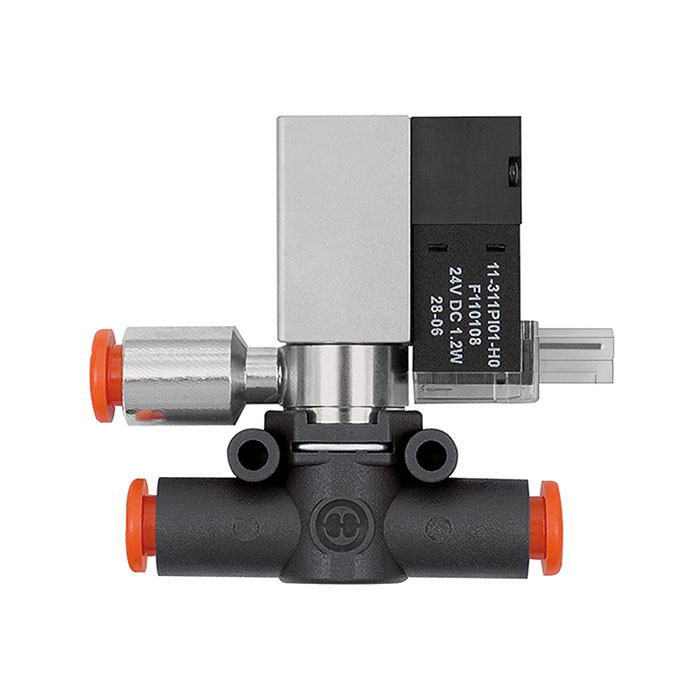

RIEGLER 3/2-way solenoid valve »lineonline«, Controlled venting NC hose 6
Type number: 482-6
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106847EAN :
4047322092685Weight :
0.05 kg3/2-way solenoid valve "lineonline", guided venting, hose - hose, for hose Ø 6, NC, 24 V DC, operating pressure 2.5-7 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Power consumption | 1,2 W |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 7 bar |
| Operating voltage | 24 V DC |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Function | NC |
| for hose Ø | 6 mm |
| A | 49 mm |
| B | 57.5 mm |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 380 Nl/min |
| I | 14.6 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106848] RIEGLER 3/2-way solenoid valve »lineonline«, Controlled venting NC hose 8](/web/image/product.template/175905/image_128/%5B106848%5D%20RIEGLER%203-2-way%20solenoid%20valve%20%C2%BBlineonline%C2%AB%2C%20Controlled%20venting%20NC%20hose%208?unique=9b28c36)
|
Type number: 482-8 |
72.17 € | |
![[106849] RIEGLER 3/2-way solenoid valve »lineonline«, Controlled venting NO hose 6](/web/image/product.template/175906/image_128/%5B106849%5D%20RIEGLER%203-2-way%20solenoid%20valve%20%C2%BBlineonline%C2%AB%2C%20Controlled%20venting%20NO%20hose%206?unique=487261b)
|
Type number: 483-6 |
72.58 € | |
![[106850] RIEGLER 3/2-way solenoid valve »lineonline«, Controlled venting NO hose 8](/web/image/product.template/175907/image_128/%5B106850%5D%20RIEGLER%203-2-way%20solenoid%20valve%20%C2%BBlineonline%C2%AB%2C%20Controlled%20venting%20NO%20hose%208?unique=0cc52aa)
|
Type number: 483-8 |
72.17 € | |
