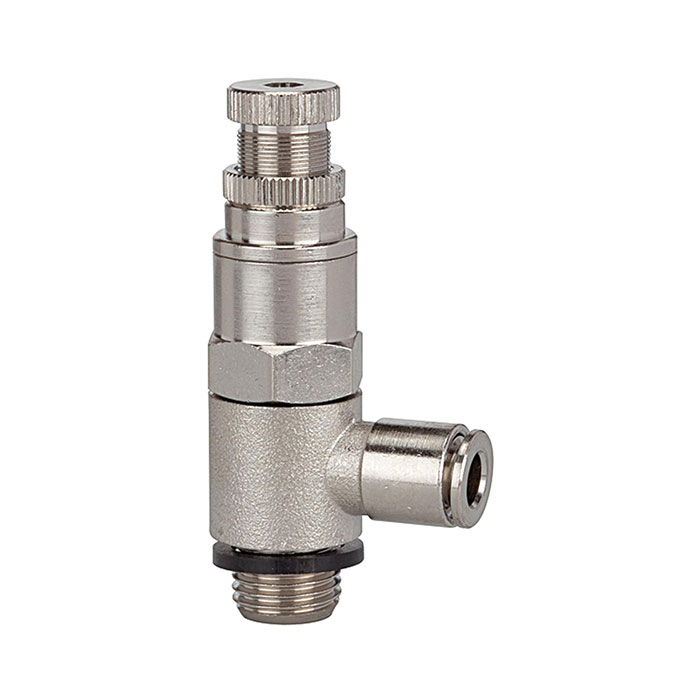

RIEGLER Compact pressure regulator, Push-in connector for hose 10, G 1/4
Type number: 3621.014-10
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
107050EAN :
4047322181648Weight :
0.08 kgMicro pressure regulator, push-in connector for hose 10, G 1/4, control range 0 - 8 bar, temp. 0 °C to 70 °C, nickel-plated brass.
| Inlet pressure max. | 10 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Interior parts | Brass bright |
| Banjo bolt | Nickel-plated brass |
| Swivel arm | Nickel-plated brass |
| Adjusting screw | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced |
| Thread | G 1/4 |
| Control range min. | 0 bar |
| Control range max. | 8 bar |
| SW | 17 mm |
| for hose | 10 mm |
| B | 63 mm |
| C | 26.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
