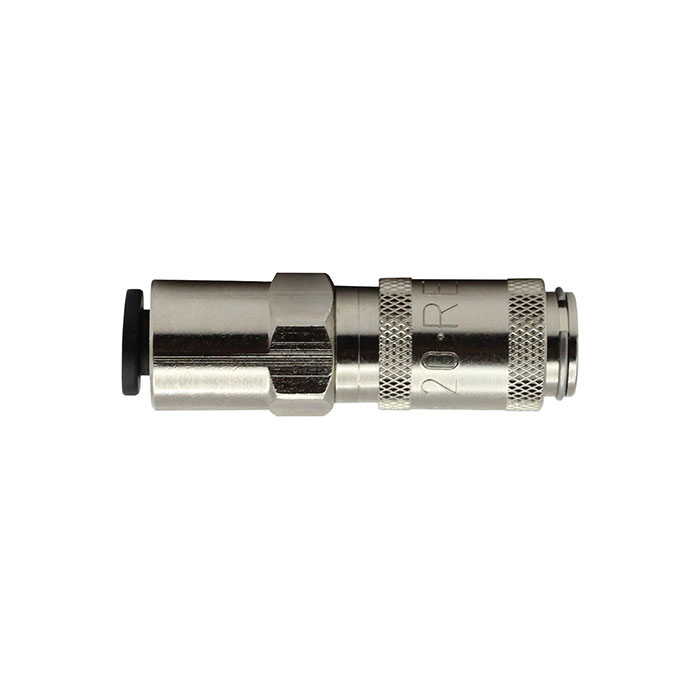

RIEGLER Quick-connect coupling I.D. 2.7 nickel-plated brass, push-in 4 mm
Type number: 243.08/10-N
EAN: 4047322207522
Quick-release coupling NW 2.7 MS nickel-plated, push-in connection 4 mm, operating pressure 0-35 bar, medium/ambient temp. -20°C to 100°C
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 165 l/min (air) |
| Ball | stainless steel |
| Spring | stainless steel |
| Valve body | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Snap ring | stainless steel |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 10 mm |
| NW | 2.7 |
| Length | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | 4 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
