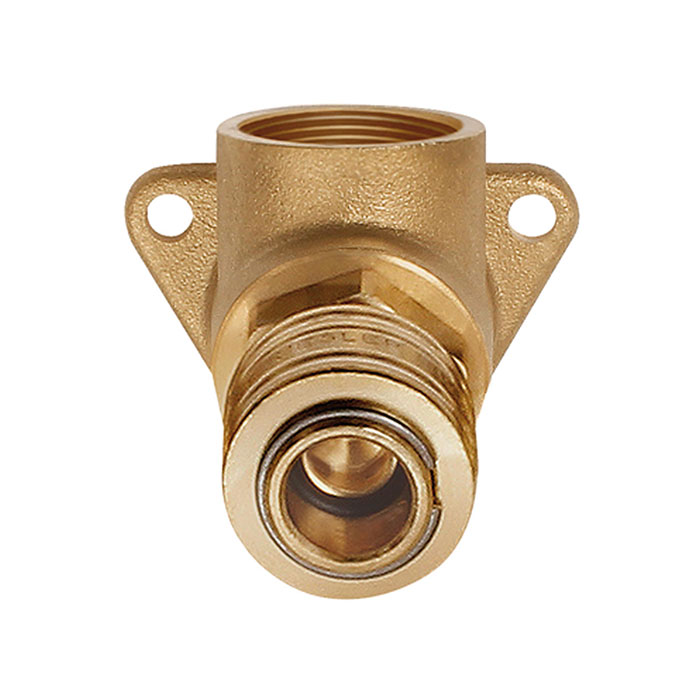

RIEGLER Ceiling bracket with quick-connect coupling I.D. 7.2, G 3/8 IT
Type number: DW 266-K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ceiling bracket with quick-release coupling made of bare brass, for compressed air supply - type DW 266-K
The RIEGLER ceiling bracket with quick-release coupling NW 7.2, G 3/8 female thread connects and disconnects compressed air lines with a single movement - automatic sealing during disconnection. The housing is made of bright brass with medium-strength industrial adhesive seals. The operating pressure range is 0 bar to 35 bar. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 3/8 IG - suitable for common industry standards. Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Brass bright |
| Sealing material | Industrial adhesive, medium strength |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 35 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Fuse | Industrial adhesive, medium strength |
| Height | 40 mm |
| Width | 39 mm |
| consisting of distributor | 2 x G 3/8 IG |
| Couplings | NW 7.2, bare brass, G 3/8 AG |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
