RIEGLER Hose sleeve, rotating, R 3/8 ET, I.D. 6
Type number: 243.997
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose nozzle made of nickel-plated steel, for compressed air supply, R 3/8 AG - Type 243.997
The RIEGLER hose nozzle, nickel-plated steel, rotatable, R 3/8 AG, LW 6 establishes the connection between the compressed air hose and the quick coupling. The housing is made of nickel-plated steel. Connection thread R 3/8 AG - suitable for common industry standards. Simply plug in - secure, tight connection.
Field of application
Typical areas of application: Compressed air coupling systems.
| Material | Nickel-plated steel |
| SW | 19 mm |
| Length | 54 mm |
| LW | 6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | R 3/8 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

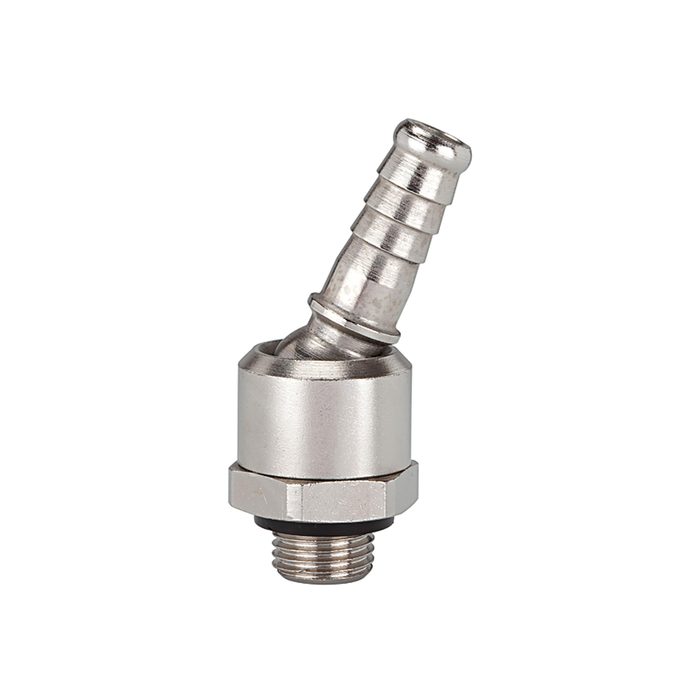

![[107325] RIEGLER Hose sleeve, nickel-plated brass, rotating, G 1/4 ET, I.D. 10](/web/image/product.template/176382/image_128/%5B107325%5D%20RIEGLER%20Hose%20sleeve%2C%20nickel-plated%20brass%2C%20rotating%2C%20G%201-4%20ET%2C%20I.D.%2010?unique=eb04983)
|
Type number: 243.999 |
6.10 € | |
![[107326] RIEGLER Hose sleeve, nickel-plated brass, rotating, G 1/4 ET, I.D. 13](/web/image/product.template/176383/image_128/%5B107326%5D%20RIEGLER%20Hose%20sleeve%2C%20nickel-plated%20brass%2C%20rotating%2C%20G%201-4%20ET%2C%20I.D.%2013?unique=c97d8c6)
|
Type number: 243.1000 |
6.10 € | |
![[107322] RIEGLER Hose sleeve, nickel-plated brass, rotating, G 1/4 ET, I.D. 6](/web/image/product.template/176379/image_128/%5B107322%5D%20RIEGLER%20Hose%20sleeve%2C%20nickel-plated%20brass%2C%20rotating%2C%20G%201-4%20ET%2C%20I.D.%206?unique=8da6292)
|
Type number: 243.993 |
6.10 € | |

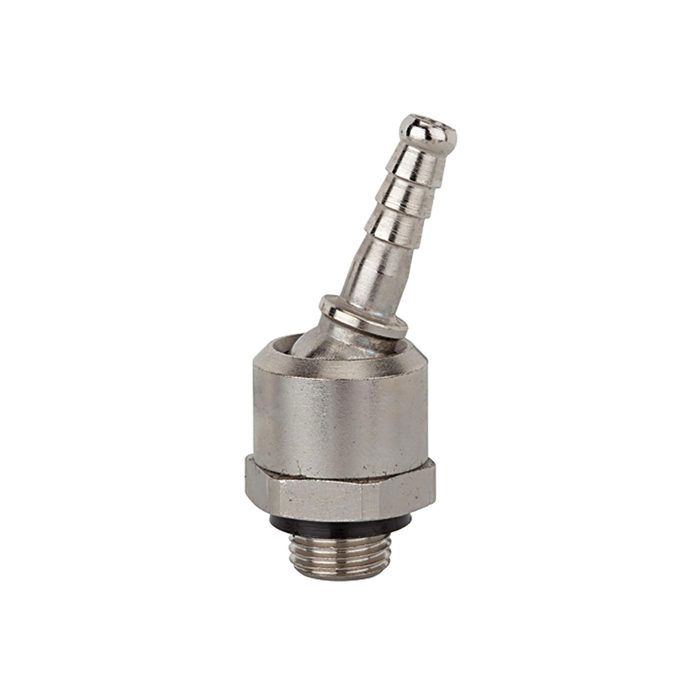

![[107323] RIEGLER Hose sleeve, nickel-plated brass, rotating, G 1/4 ET, I.D. 8](/web/image/product.template/176380/image_128/%5B107323%5D%20RIEGLER%20Hose%20sleeve%2C%20nickel-plated%20brass%2C%20rotating%2C%20G%201-4%20ET%2C%20I.D.%208?unique=5eaf675)
|
Type number: 243.994 |
6.10 € | |
![[107324] RIEGLER Hose sleeve, nickel-plated brass, rotating, G 1/4 ET, I.D. 9](/web/image/product.template/176381/image_128/%5B107324%5D%20RIEGLER%20Hose%20sleeve%2C%20nickel-plated%20brass%2C%20rotating%2C%20G%201-4%20ET%2C%20I.D.%209?unique=7792692)
|
Type number: 243.9960 |
6.10 € | |

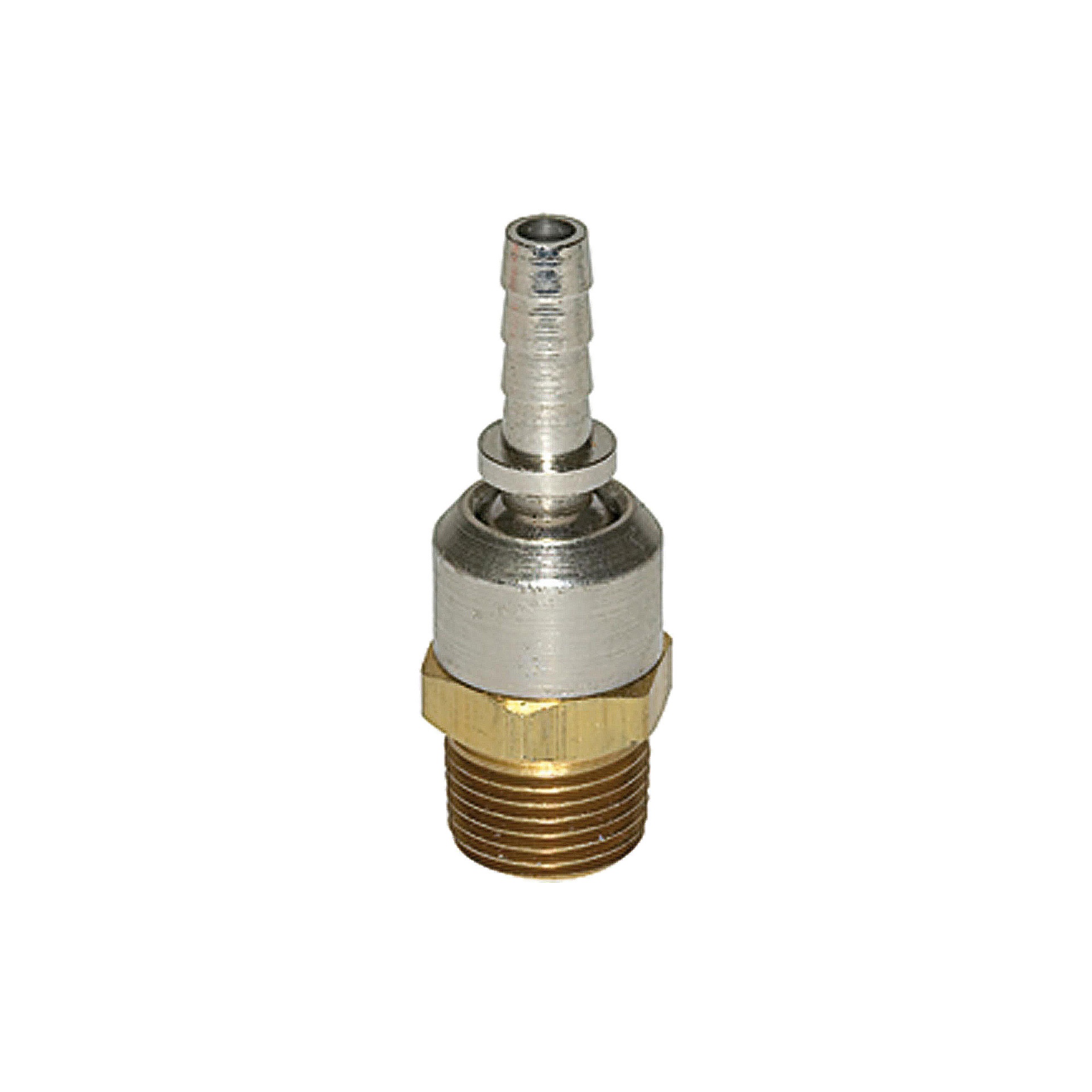

![[107328] RIEGLER Hose sleeve, rotating, R 3/8 ET, I.D. 9](/web/image/product.template/176385/image_128/%5B107328%5D%20RIEGLER%20Hose%20sleeve%2C%20rotating%2C%20R%203-8%20ET%2C%20I.D.%209?unique=3a09883)
|
Type number: 243.998 |
10.66 € | |
