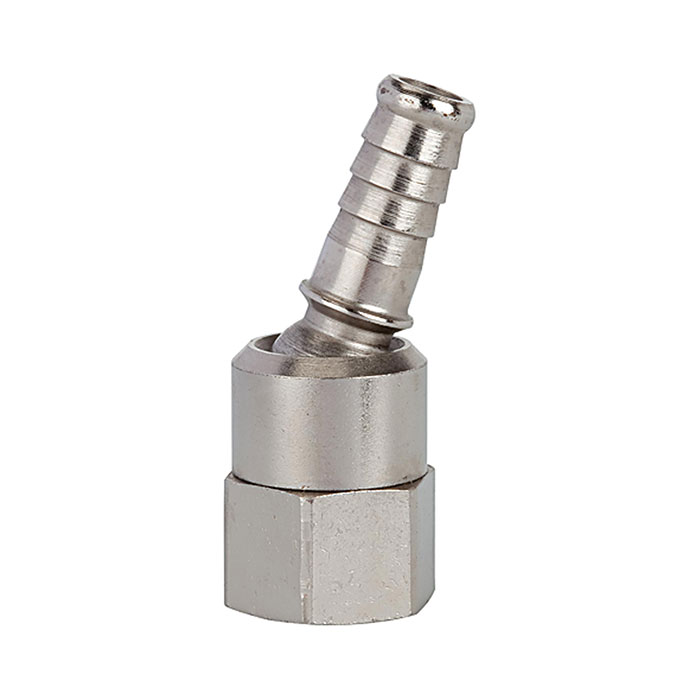

RIEGLER Hose sleeve, rotating, G 1/4 IT, I.D. 8
Type number: 243.1002
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Hose nozzle, MS nickel-plated, swivel, G 1/4 female, LW 8, operating pressure 0-35 bar, medium/ambient temp. 0°C to 70°C
| SW | 22 mm |
| Length | 59 mm |
| LW | 8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

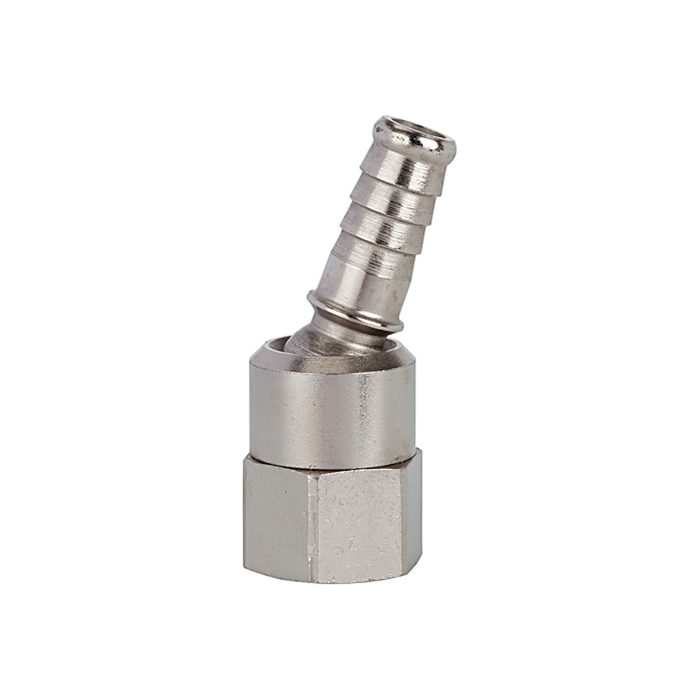

![[107332] RIEGLER Hose sleeve, rotating, G 1/4 IT, I.D. 10](/web/image/product.template/176389/image_128/%5B107332%5D%20RIEGLER%20Hose%20sleeve%2C%20rotating%2C%20G%201-4%20IT%2C%20I.D.%2010?unique=6c5f39e)
|
Type number: 243.1004 |
6.10 € | |
![[107333] RIEGLER Hose sleeve, rotating, G 1/4 IT, I.D. 13](/web/image/product.template/176390/image_128/%5B107333%5D%20RIEGLER%20Hose%20sleeve%2C%20rotating%2C%20G%201-4%20IT%2C%20I.D.%2013?unique=04f3bd8)
|
Type number: 243.1005 |
6.10 € | |
![[107329] RIEGLER Hose sleeve, rotating, G 1/4 IT, I.D. 6](/web/image/product.template/176386/image_128/%5B107329%5D%20RIEGLER%20Hose%20sleeve%2C%20rotating%2C%20G%201-4%20IT%2C%20I.D.%206?unique=c08abe5)
|
Type number: 243.1001 |
6.10 € | |
![[107331] RIEGLER Hose sleeve, rotating, G 1/4 IT, I.D. 9](/web/image/product.template/176388/image_128/%5B107331%5D%20RIEGLER%20Hose%20sleeve%2C%20rotating%2C%20G%201-4%20IT%2C%20I.D.%209?unique=43373e7)
|
Type number: 243.1003 |
6.10 € | |
