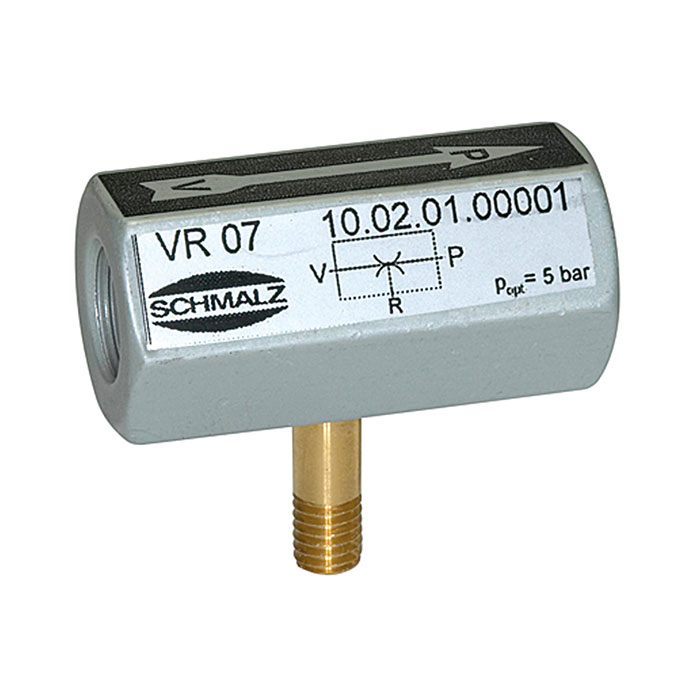

RIEGLER Inline ejector »VR«, Nozzle size 0.7 mm
Type number: VR 07
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Inline ejector "VR" nozzle size 0 made of anodized aluminium, for vacuum technology, max. 5 bar - type VR 07
The RIEGLER Inline Ejector "VR" nozzle size 0.7 mm generates or uses vacuum for handling and automation tasks. The housing is made of anodized aluminium. Designed for a maximum operating pressure of 5 bar. Connection thread Threaded connection - suitable for common industry standards. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Housing | Anodized aluminum |
| Max. operating pressure | 5 bar |
| Length | 35 mm |
| Connection | Threaded connection |
| Nozzle size | 0.7 mm |
| Compressed air connection | G 1/4 FEMALE THREAD |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Exhaust air connection | M5 AG |
| Nozzle system | Brass |
| Evacuation level | 0.9 |
| Suction capacity max. | 14 l/min |
| Air consumption suction | 21 l/min |
| Weight | 15 g |
| Class name | EASY |
