RIEGLER Inline ejector »SLP«, Nozzle size 0.5 mm
Type number: SLP 05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Inline ejector "SLP" nozzle size 0 made of plastic, for vacuum technology, max. 4.5 bar - type SLP 05
The RIEGLER Inline Ejector "SLP" nozzle size 0.5 mm generates or uses vacuum for handling and automation tasks. The housing is made of plastic. Designed for a maximum operating pressure of 4.5 bar. Connection thread plug connection - suitable for common industry standards. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Housing | Plastic |
| Max. operating pressure | 4.5 bar |
| Length | 57 mm |
| Connection | Plug connection |
| Nozzle size | 0.5 mm |
| Compressed air connection | 4 mm |
| Vacuum connection | 4 mm |
| Exhaust air connection | - |
| Nozzle system | Aluminum |
| Evacuation level | 0.85 |
| Suction capacity max. | 8 l/min |
| Air consumption suction | 13 l/min |
| Weight | 5 g |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

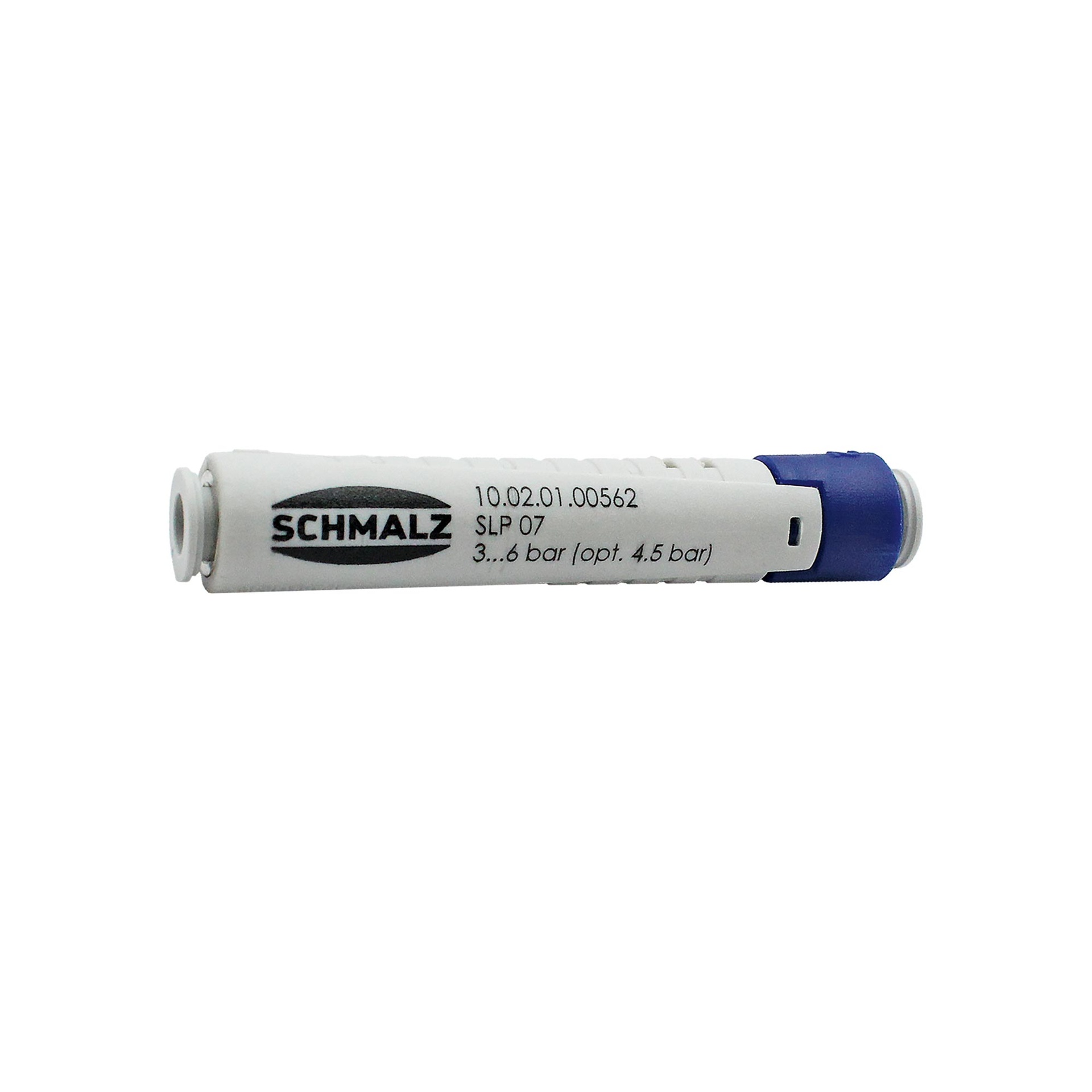

![[108377] RIEGLER Inline ejector »SLP«, Nozzle size 0.7 mm](/web/image/product.template/192274/image_128/%5B108377%5D%20RIEGLER%20Inline%20ejector%20%C2%BBSLP%C2%AB%2C%20Nozzle%20size%200.7%20mm?unique=1798052)
|
