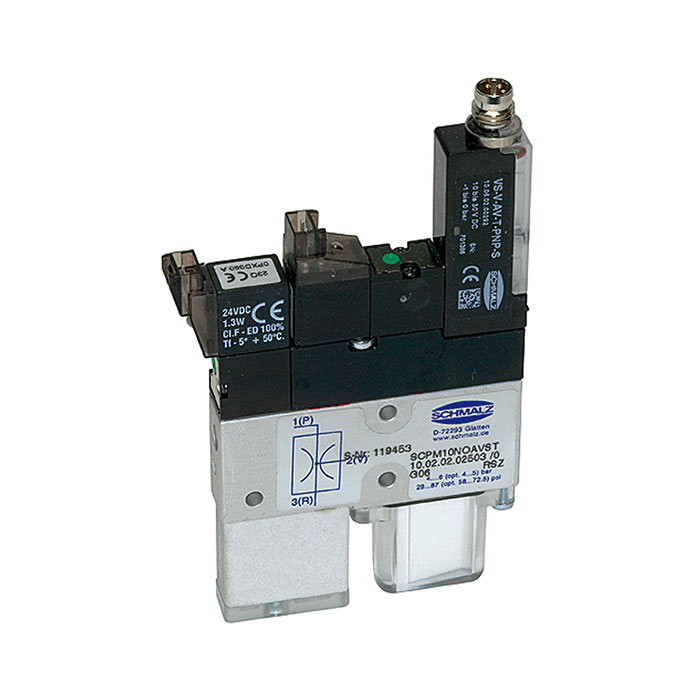

RIEGLER Mini compact ejector »mini pump« Nozzle size 1 mm, NC
Type number: SCP 101-M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini compact ejector "Mini Pump" nozzle size 1 for vacuum technology, max. 4.5 bar - type SCP 101-M
The RIEGLER mini compact ejector "Mini Pump" nozzle size 1.0 mm, NC generates or uses vacuum for handling and automation tasks. Designed for a maximum operating pressure of 4.5 bar. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Max. operating pressure | 4.5 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 107 mm |
| Width | 10 mm |
| Length | 65 mm |
| Nozzle size | 1 mm |
| Compressed air connection | M5 IG |
| Vacuum connection | M5 IG |
| Rest position suction valve | NC |
| Evacuation level | 0.85 |
| Suction capacity max. | 23 l/min |
| Air consumption suction | 46 l/min |
| Weight | 80 g |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

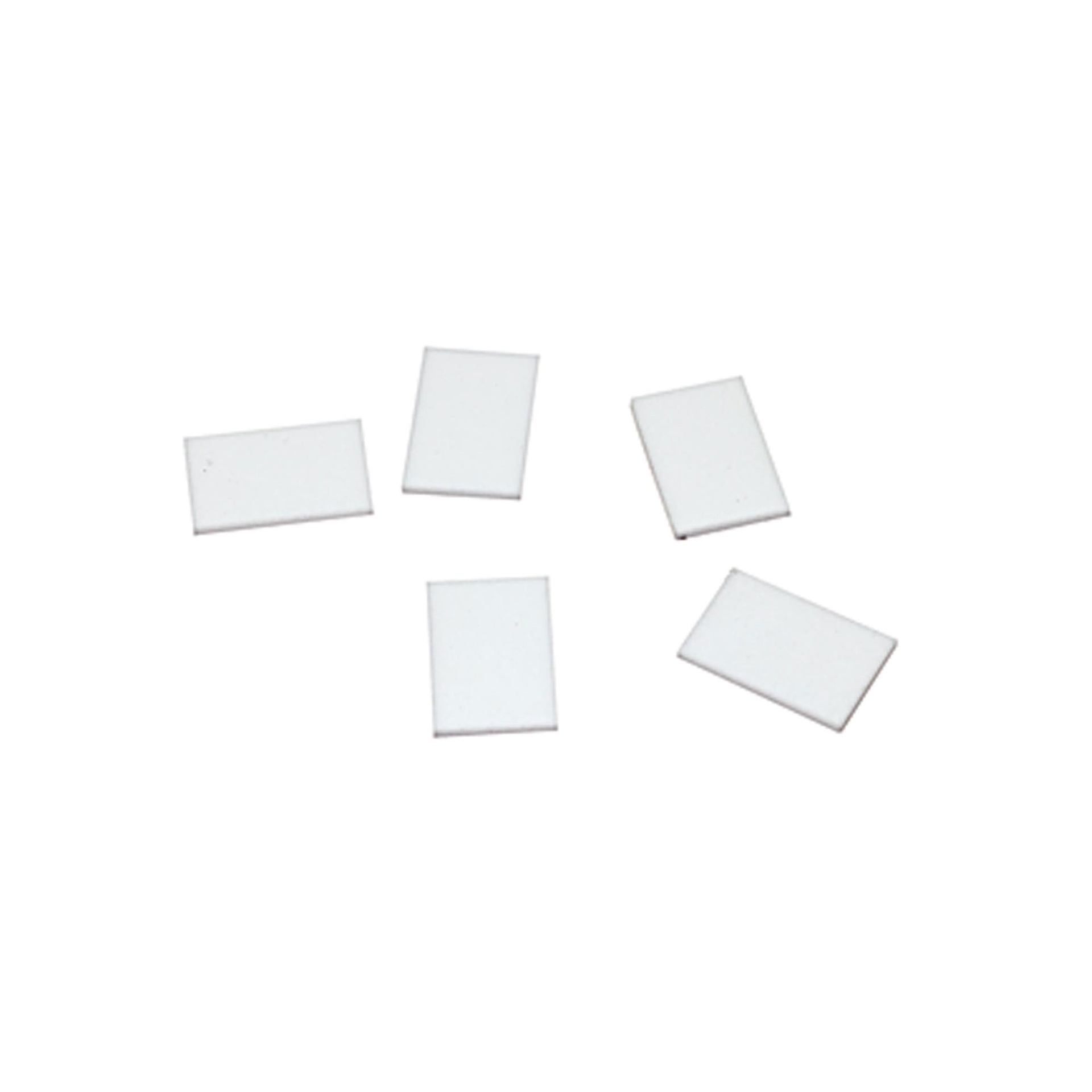

![[108402] RIEGLER Replacement filter element for type »Mini pump«](/web/image/product.template/192299/image_128/%5B108402%5D%20RIEGLER%20Replacement%20filter%20element%20for%20type%20%C2%BBMini%20pump%C2%AB?unique=eb725fb)
|
Type number: SCPM 20 |
6.87 € | |
![[108401] RIEGLER Replacement silencer for type »Mini pump«](/web/image/product.template/192298/image_128/%5B108401%5D%20RIEGLER%20Replacement%20silencer%20for%20type%20%C2%BBMini%20pump%C2%AB?unique=2339ff4)
|
Type number: SCPM 10 |
24.41 € | |
