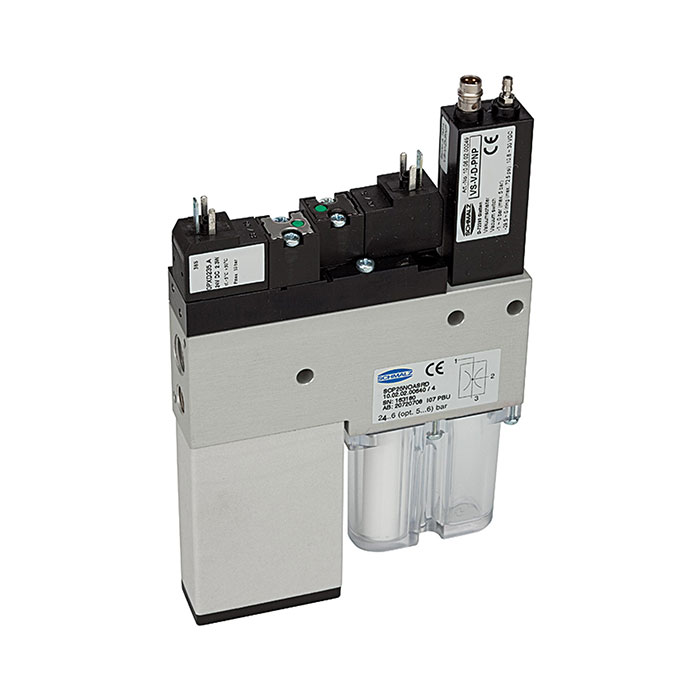

RIEGLER Compact ejector »CP« Air block control, Nozzle size 1.5 mm
Type number: CP 151
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact ejector "CP" digital vacuum switch, air-saving control, nozzle size 1.5 mm, NC, compressed air/vacuum connection G 1/8 IG
| Max. operating pressure | 5 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 164 mm |
| Width | 20 mm |
| Length | 72 mm |
| Nozzle size | 1.5 mm |
| Compressed air connection | G 1/8 FEMALE THREAD |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Rest position suction valve | NC |
| Suction capacity max. | 65 l/min |
| Air consumption suction | 117 l/min |
| Weight | 275 g |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

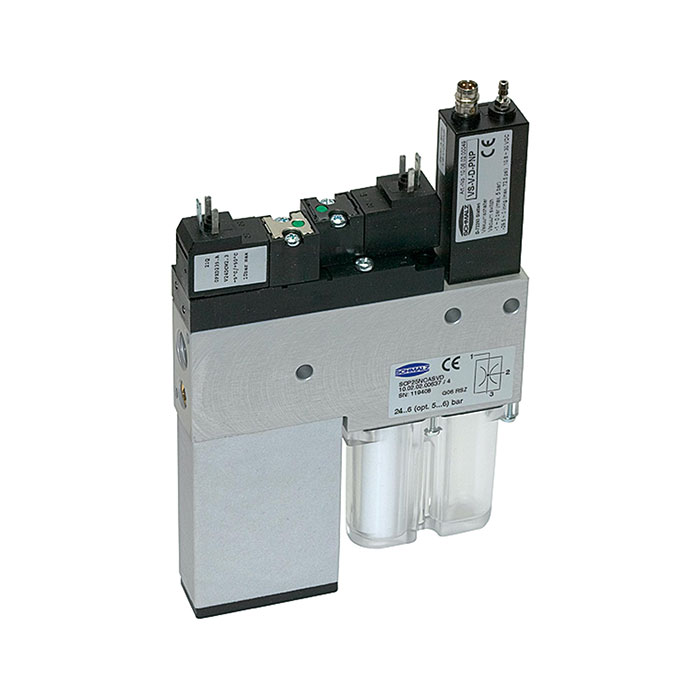

![[108404] RIEGLER Compact ejector »CP« Air block control, Nozzle size 1.5 mm](/web/image/product.template/192301/image_128/%5B108404%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%20Air%20block%20control%2C%20Nozzle%20size%201.5%20mm?unique=f68e393)
|
Type number: CP 152 |
1,207.54 € | |
![[108408] RIEGLER Compact ejector »CP« Air block control, Nozzle size 2.5 mm](/web/image/product.template/192305/image_128/%5B108408%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%20Air%20block%20control%2C%20Nozzle%20size%202.5%20mm?unique=1afaa34)
|
Type number: CP 252 |
1,317.32 € | |
![[108406] RIEGLER Compact ejector »CP« Air block control, Nozzle size 2 mm](/web/image/product.template/192303/image_128/%5B108406%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%20Air%20block%20control%2C%20Nozzle%20size%202%20mm?unique=98114bf)
|
Type number: CP 202 |
1,333.87 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

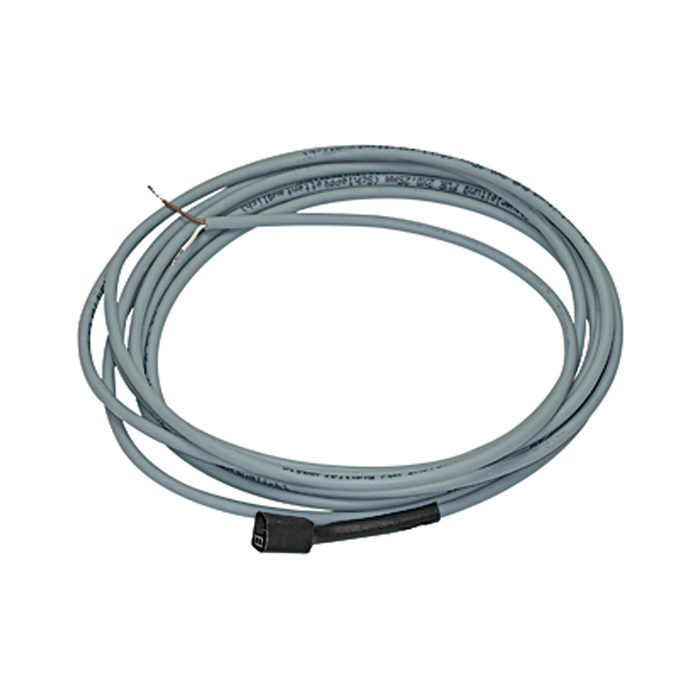

![[108399] RIEGLER Connection plug for solenoid valve for »Mini pump«,»Compact Pump«](/web/image/product.template/192296/image_128/%5B108399%5D%20RIEGLER%20Connection%20plug%20for%20solenoid%20valve%20for%20%C2%BBMini%20pump%C2%AB%2C%C2%BBCompact%20Pump%C2%AB?unique=4ec7012)
|
Type number: ASK 3001 |
42.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

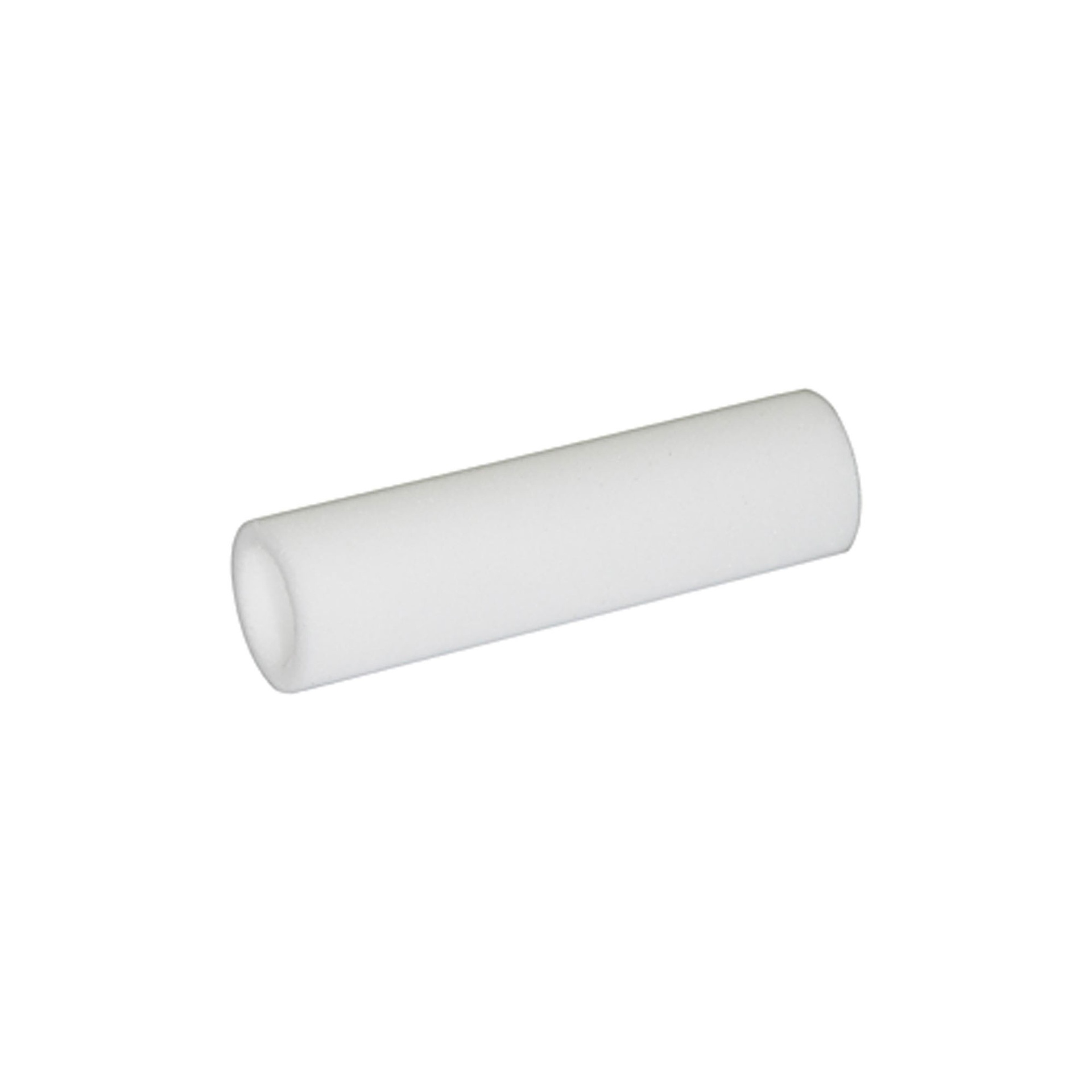

![[108419] RIEGLER Replacement filter element for compact ejector »Compact pump«](/web/image/product.template/192316/image_128/%5B108419%5D%20RIEGLER%20Replacement%20filter%20element%20for%20compact%20ejector%20%C2%BBCompact%20pump%C2%AB?unique=b62b3e7)
|
Type number: ASK 655 |
8.48 € | |

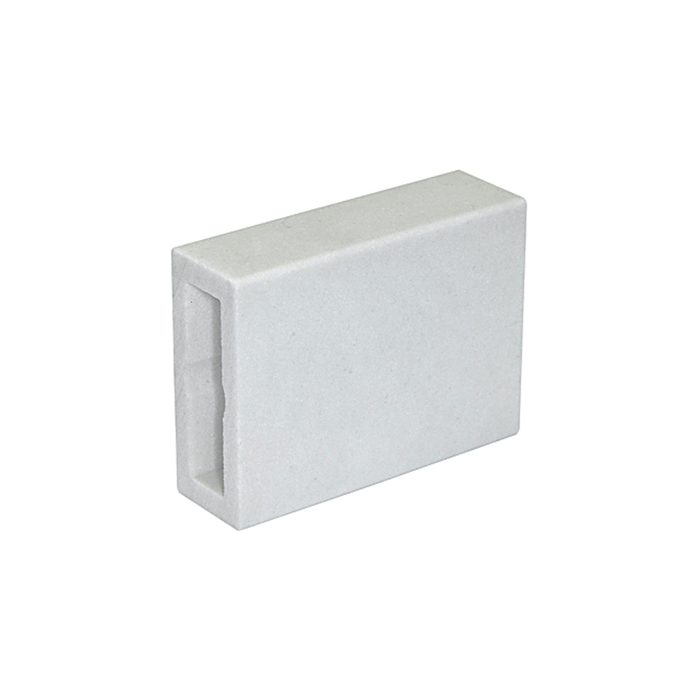

![[108416] RIEGLER Replacement silencer for compact ejector type »Compact pump«](/web/image/product.template/192313/image_128/%5B108416%5D%20RIEGLER%20Replacement%20silencer%20for%20compact%20ejector%20type%20%C2%BBCompact%20pump%C2%AB?unique=99a1b54)
|
Type number: ASK 653 |
19.69 € | |
