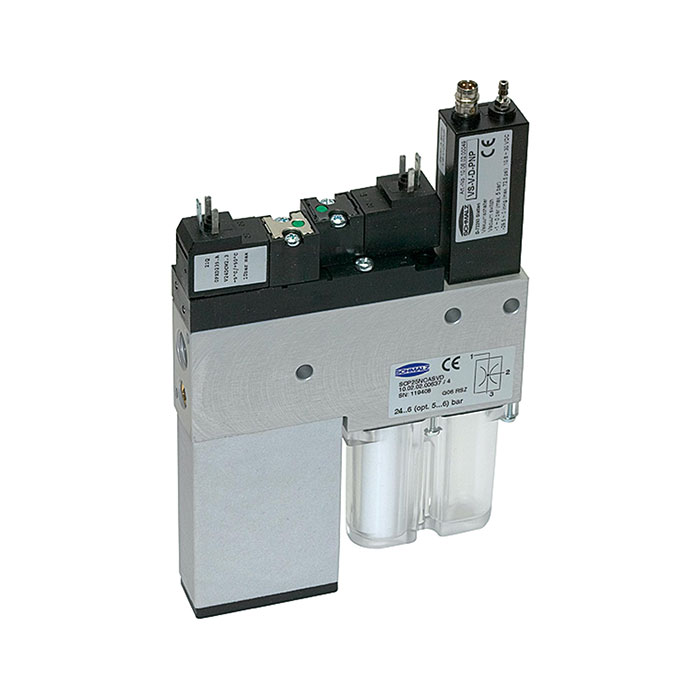

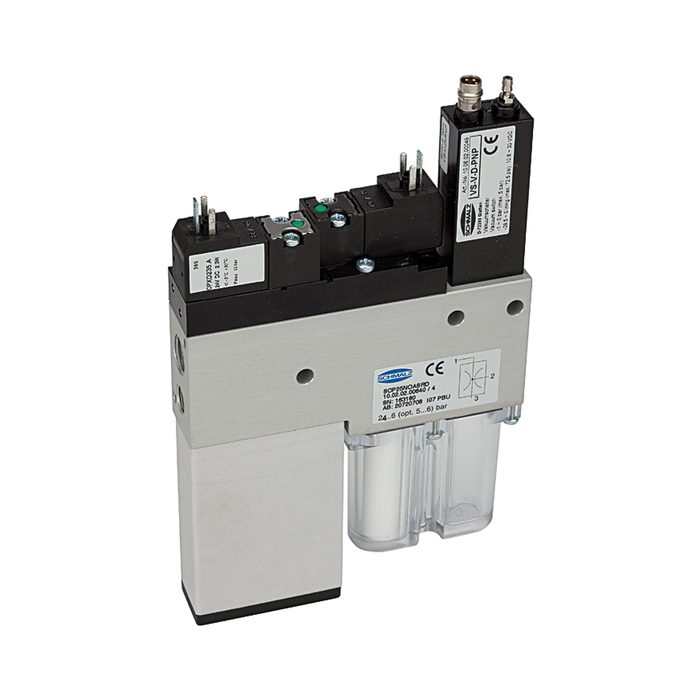

RIEGLER Compact ejector »CP« Air block control, Nozzle size 2.5 mm
Type number: CP 251
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compact ejector "CP" Air-saving control for vacuum technology, max. 6 bar - Type CP 251
The RIEGLER compact ejector "CP" air-saving control, nozzle size 2.5 mm, NC generates or uses vacuum for handling and automation tasks. The operating pressure range is 5 bar to 6 bar. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Operating pressure min. | 5 bar |
| Max. operating pressure | 6 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 183 mm |
| Width | 22 mm |
| Length | 113 mm |
| Nozzle size | 2.5 mm |
| Compressed air connection | G 1/4 FEMALE THREAD |
| Vacuum connection | G 3/8 IG |
| Rest position suction valve | NC |
| Suction capacity max. | 161 l/min |
| Air consumption suction | 310 l/min |
| Weight | 485 g |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

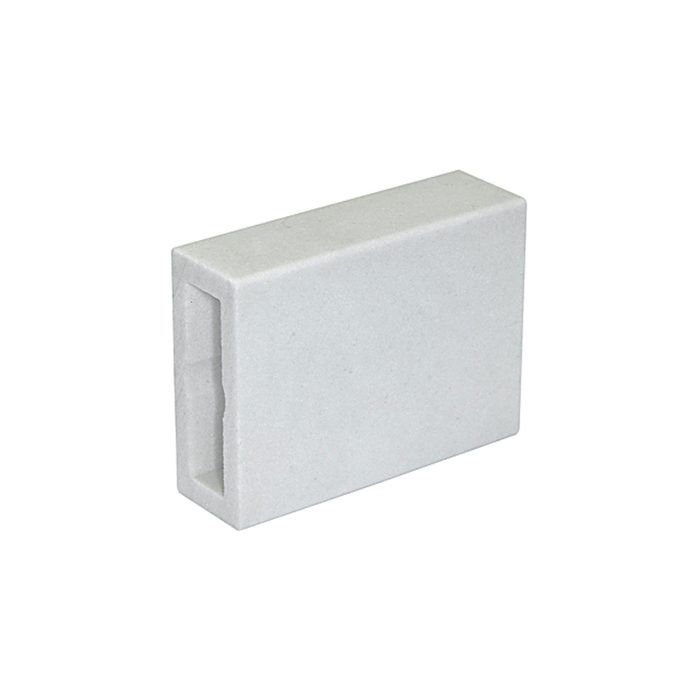

![[108418] RIEGLER Replacement silencer for compact ejector type »Compact pump«](/web/image/product.template/192315/image_128/%5B108418%5D%20RIEGLER%20Replacement%20silencer%20for%20compact%20ejector%20type%20%C2%BBCompact%20pump%C2%AB?unique=2607f0b)
|
Type number: ASK 652 |
30.57 € | |
