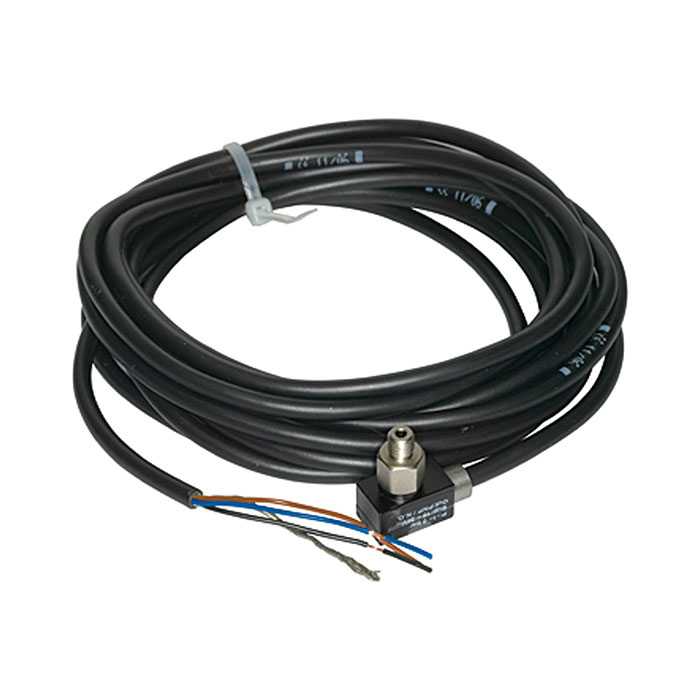

RIEGLER Vacuum sensor, Mini design, Digital sensor
Type number: VS 210
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Vacuum sensor M5 AG - Type VS 210
The RIEGLER vacuum sensor, mini design, digital sensor generates or uses vacuum for handling and automation tasks. The temperature range extends between 0 °C and 50 °C. Connection thread M5 AG - suitable for common industry standards. Suitable for dry, oil-free air, non-aggressive gases. Operating voltage 10 - 24 V DC, protection class IP 40. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 50 °C |
| Medium | dry, oil-free air, non-aggressive gases |
| Protection class | IP 40 |
| Operating voltage | 10 - 24 V DC |
| Hysteresis | fixed: 20 mbar (for version with digital sensor) |
| Output signal | 1 to 5 V analog |
| Measuring range min. bar | -1 |
| Measuring range max. bar | 0 |
| SW 1 | 8 mm |
| Cable length | 3 m |
| L | 21 mm |
| H | 16.9 mm |
| Connection | M5 AG |
| Class name | PLUS |
