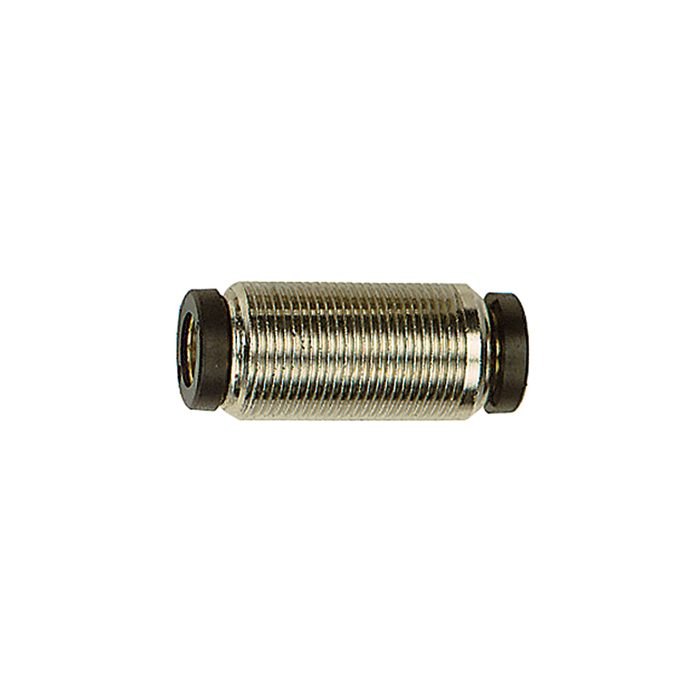

RIEGLER Straight push-in connector »click-clock« M11x1, hose ext. Ø 4
Type number: 747.004
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight plug-in connector "click-clock" made of nickel-plated brass, for pneumatic installation - type 747.004
The RIEGLER straight push-in connector "click-clock", M11x1.0, hose outer Ø 4 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated brass with NBR seals. The operating pressure range is -0.99 bar to 16 bar. The operating temperature is between -20 °C and 80 °C. Connection thread M11x1.0 - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Hostaform |
| Clamping ring | Stainless steel |
| Recommended hose | PA, PU |
| Thread | M11x1.0 |
| for hose outer Ø | 4 mm |
| D | 2.5 mm |
| L1 | 30.6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108723] RIEGLER Straight push-in connector »click-clock« M13x1, hose ext. Ø 6](/web/image/product.template/192620/image_128/%5B108723%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBclick-clock%C2%AB%20M13x1%2C%20hose%20ext.%20%C3%98%206?unique=389cf2b)
|
Type number: 747.006 |
2.18 € | |
![[108722] RIEGLER Straight push-in connector »click-clock« M14x1, hose ext. Ø 5](/web/image/product.template/192619/image_128/%5B108722%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBclick-clock%C2%AB%20M14x1%2C%20hose%20ext.%20%C3%98%205?unique=9a08372)
|
Type number: 747.005 |
2.57 € | |
![[108724] RIEGLER Straight push-in connector »click-clock« M15x1, hose ext. Ø 8](/web/image/product.template/192621/image_128/%5B108724%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBclick-clock%C2%AB%20M15x1%2C%20hose%20ext.%20%C3%98%208?unique=3f1e872)
|
Type number: 747.008 |
2.43 € | |
![[108725] RIEGLER Straight push-in connector »click-clock« M17x1, hose ext. Ø 10](/web/image/product.template/192622/image_128/%5B108725%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBclick-clock%C2%AB%20M17x1%2C%20hose%20ext.%20%C3%98%2010?unique=cd62371)
|
Type number: 747.010 |
3.43 € | |

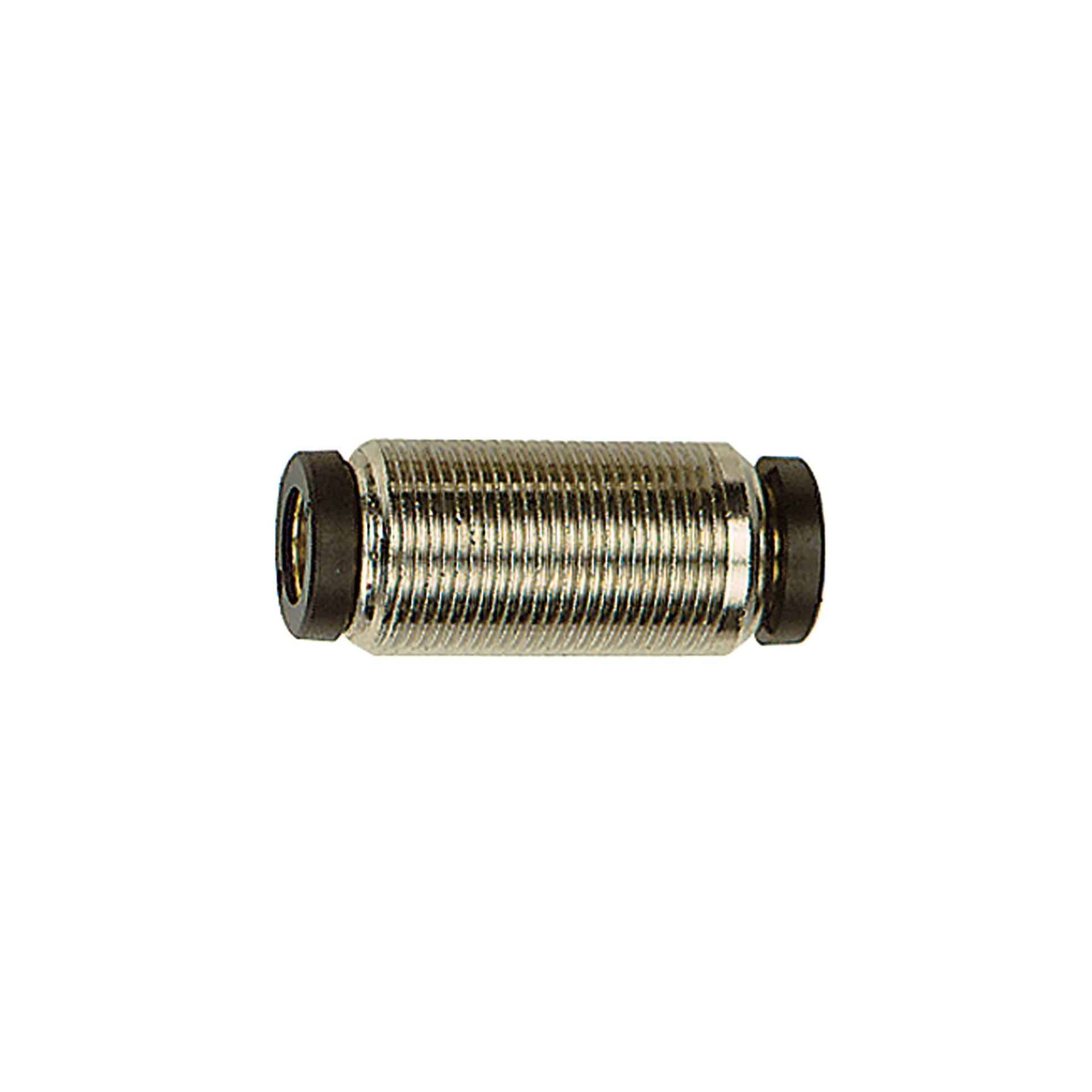

![[108726] RIEGLER Straight push-in connector »click-clock« M20x1, hose ext. Ø 12](/web/image/product.template/192623/image_128/%5B108726%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBclick-clock%C2%AB%20M20x1%2C%20hose%20ext.%20%C3%98%2012?unique=ee1bd27)
|
