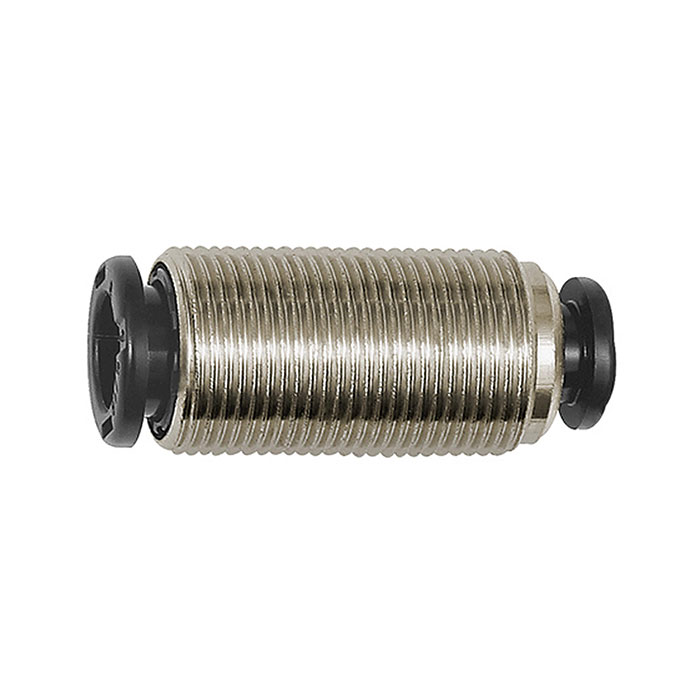

RIEGLER Straight push-in connector reducing »click-clock«, M15x1
Type number: 747.0608
EAN: 4047322209151
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight push-in fitting, reducing "click-clock", M15x1.0, male Ø 6/8, working pressure -0.99 to 16 bar, nickel-plated brass
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Hostaform |
| Clamping ring | Stainless steel |
| Recommended hose | PA, PU |
| Thread | M15x1.0 |
| for hose outer Ø2 | 8 mm |
| D | 4.5 mm |
| Execution | reducing |
| L1 | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| for hose outer Ø1 | 6 mm |
| Class name | PLUS |
