RIEGLER Straight push-in connector reducing »click-clock«, M20x1
Type number: 747.1012
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight push-in connector reducing "click-clock" made of nickel-plated brass - Type 747.1012
The RIEGLER straight push-in connector reducing "click-clock" M20x1.0 Ø10/12mm enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated brass with NBR seals. The operating pressure range is -0.99 bar to 16 bar. The operating temperature is between -20 °C and 80 °C. Connection thread M20x1.0 - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Hostaform |
| Clamping ring | Stainless steel |
| Recommended hose | PA, PU |
| Thread | M20x1.0 |
| for hose outer Ø2 | 12 mm |
| D | 8 mm |
| Execution | reducing |
| L1 | 40.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| for hose outer Ø1 | 10 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108728] RIEGLER Straight push-in connector reducing »click-clock«, M13x1](/web/image/product.template/192625/image_128/%5B108728%5D%20RIEGLER%20Straight%20push-in%20connector%20reducing%20%C2%BBclick-clock%C2%AB%2C%20M13x1?unique=0306958)
|
Type number: 747.0406 |
2.43 € | |
![[108729] RIEGLER Straight push-in connector reducing »click-clock«, M15x1](/web/image/product.template/192626/image_128/%5B108729%5D%20RIEGLER%20Straight%20push-in%20connector%20reducing%20%C2%BBclick-clock%C2%AB%2C%20M15x1?unique=8791e3a)
|
Type number: 747.0408 |
2.63 € | |
![[108730] RIEGLER Straight push-in connector reducing »click-clock«, M15x1](/web/image/product.template/192627/image_128/%5B108730%5D%20RIEGLER%20Straight%20push-in%20connector%20reducing%20%C2%BBclick-clock%C2%AB%2C%20M15x1?unique=f38e708)
|
Type number: 747.0608 |
3.08 € | |

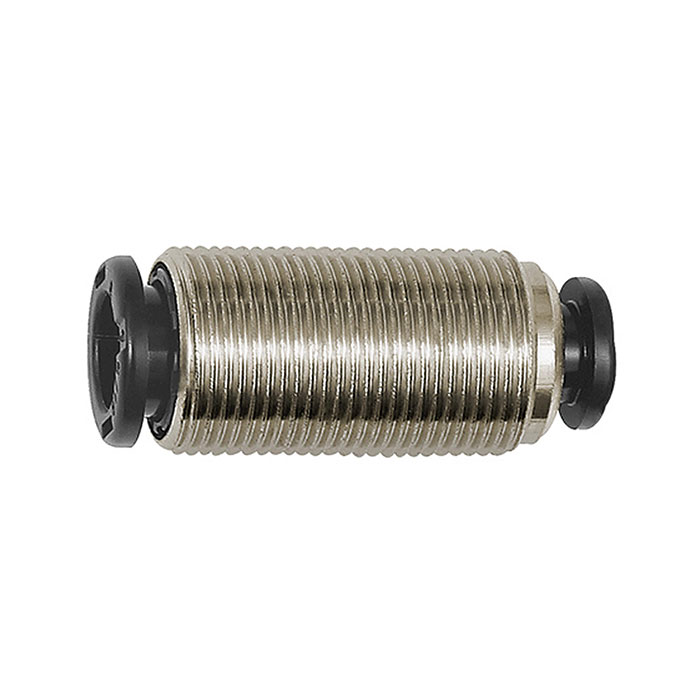

![[108731] RIEGLER Straight push-in connector reducing »click-clock«, M17x1](/web/image/product.template/192628/image_128/%5B108731%5D%20RIEGLER%20Straight%20push-in%20connector%20reducing%20%C2%BBclick-clock%C2%AB%2C%20M17x1?unique=ebc1eb9)
|
