RIEGLER Push-in T-fitting L-shape »metallica«, rotating, G 1/8 o.

Price:

3.90 €

RIEGLER Push-in T-fitting L-shape »metallica«, rotating, G 1/4 o.
RIEGLER Push-in T-fitting L-shape »metallica«, rotating, G 1/4 o.
4.18 € 4.18 €

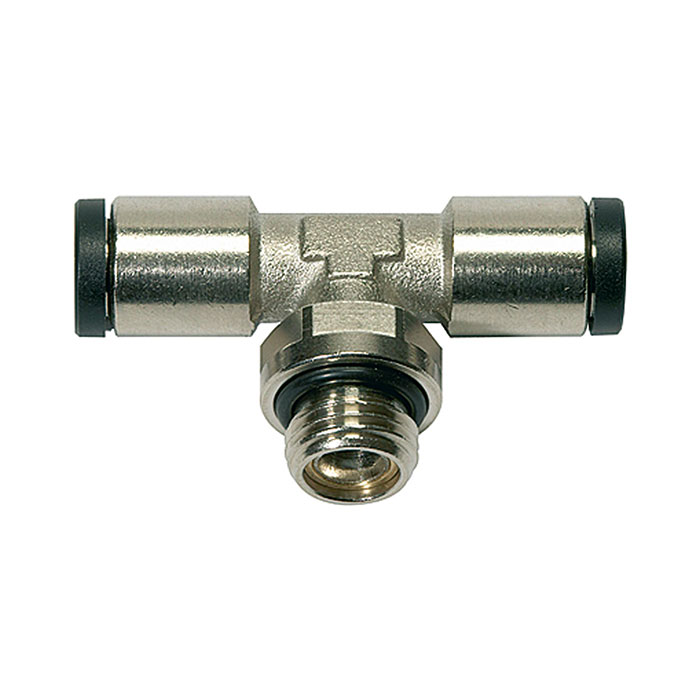

RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/8 o.
RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/8 o.
2.71 € 2.71 €

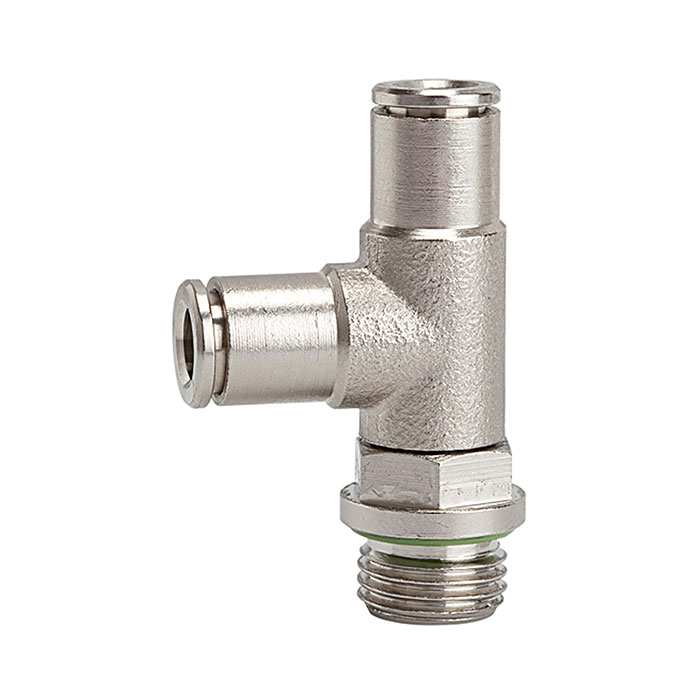

RIEGLER Push-in T-fitting L-shape »metallica«, rotating, G 1/8 o.

https://www.filcom-technik.de/web/image/product.template/192839/image_1920?unique=63aa96f

Type number: 862.018-8

EAN: 4047322279697

3.90 € 3.9 EUR 3.90 € VAT Included

6.84 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

108942

EAN :

4047322279697

Category :

Male Branch Tees

Weight :

0.04 kg

Push-in T-fitting L-shape "metallica", rotatable, G 1/8 a., outer tube Ø 8 mm, working pressure -0.98 to 16 bar, nickel-plated brass.

Medium Compressed air
Sealing material FKM
Series metallica
Working pressure min. -0.98 bar
Working pressure max. 16 bar
Material Nickel-plated brass
Area of application Compressed air systems, welding technology, vacuum
Operating temperature min. -20 °C
Operating temperature max. 150 °C
Solder ring Nickel-plated brass
Clamping ring Stainless steel
Recommended hose PA and PU
Thread G 1/8
SW 13 mm
for hose outer Ø 8 mm
Execution with O-ring

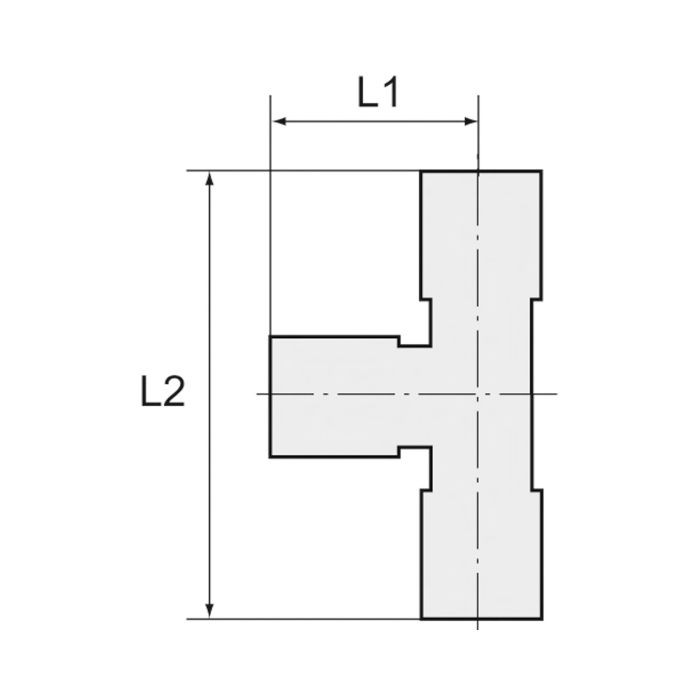

L1 23 mm
L2 43 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Class name PLUS
Construction method rotatable
