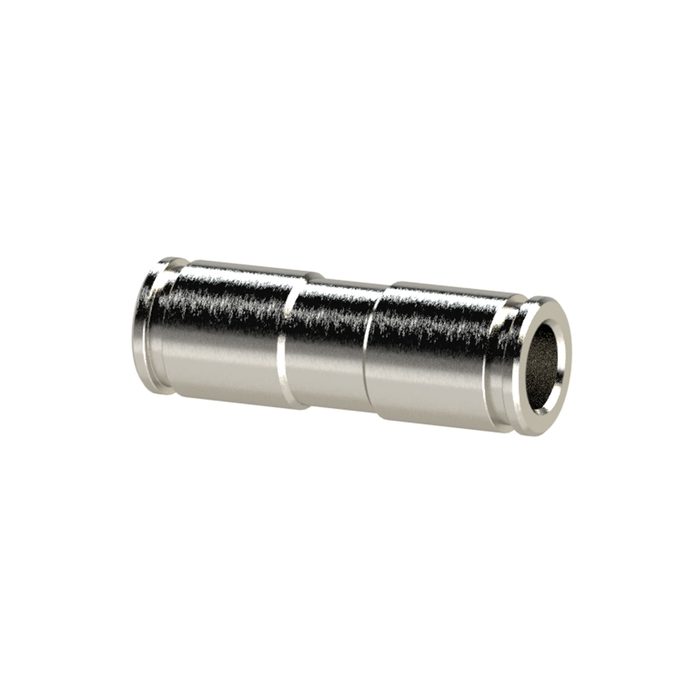

RIEGLER Straight push-in connector »metallica«, for hose exterior Ø 8 mm
Type number: 847.008
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

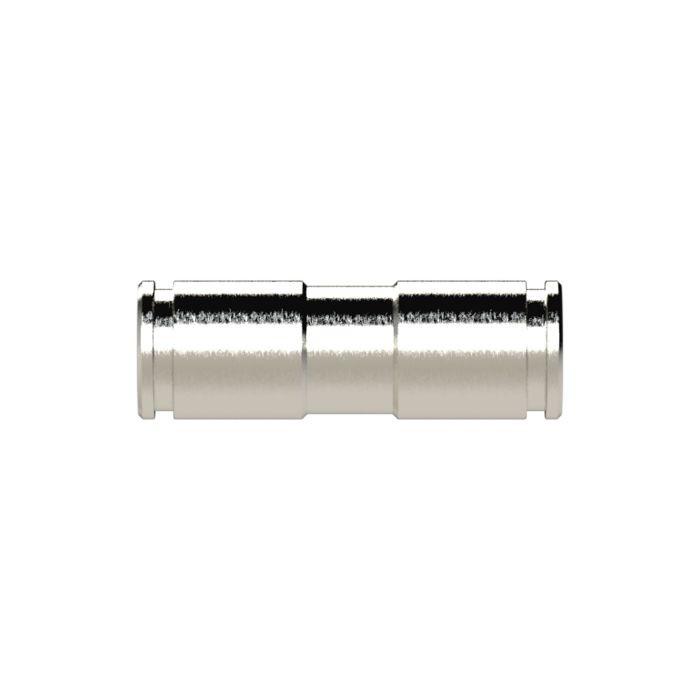

RIEGLER Gerade Steckverbindung »metallica« aus Messing vernickelt, für Pneumatikinstallation – Typ 847.008
Das RIEGLER Gerade Steckverbindung »metallica«, Schlauch-Außen-Ø 8, MS vern. ermöglicht die schnelle, werkzeugfreie Verbindung von Druckluftleitungen – sicher abdichtend und sofort belastbar. Das Gehäuse besteht aus Messing vernickelt mit Dichtungen aus FKM. Der Betriebsdruckbereich liegt bei -0.98 bar bis 16 bar. Die Betriebstemperatur liegt zwischen -20 °C und 150 °C. Geeignet für Druckluft. Schnelle Montage ohne Werkzeug – spart Zeit bei Installation und Umrüstung.
Einsatzbereich
Typische Anwendungsgebiete: Pneumatische Installationen, Maschinenverrohrung und Automatisierungstechnik.
| Medium | Compressed air |
| Sealing material | FKM |
| Series | metallica |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, welding technology, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Solder ring | Nickel-plated brass |
| Clamping ring | Stainless steel |
| Recommended hose | PA and PU |
| for hose outer Ø | 8 mm |
| L1 | 37 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108969] RIEGLER Straight push-in connector »metallica«, for hose exterior Ø 10 mm](/web/image/product.template/192866/image_128/%5B108969%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBmetallica%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2010%20mm?unique=9efb535)
|
Type number: 847.010 |
3.82 € | |
![[108970] RIEGLER Straight push-in connector »metallica«, for hose exterior Ø 12 mm](/web/image/product.template/192867/image_128/%5B108970%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBmetallica%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2012%20mm?unique=9efb535)
|
Type number: 847.012 |
4.70 € | |
![[108971] RIEGLER Straight push-in connector »metallica«, for hose exterior Ø 14 mm](/web/image/product.template/192868/image_128/%5B108971%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBmetallica%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2014%20mm?unique=9efb535)
|
Type number: 847.014 |
5.24 € | |
![[136779] RIEGLER Straight push-in connector »metallica«, for hose exterior Ø 16 mm](/web/image/product.template/207756/image_128/%5B136779%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBmetallica%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2016%20mm?unique=9efb535)
|
Type number: 847.016 |
18.36 € | |
![[108966] RIEGLER Straight push-in connector »metallica«, for hose exterior Ø 4 mm](/web/image/product.template/192863/image_128/%5B108966%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBmetallica%C2%AB%2C%20for%20hose%20exterior%20%C3%98%204%20mm?unique=9efb535)
|
Type number: 847.004 |
2.32 € | |
![[108967] RIEGLER Straight push-in connector »metallica«, for hose exterior Ø 6 mm](/web/image/product.template/192864/image_128/%5B108967%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBmetallica%C2%AB%2C%20for%20hose%20exterior%20%C3%98%206%20mm?unique=9efb535)
|
Type number: 847.006 |
2.53 € | |

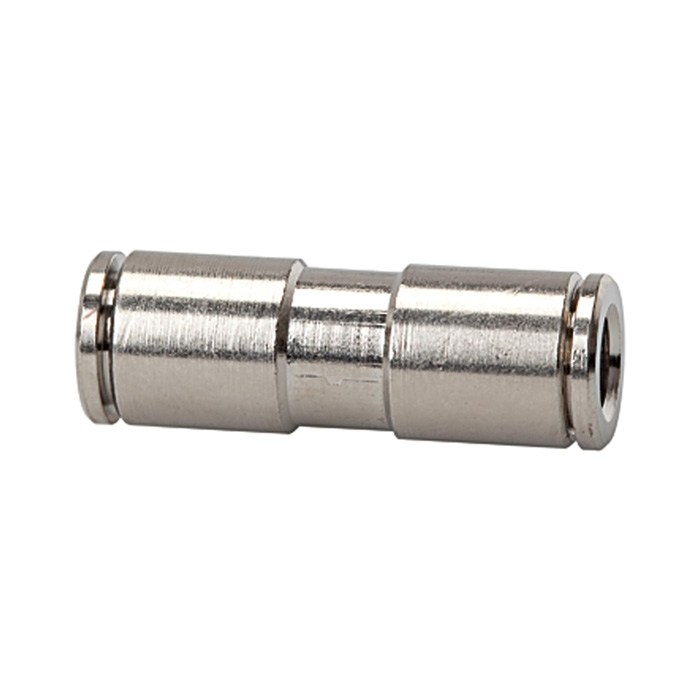

![[130081] RIEGLER Straight push-in connector "metallica", hose outer Ø 3, MS nickel-plated.](/web/image/product.template/273186/image_128/%5B130081%5D%20RIEGLER%20Straight%20push-in%20connector%20%22metallica%22%2C%20hose%20outer%20%C3%98%203%2C%20MS%20nickel-plated.?unique=9efb535)
|
Type number: 847.003 |
4.19 € | |
